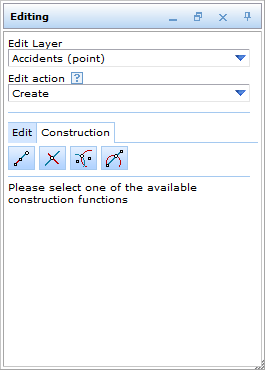

Construction Tools for creating Point Objects

Property

Description

Construction by Alignment

Tool for constructing by alignment using distance and orthogonal distance from a baseline.

Construction by alignment tool form

Intersection of two Lines

Tool for constructing points by intersecting two base lines.

Intersection of two Lines construction tool form

Circular Intersection

Tool for constructing a point using circular intersection.

Circular intersection construction tool form

Intersection of line and circle

This tool allows the determination of an intersection between a line and a circle. First you draw a baseline by setting two vertices. After drawing a circle (setting the centre and the radius), the intersection of line and circle can be calculated (button 'Calculate').

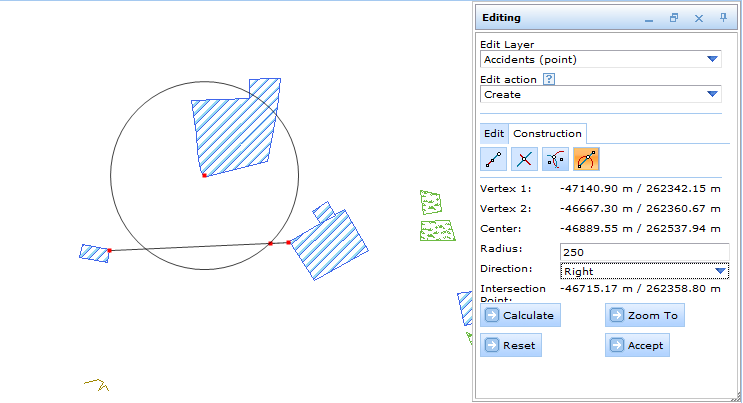

Tool - Intersection of line and circle (create point)

Note: Since the intersection of base line and circle provides two intercept points, the function 'Direction (Right/Left)' affords the opportunity to choose between these two intercept points.
