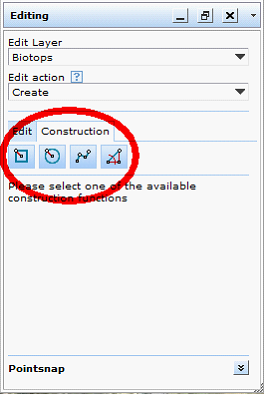

Construction Tools for creating Polygon or Line Objects

Property

Description

Generate Square

Tool for constructing a square polygon.

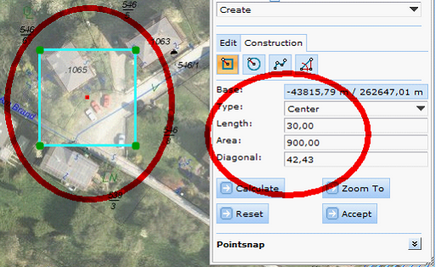

Generate Square construction tool form

Generate Circle

Tool for constructing an approximated circle polygon.

Generate Circle construction tool form

Orthogonal construction

Tool for creating orthogonal polygons – used for supporting digitizing e.g. building outlines from aerial images.

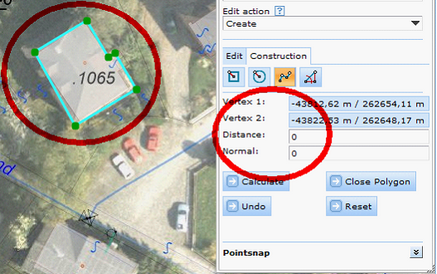

Orthogonal construction tool form

Construction by distance and/or angel

Construct points using a base point and X/Y distance or distance and angel.

Distance and/or angel construction tool form
