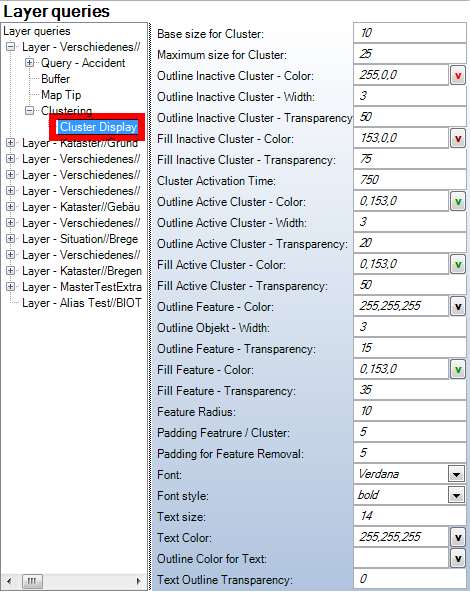

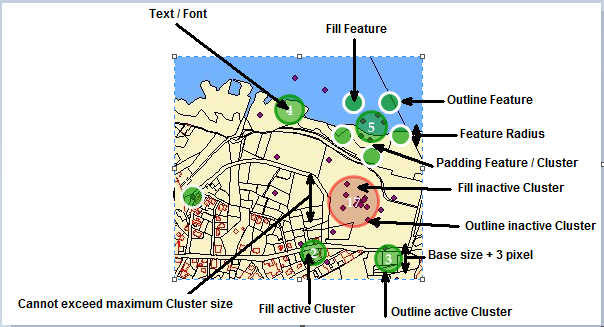

Cluster Display

Property

Description

Base size for Cluster

Minimal radius for a displayed cluster circle in pixels.

Maximum size for Cluster

Maximal radius for a displayed cluster circle in pixel.

Outline Inactive Cluster - Color

Outline color for inactive clusters.

Outline Inactive Cluster - Width

Outline width for inactive clusters in pixel.

Outline Inactive Cluster - Transparency

Outline transparency for inactive clusters [%].

Fill Inactive Cluster - Color

Fill color for inactive clusters.

Fill Inactive Cluster - Transparency

Fill transparency for inactive clusters [%].

Cluster Activation Time

Duration of animation at cluster activation in milliseconds.

Outline Active Cluster - Color

Outline color for active clusters.

Outline Active Cluster - Width

Outline width for active clusters in pixel.

Outline Active Cluster - Transparency

Outline transparency for active clusters [%].

Fill Active Cluster - Color

Fill color for active clusters.

Fill Active Cluster - Transparency

Fill transparency for active clusters [%].

Outline Feature - Color

Outline color for features.

Outline Object - Width

Outline width for features in pixel.

Outline Feature - Transparency

Outline transparency for features [%].

Fill Feature - Color

Fill color for features.

Fill Feature - Transparency

Fill transparency for features [%].

Feature Radius

Radius of a displayed feature circle in pixel.

Padding Feature / Cluster

Padding between feature and cluster when activated in pixel.

Padding for Feature Removal

Distance when an expanded cluster gets deactivated in pixel when moving the cursor out of the feature.

Font

Font for cluster text.

Font Style

Font style for cluster text.

Text Size

Default cluster text size (font size) in pixel.

Text Color

Text color for cluster text.

Outline Color for Text

Outline Color for cluster text. Empty value means no outline.

Text Outline Transparency

Transparency for text outline [%].
