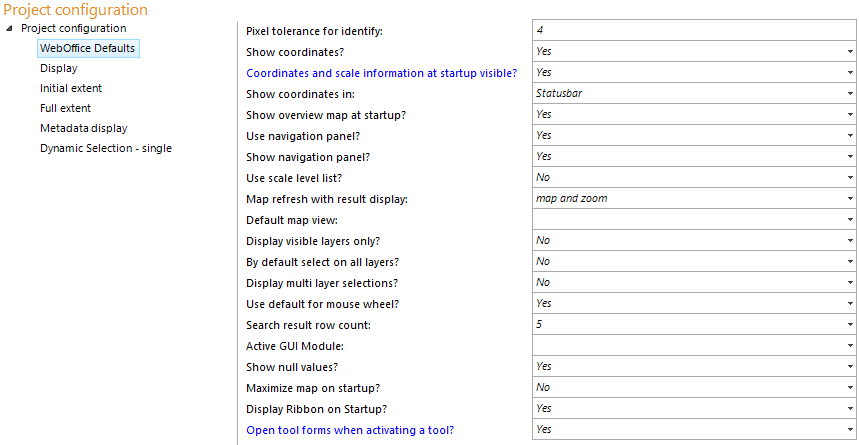

WebOffice Defaults

Property

Description

Pixel tolerance for Identify

Pixel tolerance when clicking into the map to identify objects. Around the click point a buffer is created and used for search (calculated by adding the defined number of pixels to the point for right, left, bottom and top).

Note: This parameter is also valid for

•Label Feature tool

•IDENTIFY tool (WebOffice map widget)

Show coordinates?

Specifies whether the current position coordinates of the mouse pointer are shown or not.

Note: This parameter is not valid for the WebOffice mobile client.

Note: In WebOffice flex the parameter also decides whether the coordinate system information will be displayed or not.

Coordinates and scale information at startup visible?

Coordinates and scale information are visible (Yes), or minimized (No)at startup in the WebOffice flex (flash) client.

Note: This is a WebOffice flex (flash) specific parameter.

Show coordinates in

Specifies whether the current coordinates are displayed in the status bar (default) or on the map.

Note: With current IE and Mozilla Firefox versions the browser status bar is often disabled by default. Therefore, think about showing coordinates in the map.

Note: The display of the status bar is browser-dependent and is used differently in current Browser versions (IE, Mozilla Firefox, etc.).

Show overview map at startup?

Specifies if overview map displays at start up (Yes) or not (No).

Note: See impact on WebOffice html client in chapter Overview Map.

Use navigation panel?

Specifies if the navigation panel is provided to the user (Yes) or is not displayed at all (No).

Note: See impact on WebOffice html client in chapter Navigation Control.

Show navigation panel?

Specifies if navigation panel is displayed at start up (Yes) or not (No).

Note: See impact on WebOffice html client in chapter Navigation Control.

Use scale level list?

Specifies if a list of scale levels can get displayed next to the navigation panel (Yes) or not (No, default value). Works only in project configurations with fixed level of detail and when the navigation panel is used.

Note: See impact on WebOffice html client in chapter Navigation Control.

Map refresh with result display?

Specifies in which way the map will be refreshed when displaying a result:

•map and zoom

•map and pan

•no map update

Note: The user may change behavior manually in the WebOffice html client. See chapter Queries for more information.

Default map view

Specifies the map view to be used for initial map display. Especially useful if no Table of Content (TOC) is configured.

Display visible layers only?

Defines if all (No) or only the layers actually visible in the map (Yes) may be selected in Identify, Select, MapTip and List of Filter Layers tool form.

Note: See impact on WebOffice html client in chapter Select.

By default select on all layers?

Specifies whether to preselect Visible layers for selection and info tools by default.

Note: In order for a certain topic to be selected by default as a selection topic, this option must be set to False and the corresponding topic must also be configured as the default search in the General Settings.

Display multi layer selections?

Specifies whether to graphically display multiple layer selections. If Yes is configured, a button Display All Features is shown below the feature summary window of a spatial selection.

Note: See impact on WebOffice html client in chapter Feature Summary.

Use default for mouse wheel?

Specifies whether to zoom in when moving the mouse wheel towards the map display (Yes) or zoom out (No).

Note: Due to the ESRI JS API-Integration in WebOffice flex and WebOffice core, this configuration is not available in those clients.

Search result row count

Specifies the height of the search result window (unit is count of result rows).

Note: See impact on WebOffice html client in chapter Search Result.

Note: In the WebOffice mobile client this parameter will also regulate the number of saved suggestions if parameter Persist client state? is set to Yes".

Active GUI Module

Defines which gui module is displayed initially:

•Table Of Content

•Queries

•Legend

•Layer Filter

Show null values?

Specifies whether null values are to be shown (Yes) in result display or not (No)

Note: If set to No then the field will not be displayed at all in case of a single hit (MapTip, etc.). If set to Yes then the field will be displayed and the NULL value will be represented by a language specific string (resource RESULT.NULLVALUE).

Maximize map on startup

Specifies whether to start the WebOffice core client with a maximized map, i.e. menus are collapsed.

Note: This configuration parameter is WebOffice core specific.

Display ribbon at startup?

Specifies whether to display the WebOffice core ribbon opened at start of the project ("Yes") or not ("No").

Note: This configuration parameter is WebOffice core specific.

Open tool forms when activating a tool?

Specifies whether the tool forms will be opened by default when activating a tool.

Note: This is a WebOffice flex specific parameter.
