The Navigation Control, the easiest way for user to navigate in the WebOffice html client, is enabled and activated by default. See below an explanation of the buttons.





1. Pan north, south, east or west

2. Show last extent

3. Show full extent

4. Show previous extent

5. Zoom in to current extent

6. Change scale using slider

7. Zoom out from current extent

8. Display the current GPS position of your device if allowed/configured

9. Maximize/minimize the navigation control

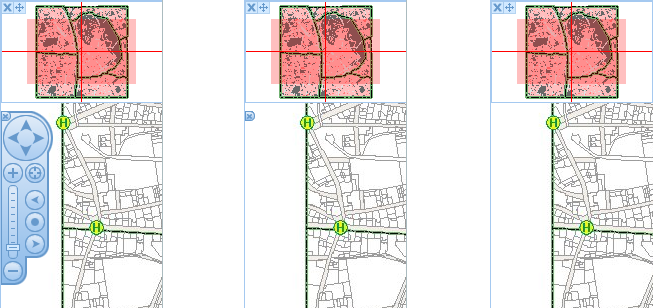

By configuration parameters you can decide whether the navigation panel should be enabled and maximized, enabled but minimized, or completely disabled in your WebOffice 10.9 SP2 project.

Note: See chapter WebOffice Defaults for details.





Display Current GPS Position

In case you have configured the tool geolocation, an additional button is available in the navigation panel. Click left to zoom to your current position, if available. Click right to enable/disable permanent positioning.

Note: See chapter Geolocation for information about the tool configuration.







Scale Levels

With project configurations that use discrete scale levels it is possible to show a list of scale levels next to the navigation panel. It is also necessary that the navigation panel is enabled and activated. As soon as you move your mouse cursor over the navigation panel the list of scale levels will appear and fade away again after some time.

Note: See chapter WebOffice Defaults for details.
