ArcGIS Server Vector Tile Service

Previous pageReturn to chapter overviewNext page

Since WebOffice 10.8 SP2 it is possible to integrate Vector Tile Services into WebOffice flex. In contrast to cached Map Services Vector Tile Services are not based on raster technology, but on vectors. Therefore they are calculated faster and need less disk space.

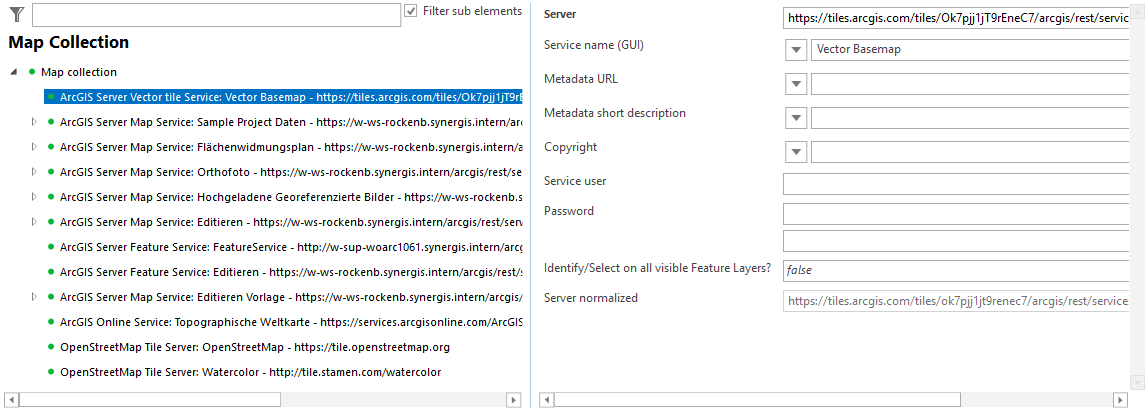

ArcGIS Vector Tile Service

ArcGIS Vector Tile Service





You can either use your own Vector Tile Services or the ESRI Vector Basemaps in WebOffice 10.8 SP2.

Note: You will find an introduction for publishing Vector Tile Services in ArcGIS online help

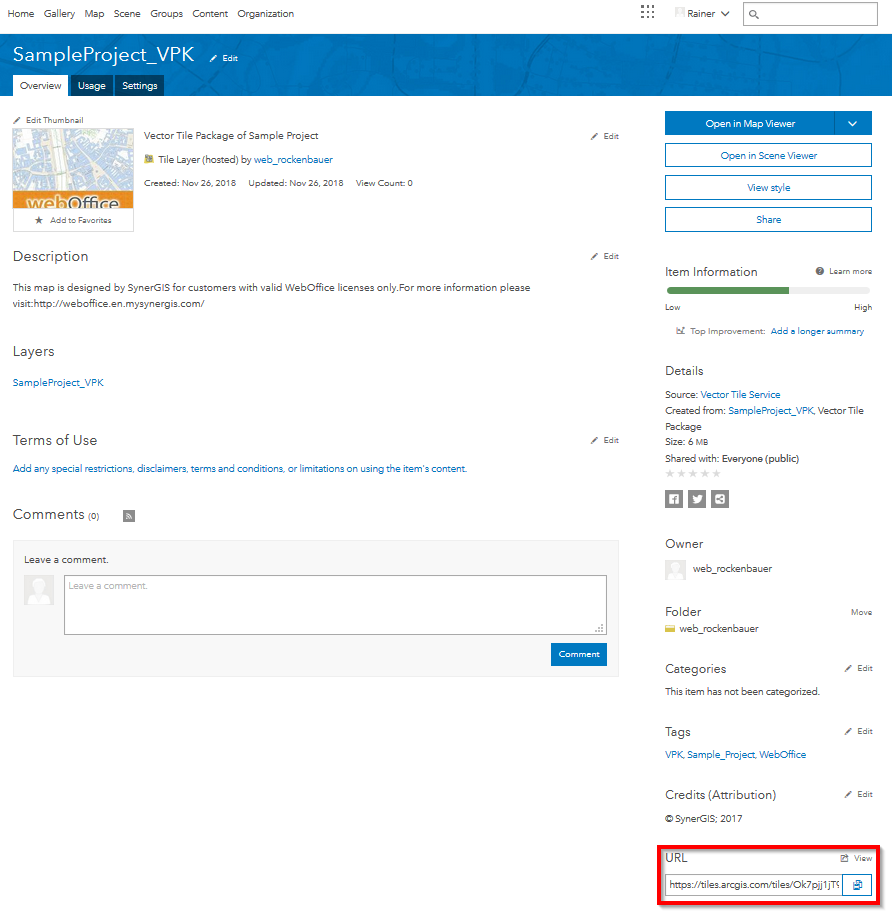

First of all open the distinct Vector Tile Service and copy the URL (see Screenshot below).

Note: Please be aware, that ESRI Vector Basemap 'Styles' can not be handed over to WebOffice yet.



woas_ArcGIS_Vector_Tile_Service_2

Usage of the URL for WebOffice





Property

Description

Server

ArcGIS Server vector tile service.

If the service is secured, the user must log on to the client before using the service (named user).

The Vector Tile Server Endpoint URL must be specified.



Note: If you connect to an ArcGIS server or use an ArcGIS online service, make sure that you do not violate Esri Inc. rights of use!

See https://developers.arcgis.com/terms/

and https://www.esri.com/legal/software-license

Service name (GUI)

Service name of Map Service displayed in the GUI

Metadata URL

Configure a reference to a meta data document (must be available via HTTP) as URL.

Note: You may configure the unique Metadata document identifier (UUID) of a Catalog Service (CSW 2.0) here. In this case you must configure the SOAP interface of the Catalog Services in Metadata Display.

Metadata short description

Provide a short description for the meta data (line breaks with "\n").

Copyright

Service related copyright information that is displayed on the client and on the print.

Note: The service-related copyright information is only displayed if the map element  Copyright is configured.

Note: For more information on how to use this attribute, see Template (File Name) and WebOffice ePaper Template (File Name).

Service user

User login for accessing the ArcGIS Online service (ArcGIS service user).

Password

Password of user accessing ArcGIS Online service.

Identify/Select on all visible Feature Layers?

When using the option All visible Layers in the Client all Layers visible in the current scale and set to visible are taken into consideration.

A Layer configuration is not required, the ArcMap Layer Properties get used instead (Layer Name, visible Fields, Field order).

Server normalized

Normalized server URL
