Configure a List of Projections to provide the user specific defined Projections for several purposes:

Note: The List of Projections and Projections have to be defined for each of the listed tools individually.

Important note: It is not possible to include a projection several times in the list of projections. If a projection is entered several times, e. g. to use different transformations (different transformation code / string), only the first configured transformation is used. It is always recommended to use the same transformation code / string if a projection occurs in the list of projections in different tools. If problems occur, the WebOffice log file displays a corresponding message.

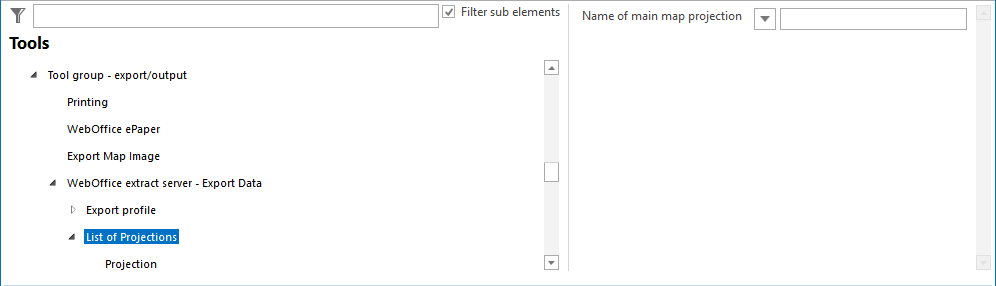

List of projections configuration

Property

Description

Name of main map projection

Name of geographic projection of main map.

Note: When configuring a List of Projection element for the Search/Reproject Coordinates tool the value entered in this field will also provide the name of main map projection displayed in the status bar/map if Show Coordinates is set to "true".

List of Projections configuration

Below the list of projections, configure Projection element to specify projections parameters for target projections. Provide EPSG code if available. Provide projection parameters otherwise.

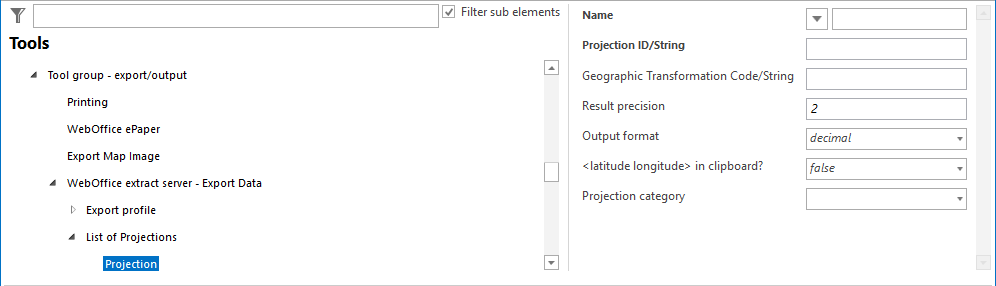

Projection configuration

Property	Description
Name	Projection name appearing in the user interface. Note: The herein used project description is the same as the one used to fill in the Non-Configurable Function Field "syn_crs" in a print template.
Projection ID/String	Provide EPSG code if available. Provide projection parameters otherwise (Easiest way is to copy it out of the .prj file).
Geographic Transformation Code/String	Geographic transformation code. Codes are listed in <ArcGIS_Desktop_Installation_Folder>\Documentation\geographic_transformations.pdf or you may use the VertiGIS Projection Helper
Result precision	Specifies how many digits after the comma should be used for display of double values.
Output format	Specifies output format for coordinates •"decimal" output as double - the number of digits is defined by the "Result precision" •"degree" output in degrees (DD°MM'SS.NN'') - the number of digits of the seconds is defined by the "Result precision" •"degree_decimal_minutes" provides the output in (GG°MM,NN'') format. The number of decimal digits is defined by the "Result precision". Note: To achieve a similar accuracy as in the 'degree' format, a larger number of decimal is required.
<latitude/longitude> in clipboard?	Specifies whether the coordinates get formatted <latitude/longitude> (true) or <longitude/latitude> (false) in the clipboard. Note: Note that e.g. Google Maps uses the format <longitude/latitude>. Note: This parameter has only impact with geographic coordinate systems (e.g. WGS84).
Projection category	Group category for projection lists displayed for the following tools: Search/reproject coordinate

Projection properties

Note: See the HowTo chapter Configure Projections for a detailed description of a projection configuration.

Note: See chapter Search/Reproject Coordinates for details about the tool configuration in WebOffice author standalone.

Note: See chapter Coordinate Search for details about projections in combination with the coordinate search tool in the WebOffice core client.

Note: See chapter Upload Local Geodata for details about the tool configuration in WebOffice author standalone.

Note: See chapter Add Local Geodata for details about projections in combination with the add local geodata tool in the WebOffice core client.

Note: See chapter WebOffice extract server for details about the tool configuration in WebOffice author standalone.

Note: See chapter Export Profile Raster Data for details about the tool configuration in WebOffice author standalone.

Note: See chapter Print for details about the tool configuration in WebOffice author standalone.

Note: See chapter Data Export for details about projections in combination with the data export tool in the WebOffice core client.

Note: See HowTo chapter Export Profiles Supporting Various Projections for a detailed description how to handle different projections when using WebOffice extract server functionality.

Note: See chapter Editing for more information about the use of vertex geometry dialog with various projections in the WebOffice core client.

Note: Deleting and then adding the node List of Projections or single projections may change the projection ID in the XML file. This changed ID must also be adjusted in the GWR Integrator tool, if configured.
