Navigation:  WebOffice author standalone > Edit project Menu > WebOffice Category > Tools > Tool Group Add Services > ArcGIS Service

Configure the ArcGIS Service tool to give users the option to add ArcGIS Online MapServices into the WebOffice 10.8 SP2 project. Either configure only the tool, so the user can enter the URL himself or predefine a list of ArcGIS Online services to be chosen from.

Note: An ArcGIS MapService that already exists in the Map Collection cannot be configured in the list of ArcGIS Online/Server services too.

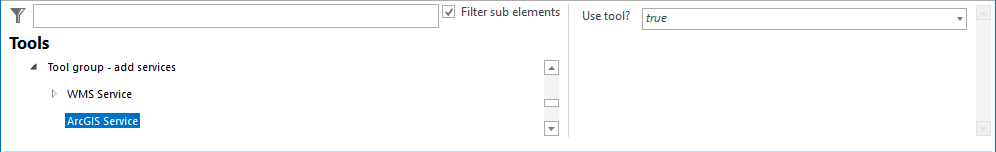

Add ArcGIS Service tool properties

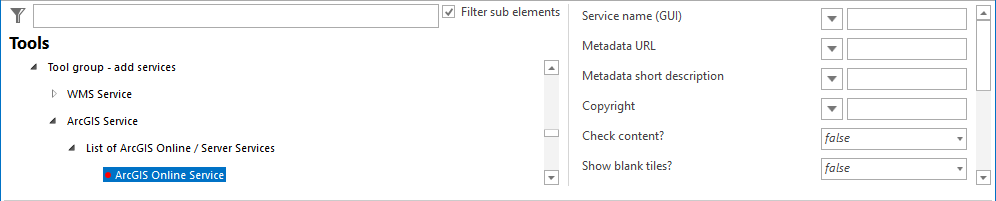

If you want to provide a list of predefined ArcGIS MapServices the user is to be allowed to choose from, configure the List of ArcGIS Services element that can contain one or multiple ArcGIS Services. A list of predefined services may be comfortable for the user, if he has to use specific services frequently. You can add both dynamic and cached ArcGIS Services into a dynamic project.



Note: Full product support only for services from version 10.1 on.

Note: If the service is secured, the user has to enter credentials before using the service in the client.

Note: The particular service has to allow the operation "query".





In this list you can add an

•ArcGIS Server Map Service

•ArcGIS Online Service (REST)



Note: See chapter Add AGS Online Service for details about adding ArcGIS Online services in the WebOffice core client.

Note: See chapter Add ArcGIS Online Service for details about adding ArcGIS Online services in the WebOffice mobile client.
