Map Assignment

Previous pageReturn to chapter overviewNext page

Configure Map Assignment elements if you want support different map views in your WebOffice ePaper reports.

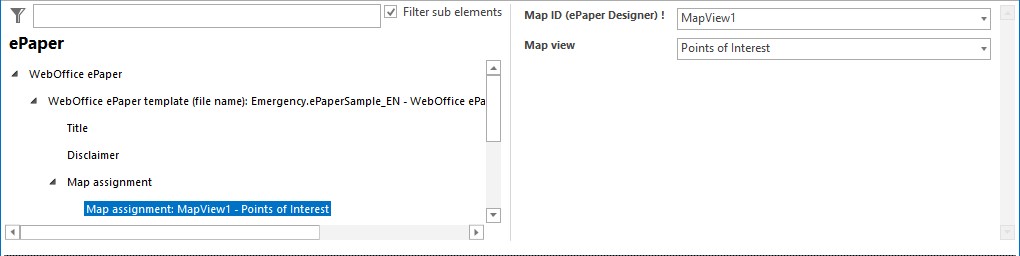

Map assignment configuration

Map assignment configuration



Property

Description

Map ID (ePaper Designer)

Specifies the ID of the map.

Note: This information has to retrieved from the ePaper Designer. See the figure below for more information.

Map view

Choose the WebOffice map view to be assigned with the map ID above from the list of configured map views of the current project.

Map assignment properties



In WebOffice 10.8 SP2 it is possible to generate a dynamic WebOffice ePaper report supporting different map views. Therefore, you have to configure an adequate template (.mrt). With WebOffice ePaper author, ePaper Designer) you can configure several feature maps on one template. For each feature map you can set a map ID/map view in the properties. It is possible to configure six map views. The current map will be used to display the current map image from the WebOffice core client.

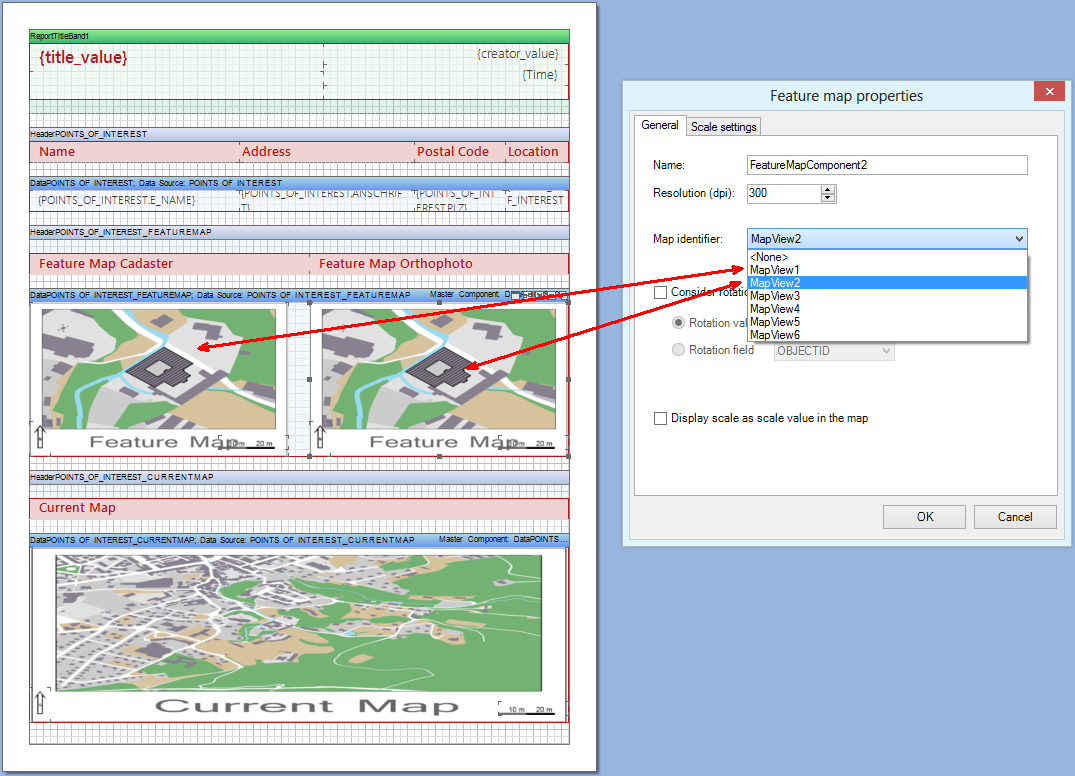

Configure map identifiers in the ePaper Designer

Configure map identifiers in the ePaper Designer



Note: See chapter ePaper for details about the tool configuration in WebOffice author standalone.

Note: See chapter WebOffice ePaper Template (File Name) for details about the configuration of WebOffice ePaper templates.

Note: See ePaper author User Manual for details about working with WebOffice ePaper author.

Note: See chapter Search Result Toolbar for information about the Generate ePaper report button in the WebOffice core client.
