Add geotagged images tool in the WebOffice html client

Add geotagged images tool in the WebOffice html client



The Add Images tool enables users to

add local geotagged images

edit attributive information



Browse to the image or ZIP file containing multiple images to be uploaded. Other available editing fields are provided by the administrator and only have to be filled if they are marked as mandatory. Start the uploading process by clicking the button Upload Image.



Add geotagged images tool form in the WebOffice html client

Add geotagged images tool form in the WebOffice html client



The uploaded image will be saved in the specified folder and the according feature class will be updated, i.e. one or more new objects are created and the map gets updated automatically.

Note: Use the attribute field "exif_image_dir" to display the symbol rotation depending on the image direction.

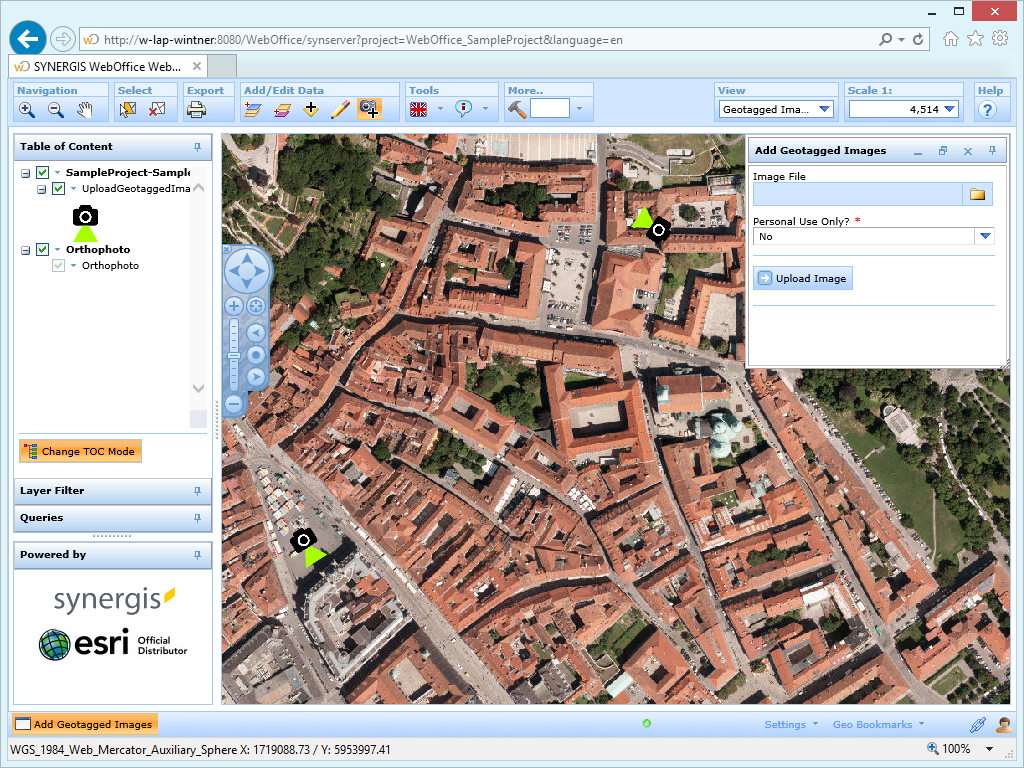

Add geotagged images in the WebOffice html client

Add geotagged images in the WebOffice html client



If you configured a Hyperlink on the search result view of the respective layer you can immediately view the uploaded picture inside the map via MapTip.

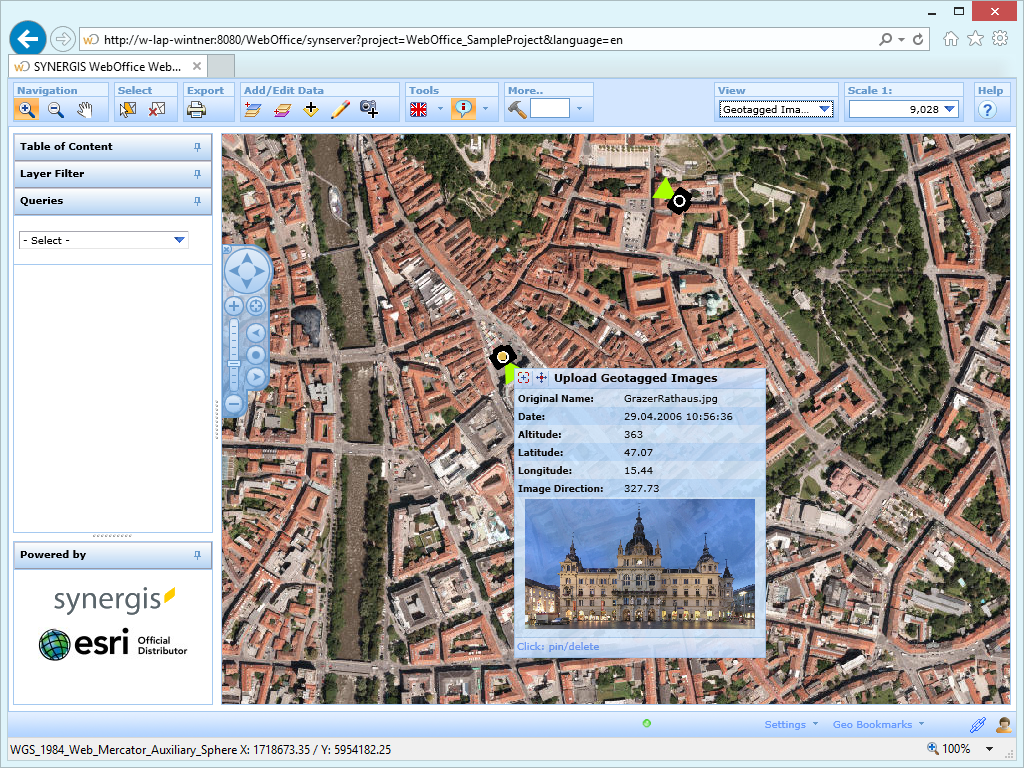

Show geotagged images via MapTip/hyperlink in the WebOffice html client

Show geotagged images via MapTip/hyperlink in the WebOffice html client



Note: When using Apache Tomcat Connector, consider Settings for Request Filtering when uploading large image files (> 20 MB) via Internet Information Services (IIS).

Note: See chapter Add Images for details about the tool configuration in WebOffice author.
