Predefined Net Traces |

|
Predefined Net Traces |
|
With the Predefined Net Traces the respective network-IDs and options for net trace (definition of start features, barriers and results) are configured. If more than one net trace is specified, the WebOffice 10.7 SP1 client will provide a value list dialog.
Note: In order to display net trace results, the resulting layers must have a respective search configuration configured.

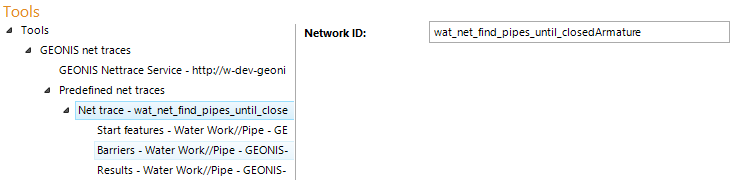

GEONIS net trace configuration
Property |
Description |
Network-ID |
Specifies the unique network ID ("networkid"). Note: Open the GEONIS net tracer service URL in the browser to get the network ID. |
GEONIS net trace properties

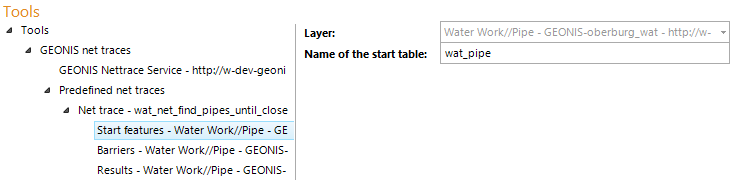

GEONIS net trace start feature configuration
Property |
Description |
Layer |
Specifies the layer ID of the start features in the net trace, in order to assign them to a map service layer. |
Name of the start table |
Specifies the name of the start table ("tableName") that is used in the service request of the GEONIS server (Example: ele_station) Note: Open the GEONIS net tracer service URL in the browser to get the name of the start table. |
GEONIS net trace start feature properties

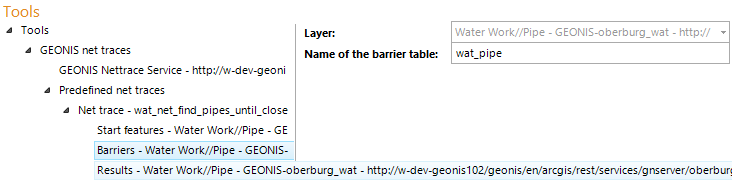

GEONIS net trace barriers configuration
Property |
Description |
Layer |
Specifies the layer ID of the barriers in the net trace, in order to assign them to a map service layer. |
Name of the barriers table |
Specifies the name of the barriers table ("tableName") that is used in the service request of the GEONIS server (Example: ele_station) Note: Open the GEONIS net tracer service URL in the browser to get the name of the barriers table. |
GEONIS net trace barriers properties

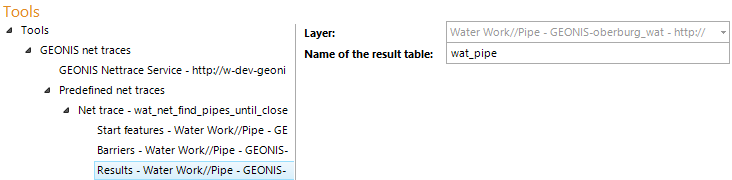

GEONIS net trace results configuration
Property |
Description |
Layer |
Specifies the layer ID of the results in the net trace, in order to assign them to a map service layer. |
Name of the result table |
Specifies the name of the results table ("tableName") that is used in the service request of the GEONIS server (Example: ele_station) Note: Open the GEONIS net tracer service URL in the browser to get the name of the results table. |
GEONIS net trace results properties
Note: Several result layers can be added.
Note: Find more details for GEONIS parameters in the GEONIS user manual.
Note: See chapter GEONIS Nettrace Service for details about the configuration of a nettrace service.
Note: See chapter Predefined Net Traces for details about the configuration of predefined net trace options.
Note: See chapter GEONIS Netzverfolgung for details about the usage of GEONIS net trace in the WebOffice core client.
