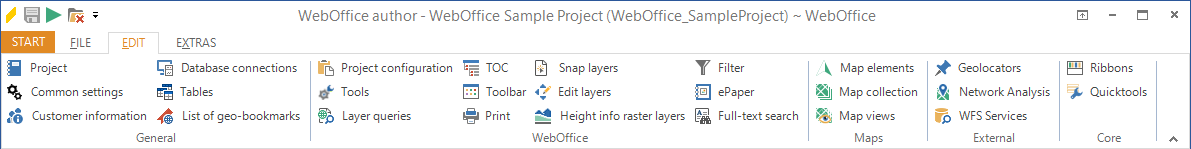

Edit Menu

Icon

Menu Item

Description

Project

Used for configuring properties of the WebOffice 10.7 SP1 project itself like e.g. the name displayed in the WebOffice 10.7 SP1 clients.

Using user name and password, a simple access restriction can be configured.

Common Settings

In the common settings important properties like the e-mail of the system administrator can be configured.

Customer Information

Using Customer information names, logos and URL's displayed in the WebOffice 10.7 SP1 clients can be configured. This is used to quickly implement some aspects of corporate identity/corporate design guide.

DB Connections

If you need direct access to relational database tables (e.g. for querying tables, for relating layers with tables via join (1 : 1) or relate (1 : N) relation or for using lookup tables) then you can configure JDBC database connections here.

Note: Configuring a database connection does not mean installing the JDBC database driver. This has to be done separately by the system administrator on the WebOffice 10.7 SP1 application server machine.

Tables

Used for configuring relational tables you want to use in your WebOffice 10.7 SP1 project (e.g. for querying tables, for relating layers with tables via join (1 : 1) or relate (1 : N) relation or for using lookup tables).

List of geo bookmarks

Geo-bookmarks enable administrators to specify a set of geographical extents and name them. Users are able to choose from the list of geo-bookmarks.

Project Configuration

Used for configuring the most important aspects of a WebOffice 10.7 SP1 project, like certain default values, extent information etc.

Tools

Here you can configure which tools will be available in the WebOffice 10.7 SP1 clients and for each tool you can specify certain details or required base information.

Layer Queries

Here you can configure all layer specific properties related to query, selection, result display etc. This entry point is perhaps the most often used one.

Table of Content (TOC)

Used for configuration the table of content for controlling the map collection of this WebOffice 10.7 SP1 project.

Toolbar

Define if tools are prioritized or not, meaning whether they should be placed in the toolbar at prominent position or located under More tools...

Print

Entry point for configuring print templates, output formats and template specific function fields.

Snap Layers

Use this for configuring snap layers to use for exact measuring and exact usage of selection tools.

Edit Layers

Configure edit layers to provide editing functionality for your WebOffice 10.7 SP1 project. Define which layers, fields are editable and which edit actions are to be available.

Height Info Raster Layers

Used for configuration of raster layers containing elevation data: elevation, slope and aspect.

Filter

Entry point to create filter condition for your WebOffice 10.7 SP1 project.

ePaper

Entry point for configuring WebOffice ePaper templates and template specific function fields.

Full-Text Search

Define here all project specific settings regarding the full-text search. Where should the full-text search be located in the WebOffice 10.7 SP1 project, maximum suggestions, etc.

Map Elements

Used for configuring all map elements like map services in the Map Collection, ArcGIS Server Geometry Service, Overview map service, ArcGIS Server Output Service and graphic elements that get displayed on top of the map like North arrow, Scale bar, Copyright etc.

Map Collection

Used for configuring map services included in the Map collection and properties of the Map collection itself.

Map Views

Use this for configuring Map views (Representation models).

Geolocators

Geolocators provide a simple one line address search comparable to Google or Microsoft Bing address searches.

Network Analysis

WFS Services
