WebOffice clients > WebOffice map widget > WebOffice map widget Testcontainer > WebOffice map widget Testcontainer request > Tools

In order to select objects by drawing an area please activate the tool Select Area.

Input parameter	Description
Query	External layer ID on the WebOffice 10.5 SP2 query layer. Note: The layer must be identifiable/selectable.
Return Key	Specifies the field to be returned in the response. Note: It is possible to select more return keys by using the Ctrl key on the keyboard.
Callback	Specifies a JavaScript callback function.
set as startmode	By checking this parameter the tool will initially be activated after refreshing the map widget.

Input parameter - Select Area in WebOffice map widget testcontainer

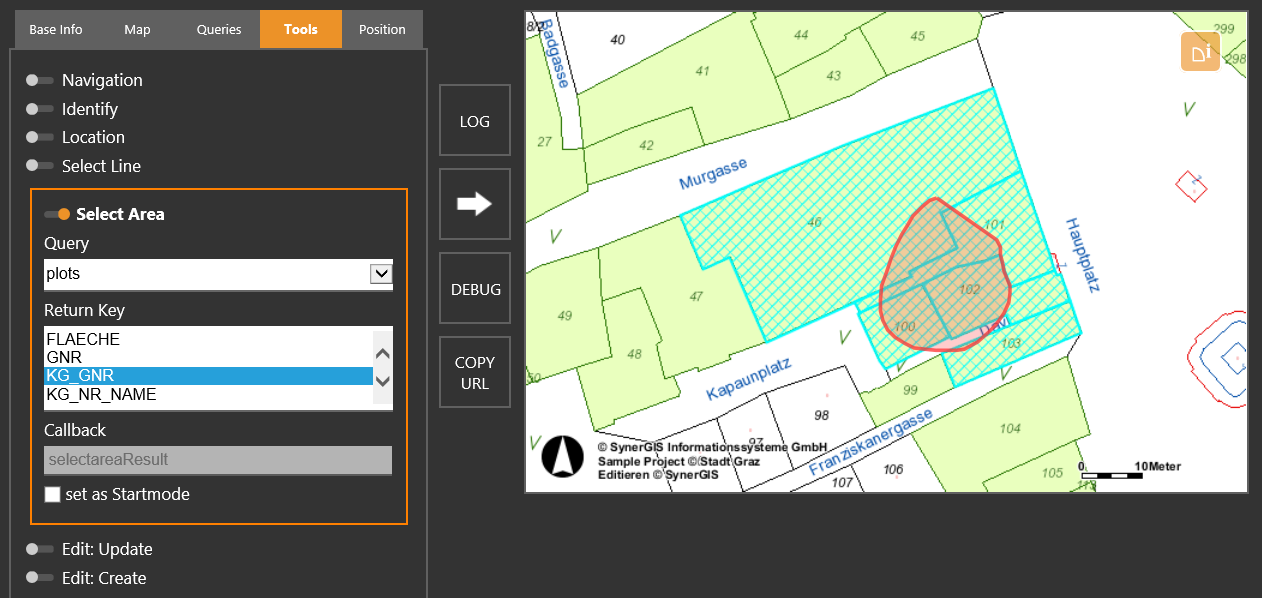

WebOffice map widget testcontainer - Select Area

Note: Please find more details about the configuration of the selection tool in WebOffice author in the chapter Select - Polygon.
