With the WebOffice map widget testcontainer it's possible to generate WebOffice map widget requests quick and easy. For developers it's recommended to use this testcontainer where all parameters can be checked or unchecked in order to generate the required WebOffice map widget request.

Note: The WebOffice map widget testcontainer is not supported in IE8.

The WebOffice map widget testcontainer can be opened via the Weboffice Administration Page (Application Tab) or directly via the URL http://<server name>[:<port>]/<WebOffice application name>//client_mapwidget/testcontainer.jsp.

Note: When calling the WebOffice map widget testcontainer via the WebOffice Administration Page, the input parameters will automatically be reloaded in dropdown fields. When calling the WebOffice map widget testcontainer directly via the URL, the input parameters must manually be typed in.

The WebOffice map widget testcontainer is devided into two parts.

WebOffice map widget Testcontainer request: On the left it is possible to check all parameters needed to generate the WebOffice map widget request.

WebOffice map widget Testcontainer response: On the right the response (map and callbacks) of the WebOffice map widget request will be displayed.

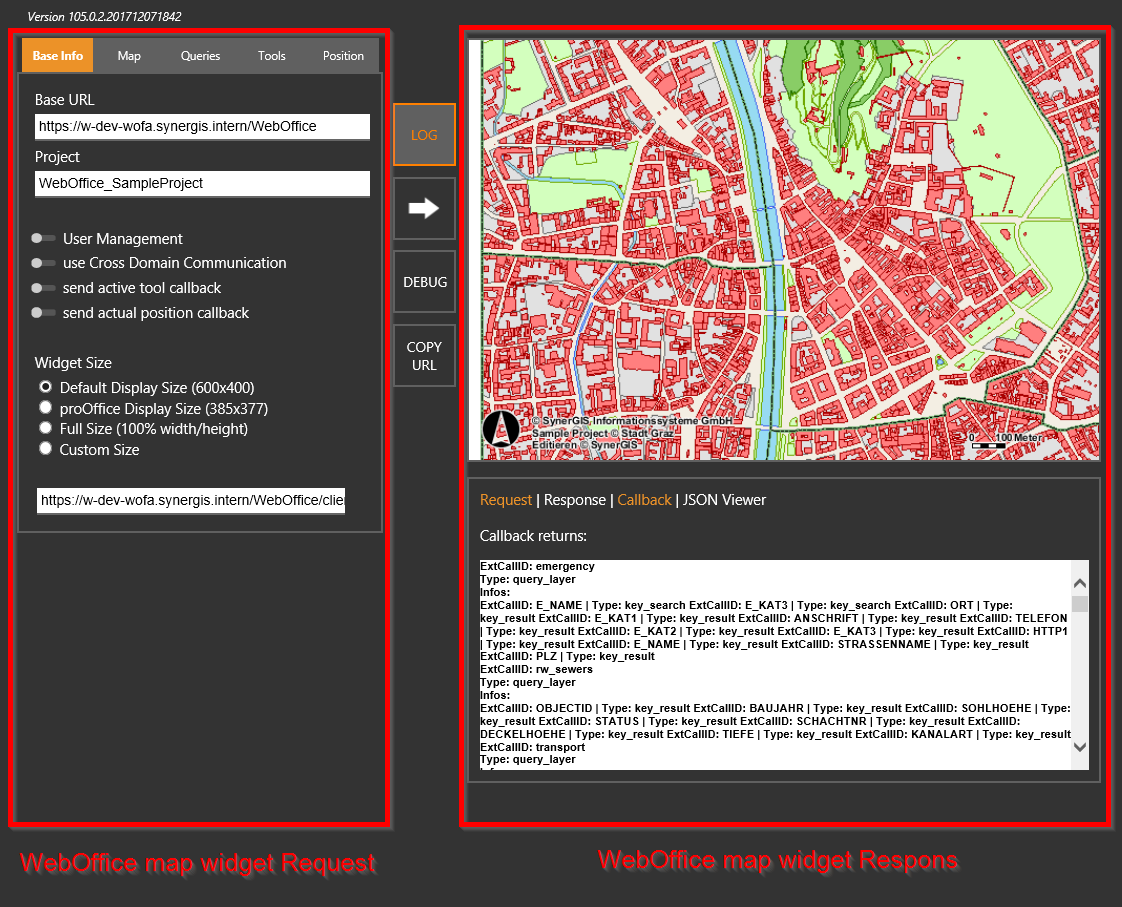

WebOffice map widget testcontainer

The buttons between the two parts (request and response) have several functions.

Button	Description
	Opens the log window of the WebOffice map widget testcontainer.
	Refreshes the map of WebOffice map widget. Note: You can do a refresh also with the ENTER key on the keyboard.
	Activates the debug mode in the map of the WebOffice map widget.
	Copies the WebOffice map widget request URL to the clipboard and writes the URL in a text field in the map widget Request.
