Click x to start measuring an area in the WebOffice flex client. Depending on your WebOffice 10.5 SP2 project configuration the tool form will appear differently:

•Measure with predefined styles

•Measure with style dialogue

Start your drawing by clicking into the map, finish with a double click or by clicking ^. If you click k while drawing, any valid unfinished measurements (any polygon with at least three vertices) will be finished. Click "Clear" to remove any existing drawings. Click "Send Email" to open your Mail client and send a link with the current drawings.

Measure with Predefined Styles

A tool dialog will open that lets you choose the predefined markup style for your drawing. Additionally, decide whether to display measurements in the map or just the drawing.

Note: Predefined markup styles will define the stroke color, fill color, text color, text background color, line width and text size.

Note: SynerGIS recommends to favor this option instead of the style dialogue since it is easier for the user and reduces user interface complexity.

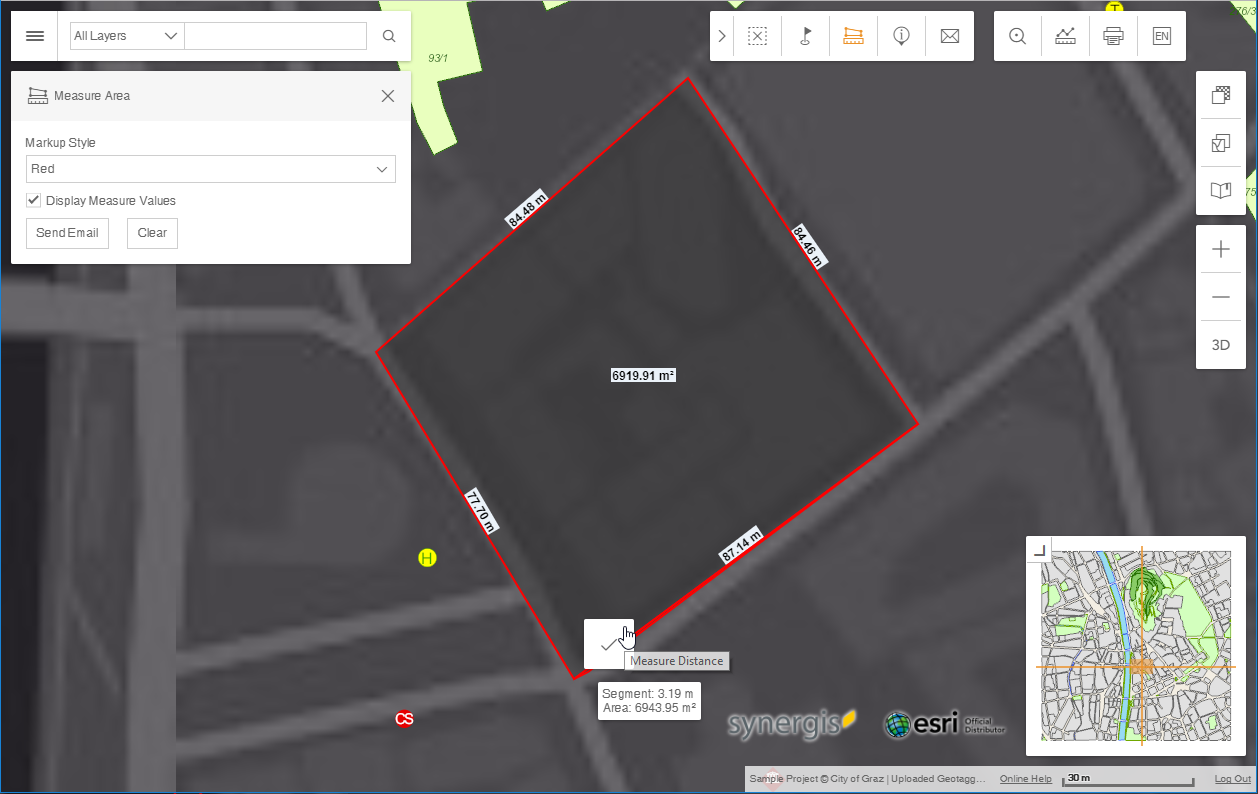

Measure Area with predefined markup style in the WebOffice flex client

Measure with Style Dialogue

A tool dialog will open that lets you specify Line width and color. Additionally, decide whether to display measurements in the map or just the drawing.

Note: With the style dialogue only default text style can be used.

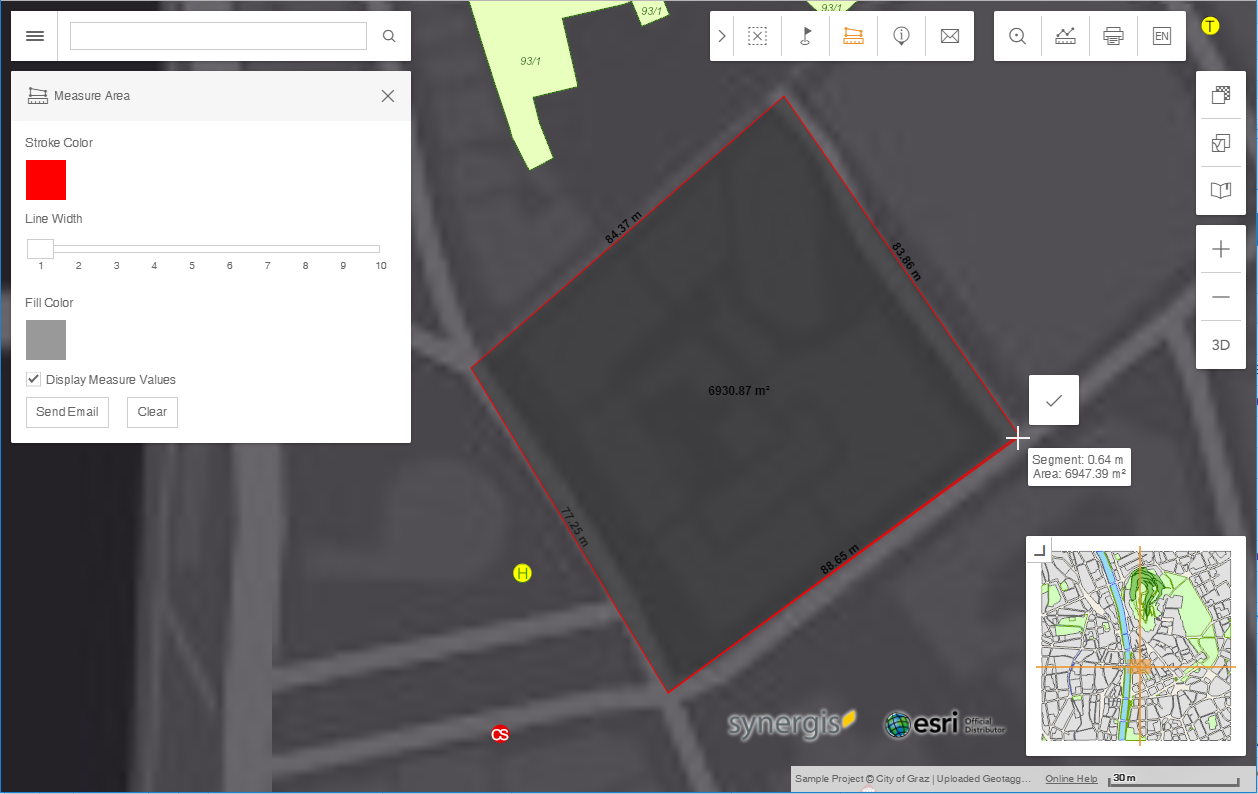

Measure Area with style dialogue in the WebOffice flex client

Menu Item	Description
Stroke Color	Adjust the color of the line
Line Width	Set the width of the line
Fill Color	Adjust the fill color of the polygon
Display Measure Values	Specify if measurements are displayed in the map
Send Email	Sends an email of the current map including distances
Clear	Deletes all drawings

Measure area tool form properties

Note: See chapter Measure - Area for details about the tool configuration in WebOffice author.
