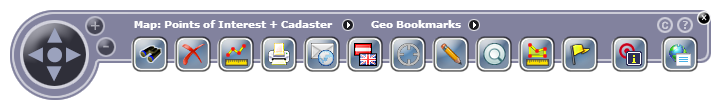

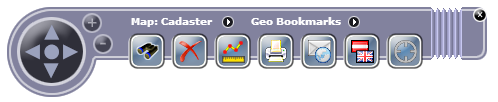

The toolbar in WebOffice flex client is positioned on the top left corner and contains all configured tools of the project. In order to maintain the clarity of the toolbar when having many tools configured, the toolbar will fold if more than seven tools are used in the project. As soon as the cursor is moved over the folded part of the toolbar it will unfold and stay a while this way before it returns to the folded view.







Note: By default, if more than ten tools are configured, the toolbar will fold and show seven tools. These values can be modified in C:\Tomcat\webapps\<WebOffice application>\client_flex\bin-release\com\mysynergis\webofficeflex\widgets\Navigator36.xml.

Note: The length of the toolbar is also affected by the length of configured map view names, in order to guarantee their display.



In the subsequent chapter you will find a description of tools & functions which can be configured for the WebOffice flex client:

•Navigation

•Queries

•Clear Selection/Markup

•Measure Distance

•Print

•Email Map

•Change Language

•Geolocation

•Editing

•Magnifier

•Measure Area

•Meeting Point

•MapTip

•Project Change

•Legal Info

•Online Help
