Print tool in the WebOffice flex client
Configured templates can be chosen from the drop down box. The icon changes from portrait letter (see figure above) to landscape letter if the template ID contains the word landscape. Defined print scales can be selected with a drop down box or entered manually if not configured. The print extent is shown by default and shows scale and rotation changes. Print resolution (high or standard), print title and creator can be defined. Using the button "Zoom Extent" you can zoom to the current print extent in the map.

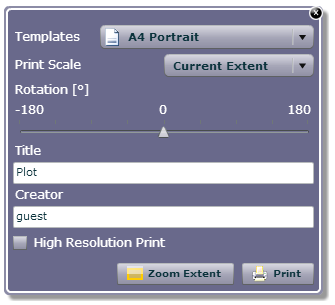

Print tool form in the WebOffice flex client

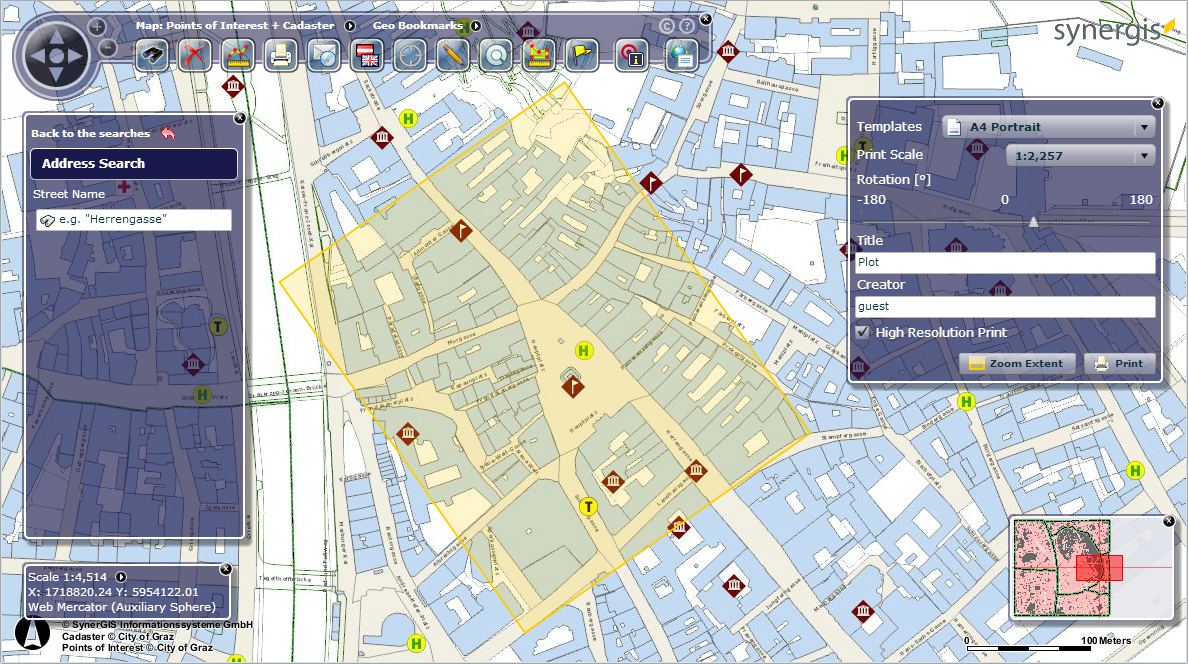

Rotated print in the WebOffice flex client
Note: The default print output format can be configured in Print. If not default output format is configured, the first one in the Print File Output Formats will be used.
Note: See chapter Print for details about the tool configuration in WebOffice author.
Note: See chapter Template (File Name) for details about the configuration of print templates and subsequent chapters about the available function fields.
Note: See chapter ArcGIS Server Print Service for details about the configuration of an optional print service.
