Tool "Box Selection" in the WebOffice core client



Activate the tool Box Selection to access various configuration settings in the WebOffice core client. This way, the user can choose a selection layer and selection mode.



Note: See chapter Select for more details about selection layer and mode.

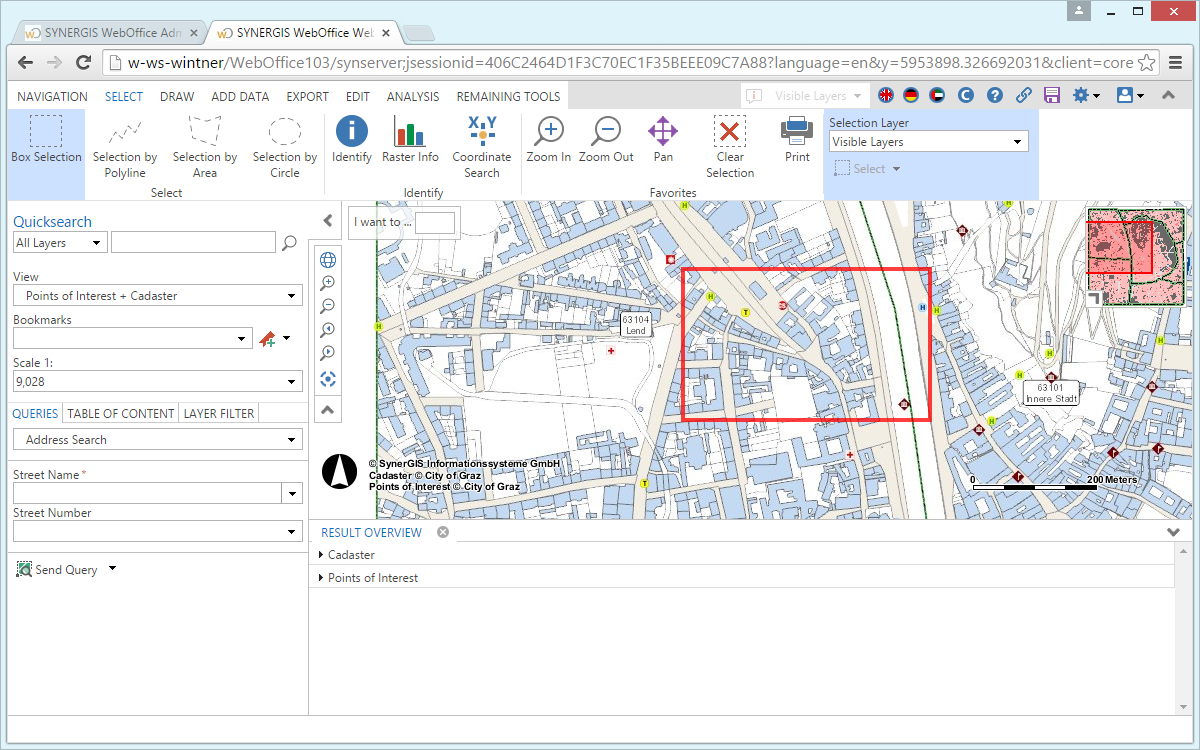

After a selection layer has been chosen, objects can be selected by creating a rectangular bounding box. Create the bounding box with a left-mouse click, holding and moving the mouse. Whenever the mouse is released, WebOffice 10.4 SP2 selects the objects inside the box.



If Visible Layers is set as selection layer, a Result Overview will appear in the lower part of the map whenever a selection across multiple layers is executed. However, if only elements of one layer are selected, they will be directly displayed in the Layer Result.





Note: See chapter Select - Rectangle/Box for further details about the tool configuration in WebOffice author.

Note: Define layer categories for a better structure of selection layers. See chapter List of Layer Categories for details.
