It is possible to configure a list of layers with explicitly configured properties. The order of the layers on first level is considered in the TOC as well.

icon_comment

The order of the layers can only be considered if the parameter Only use these Layers? is set to true. Otherwise WebOffice will take the order of topics from the WMS service.

If a WMS layer has further sub layers, the properties of these sub layers can also be configured, but their configured order is not taken into account. Instead, the order in which they are displayed in the table of content is the one specified by the WMS service.

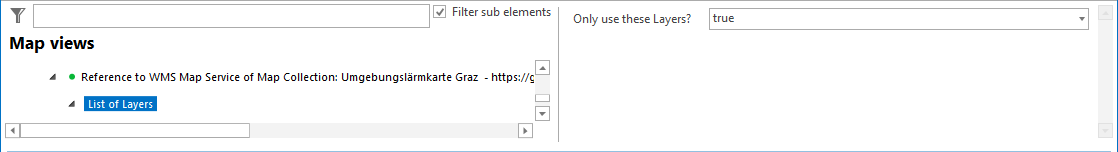

List of Layers configuration

List of Layers configuration



Property

Description

Only use these Layers?

Defines if only listed layers should be used. If configured to true, the user can only use these layers and their sublayers. All other layers of this service are not available for the user.

icon_comment

As far as this parameter is configured with true, the order of the Layer configuration is considered in the TOC and therefore in the Map too.

List of Layers properties



icon_comment

See Best Practices chapters Table of Content and Layer Properties before you start configuring the table of content in WebOffice author standalone.





icon_cross-reference

See chapter Table of Contents (TOC) for details about the configuration of WebOffice 10.9 SP1.

See chapter Table of Contents for details about the TOC appearance in the WebOffice core client.

See chapter Layer for details about the configuration of specific layer properties in the TOC.
