WFS feature types (analog to layers) can be located in the schema looking for the name attribute of the schema elements.



icon_comment

The property substitutionGroup of the element has to be gml:_Feature and that the element has to have an extension with the value gml:AbstractFeatureType in the base property.



Locate WFS feature type name in WFS schema

Locate WFS feature type name in WFS schema

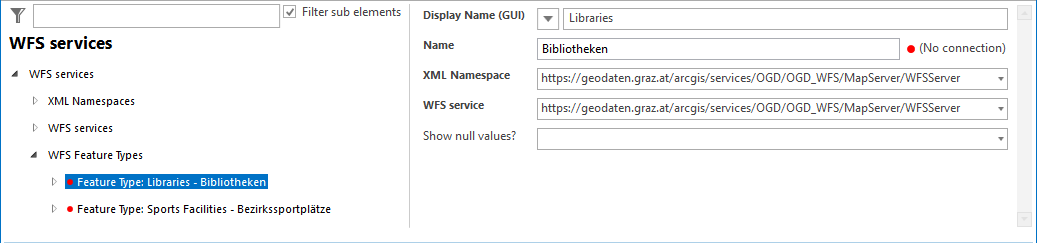

WFS feature type configuration

WFS feature type configuration



Property

Description

Display Name (GUI)

Table name shown in the GUI.

Name

Feature type name from the catalog description (XPath WFS_Capabilities/FeatureTypeList/FeatureType/Name).

XML Namespace

Choose the XML namespace where the feature type is defined.

WFS service

Choose the WFS service to be requested for features of this type.

Show null values?

Show null values in search result.

WFS Feature Types - Project structure overall



Query

The query configuration is analog to the layer Query.

Because no list of possible values can be retrieved by WebOffice 10.9 SP1, there is the limitation that only input type Text input is supported. You can only choose values from a value list or big input list, if you configure a Lookup on the search field (see chapter Lookup configuration for details). Another Limitation is that the search results of a WFS query cannot be restricted/used for MapTip and Free Labeling.

Field names (e.g. for search field list) can be resolved out of the schema. The fields are the child elements of the WFS Features (analog to layers), so the field names are stored in the name property.



Field names "Parcel_Number" and "Building_Permit_Applicant" in name property of field in WFS schema

Field names "Parcel_Number" and "Building_Permit_Applicant" in name property of field in WFS schema



Field name of result field

Field name of result field



icon_cross-reference

See the How To chapter WFS Services for information how to get the WFS schema file.

See also chapter XML Namespace and WFS Service.
