Export Profile Raster Data

You may also configure an Export Profile Raster Data element to export files in output formats like GeoTIFF. Using this function you are able to export the current map extent with the default resolution (96dpi).



icon_comment

Map rotation for GeoTIFF export is not supported yet.

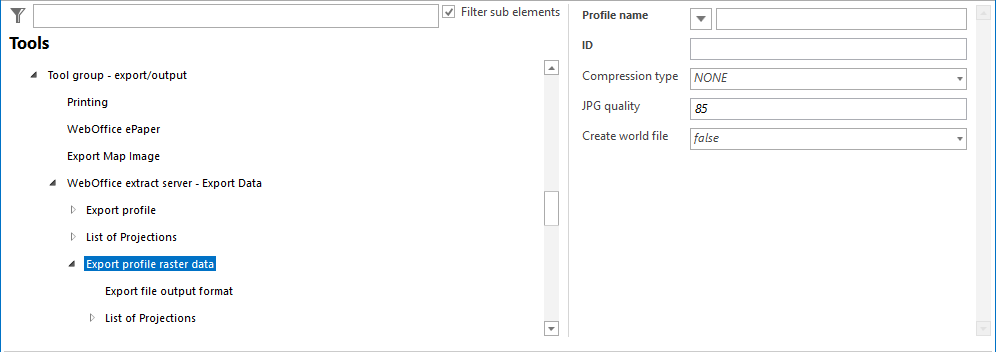

Export profile raster data configuration

Export profile raster data configuration



Property

Description

Profile name

Name of extraction profile shown in the GUI of the WebOffice 10.9 SP1 clients.

ID

Technical profile ID that can be defined here.

Compression type

Available compression types:

NONE: no data compression

JPG: lossy data compression

LZW: lossless data compression

JPG quality

JPG quality used for compression

Create world file

Create a plain text computer data file used by the GIS to georeference raster map images.

icon_comment

Set this parameter to true if you need a separated world file. Also when set to false, GeoTIFF contains the geographical information needed to georeference the raster data.

Export profile raster data properties



Also configure the specific Export file output format - GEOTIFF as a subelement of the export profile raster data.

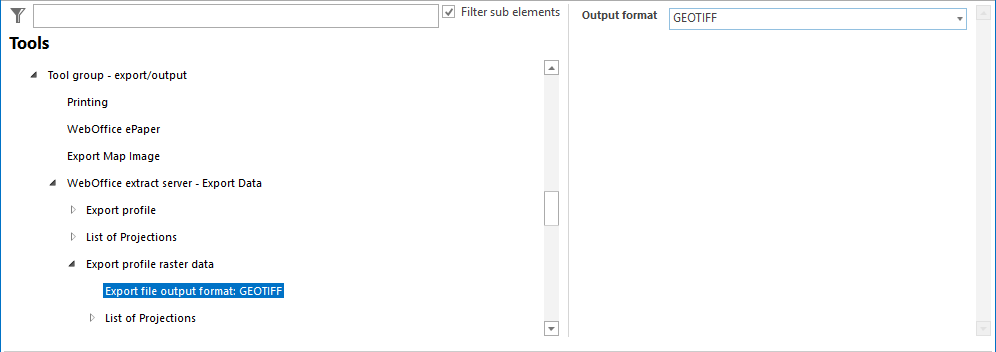

Export file output format configuration

Export file output format configuration



It is also possible to configure a list of (target) projections for the GeoTIFF that will be available to select from in the WebOffice 10.9 SP1 clients.



icon_comment

You need to activate the WebOffice extract server extension on your SynOutputService (or the specific ArcGIS Server Extract Service) as described in Activate SOE on a Map Service.

In WebOffice usermanagement, be sure that you have configured an Application Profile that includes the WebOffice - Export (Standard) Application Role and assigned to a group.



icon_cross-reference

See chapter List of Projections for details.

See chapter Data Export for information about the WebOffice extract server functionality in the WebOffice core client.

See chapter Data Export for information about the WebOffice extract server functionality in the WebOffice flex client.
