ArcGIS Service
Configure the ArcGIS Service tool to give users the option to add ArcGIS Online MapServices into the WebOffice 10.9 R4 project. Either configure only the tool, so the user can enter the URL himself or predefine a list of ArcGIS Online services to be chosen from.
|
An ArcGIS MapService that already exists in the Map Collection cannot be configured in the list of ArcGIS Online/Server services too. |

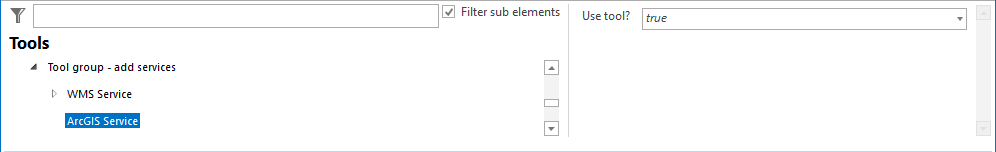

Add ArcGIS Online/Server service tool configuration
Property |
Description |
|---|---|
Use tool? |
Specify whether this Tool is available in the WebOffice 10.9 R4 clients (true) or not (false). |
Add ArcGIS Service tool properties
If you want to provide a list of predefined ArcGIS MapServices the user is to be allowed to choose from, configure the List of ArcGIS Services element that can contain one or multiple ArcGIS Services. A list of predefined services may be comfortable for the user, if he has to use specific services frequently. You can add both dynamic and cached ArcGIS Services into a dynamic project.
|
Full product support only for services from version 10.1 on. If the service is secured, the user has to enter credentials before using the service in the client. The particular service has to allow the operation query. |

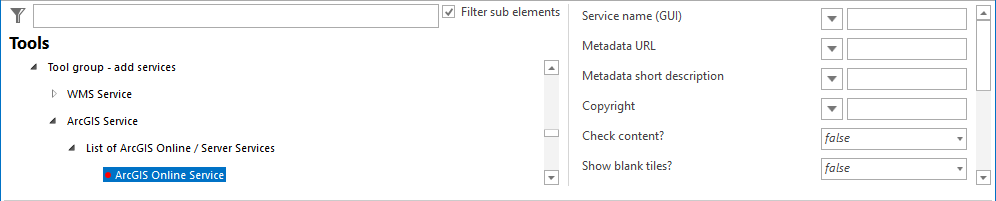

List of ArcGIS Online/Server Services configuration
In this list you can add an
|
•See chapter Add AGS Online Service for details about adding ArcGIS Online services in the WebOffice core client. •See chapter Add ArcGIS Online Service for details about adding ArcGIS Online services in the WebOffice mobile client. |
