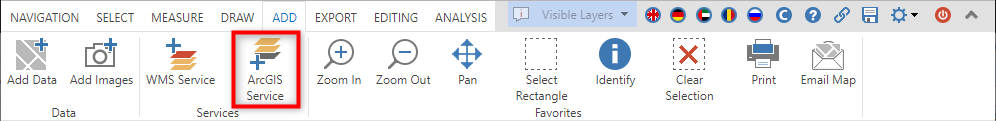

Add an ArcGIS service in the WebOffice core client

Add an ArcGIS service in the WebOffice core client



The tool ArcGIS Service offers two ways to add an ArcGIS Online service:

Entering an ArcGIS Online URL

Selecting from predefined services



Note: The second option is not considered if no list of predefined ArcGIS Online services is specified in the WebOffice 10.9 SP1 project configuration.



Entering an ArcGIS Online URL

Enter a correct URL of the ArcGIS Online map service in the field provided. Optionally the map service name (name displayed in the table of content) and/or a username and a password can also be specified.



Add an ArcGIS Online service by entering an URL

Add an ArcGIS Online service by entering an URL



Selection of predefined services

Predefined services are listed in the middle box of the tool window. Select the service you want to add to the project and change the name of the map service name if necessary. By clicking the button core_Add_WMS_Service9 you can also display additional meta information of the ArcGIS Online service.



Add an ArcGIS Online service from a predefined list

Add an ArcGIS Online service from a predefined list



Add Service

No matter which option is selected, clicking the button Add Service adds the desired Service to the WebOffice 10.9 SP1 project. The service is added to the table of content dynamically. Via the context menu, the service can be moved within the table of content, some map service properties (e.g. degree of transparency) can be changed or the map service can be removed.

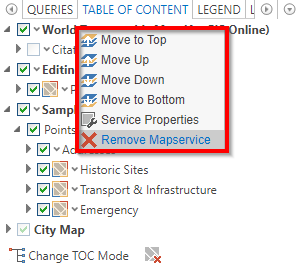

Context menu of an ArcGIS Online service in the WebOffice core client

Context menu of an ArcGIS Online service in the WebOffice core client



If an ArcGIS Online service has been added dynamically, it may be useful to save this service for later reuse. The Add to Bookmarks tool can be used to save the current state of the  WebOffice core client. If the URL created by WebOffice 10.9 SP1 is opened later, the ArcGIS Online service will be added to the map again, and the layer visibility settings will also be saved.



Note: Further information on configuring the Add ArcGIS Online / Server Service tool in WebOffice author standalone can be found in chapter ArcGIS Service.

Note: For more information on how to save a current state of the  WebOffice core client as a Bookmark in the browser, see chapter Add to Bookmarks.
