The Map rotation subnode is used to define the settings for the map rotation:

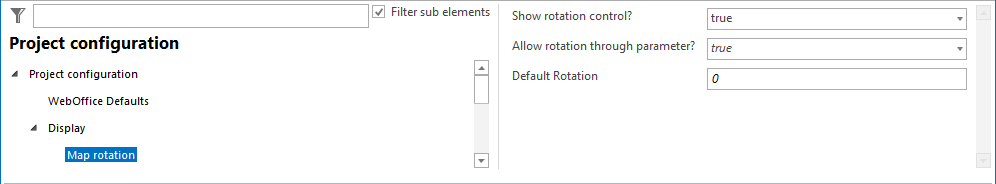

Configuration "Map rotation"

Configuration "Map rotation"



Property

Description

Show rotation control?

Determines whether the control menu for rotating the map should be displayed in the navigation panel (true) or not (false).

Allow rotation through parameter?

Determines whether an external call with Map rotation ist possible (true) oder not (false).

Default Rotation

Defines the default rotation angle of the map in degrees when calling up the project.

icon_comment

•The specified default rotation angle must be within a range between 180° and -180°.

•The specified default rotation angle can also have a maximum of four decimal places. If you specify a decimal number with more than four decimal places, the system rounds to the fourth decimal place when you call up the project.

Settings Map rotation



icon_cross-reference

See Map Rotation for more details about the usage of this functionality within the WebOffice core client.

See Navigation for more details about the usage of this functionality within the WebOffice flex client.
