Configure Timeouts to define timeouts for specific operations.



icon_comment

Consider also service timeouts to be responsible for operations canceling.



The following timeouts can be configured:

Allowed time for a portal login

Query Timeout

Print Timeout

ESRI Print Timeout

ePaper Timeout

Extract Timeout

Geoprocessing Timeout

Geodata Upload Timeout

Geodata Projection Timeout

Timeout for buffer calculations

WebRouting Timeout

Print Timeout

Configure a Print Timeout to define the time the WebOffice 10.9 SP1 client waits to complete the printing task.



Print timeout configuration

Print timeout configuration



Property

Description

Waiting time for printing in minutes

Specifies the length of time (in minutes) how long the WebOffice client waits until a printing task has been completed.

icon_warning

ATTENTION!

The value for the parameter "The maximum time a client can use a service" must be increased inside ArcGIS Server Manager at the Map Service SynOutputService under Pooling > Specify Service Timeouts accordingly.

Print timeout properties

ESRI Print Timeout

Configure a ESRI Print Timeout to define the time the WebOffice 10.9 SP1 client waits to complete the ESRI printing task.

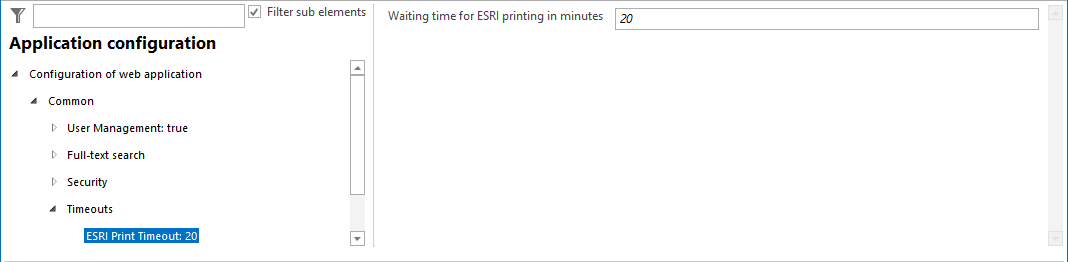

ESRI Print timeout configuration

ESRI Print timeout configuration



Property

Description

Waiting time for ESRI printing in minutes

Specifies the length of time (in minutes) how long the WebOffice client waits until a printing task has been completed.

ESRI Print timeout properties

ePaper Timeout

Configure an ePaper Timeout to define the time the WebOffice 10.9 SP1 client waits to complete the WebOffice ePaper task.



ePaper timeout configuration

ePaper timeout configuration



Property

Description

Waiting time for ePaper printing in minutes

Specifies the length of time (in minutes) how long the WebOffice client waits until an ePaper task has been completed.

icon_warning

ATTENTION!

The value for the parameter "The maximum time a client can use a service" must be increased inside ArcGIS Server Manager at the Map Service SynOutputService under Pooling > Specify Service Timeouts accordingly.

ePaper timeout properties

Extract Timeout

Configure an Extract Timeout to define the time the WebOffice 10.9 SP1 client waits to complete the extract task.



Extract timeout configuration

Extract timeout configuration



Property

Description

Waiting time for extract process in minutes

Specifies the length of time (in minutes) how long the WEbOffice client waits until an export/extract task has been completed.

icon_warning

ATTENTION!

The value for the parameter "The maximum time a client can use a service" must be increased inside ArcGIS Server Manager at the Map Service SynOutputService under Pooling > Specify Service Timeouts accordingly.

Extract timeout properties

Query Timeout

Configure a Query Timeout to define the time the WebOffice 10.9 SP1 client waits to complete the query task.

Query timeout configuration

Query timeout configuration



Property

Description

Waiting time for query operations in seconds

Specifies the length of time (in seconds) how long the WebOffice 10.9 SP1 clients waits until query operations have been completed.

icon_warning

ATTENTION!

The value for the parameter "The maximum time a client can use a service" must be increased inside ArcGIS Server Manager at the Map Service SynOutputService under Pooling > Specify Service Timeouts accordingly.

Query timeout properties

Geoprocessing Timeout

Configuration of a timeout for geoprocessing operations, which specifies the time for which the WebOffice 10.9 SP1 client waits during geoprocessing operations.



Geoprocessing timeout configuration

Geoprocessing timeout configuration



Property

Description

Waiting time for geoprocessing in minutes

Specify the length of time (in minutes) how long the WebOffice 10.9 SP1 client waits until an geoprocessing task has been completed.

icon_warning

ATTENTION!

The value for the parameter "The maximum time a client can use a service" must be increased inside ArcGIS Server Manager at the Map Service SynOutputService under Pooling > Specify Service Timeouts accordingly.

Geoprocessing timeout properties

WebRouting Timeout

Configure a WebRouting Timeout to define the time the WebOffice 10.9 SP1 client waits to complete the routing task.

Routing timeout configuration

Routing timeout configuration



Property

Description

Waiting time for (network) routing analyses in minutes

Specify the length of time (in minutes) how long the WebOffice 10.9 SP1 client waits until an network route analysis task has been completed.

WebRouting timeout properties

Geodata Upload Timeout

Configure a Geodata Upload Timeout to define the time the WebOffice 10.9 SP1 client waits to complete the Geodata Upload.

woas_app_Timeouts8

Geodata Upload timeout configuration



Property

Description

Waiting time for Geodata Upload in minutes

Specify the length of time (in minutes) how long the WebOffice 10.9 SP1 client waits until an Geodata Upload has been completed.

icon_comment

If no value is configured the default value (5 minutes) is active.

Geodata Upload timeout properties

Geodata Projection Timeout

Configure a Geodata Projection Timeout to define the time the WebOffice 10.9 SP1 client waits to complete the Geodata Projection.



woas_app_Timeouts9

Geodata Projection timeout configuration



Property

Description

Waiting time for Geodata Projection in minutes

Specify the length of time (in minutes) how long the WebOffice 10.9 SP1 client waits until an Geodata Projection has been completed.

icon_comment

If no value is configured the default value (1 minutes) is active.

Allowed time for a portal login

Configuration of the time, which an external login process (OAuth) may take.

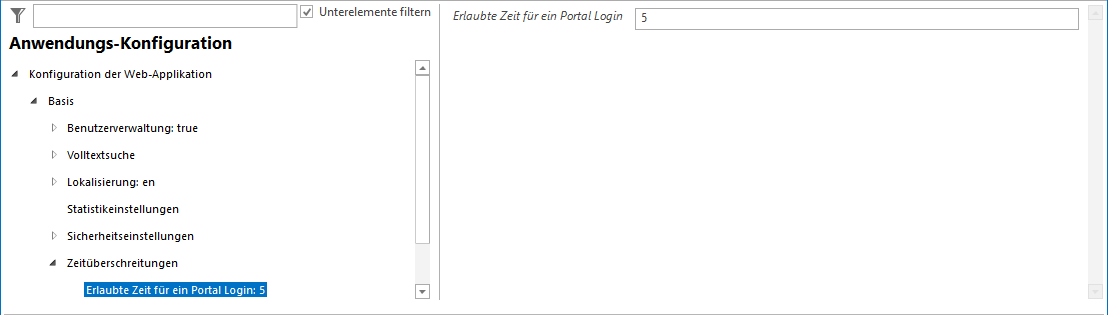

Portal login configuration

Portal login configuration



Property

Description

Allowed time for a portal login

Specify the time (in minutes) how long an external login process (OAuth) may take.

icon_comment

A return from the Enterprise side is not possible after this time.

Timeout for buffer calculations

Configuration of a timeout for buffer calculations, which specifies the time on which the WebOffice 10.9 SP1 client waits during a buffer calculation.

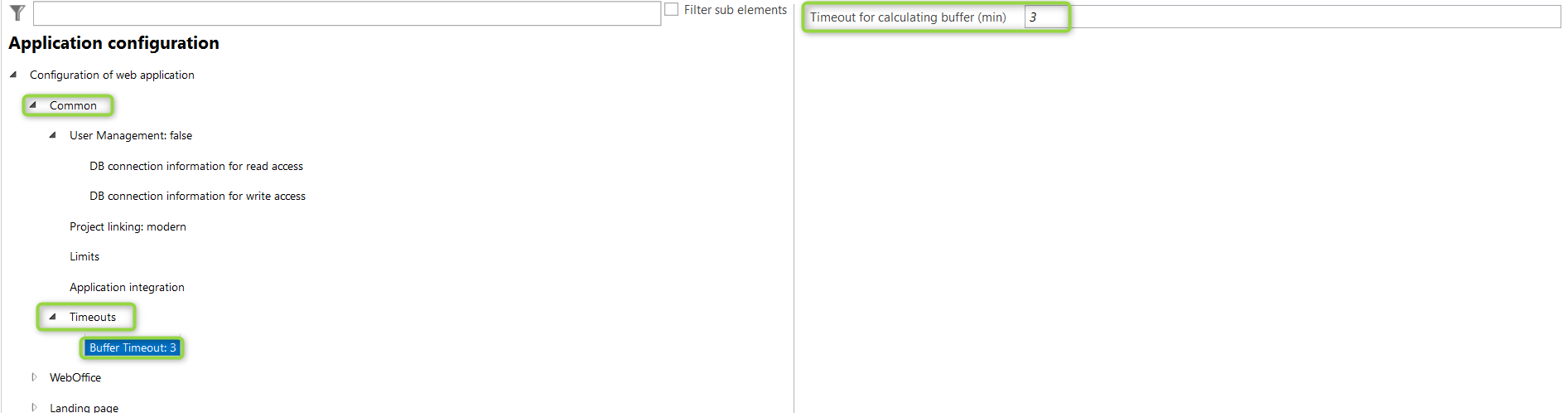

Buffer timeout configuration

Buffer timeout configuration



Property

Description

Waiting time for buffer calculations (min)

Specify the duration (in minutes) how long the WebOffice client waits for the completion of a buffer calculation.

icon_comment

If no value is configured the default value (3 minutes) is active.
