Use the Layers wizard to create, modify or delete layers. Use this wizard especially then, if you want to remove a layer from your WebOffice usermanagement database that is outdated. Layers usually are created automatically in the UMDB when synchronizing the base data via WebOffice author standalone.



icon_comment

When deleting a layer from the WebOffice usermanagement database, all group permissions for this layer will also be deleted automatically.

Before creating a new layer in the UMDB manually, you have to create the according Service first.

Before creating a new layer in the UMDB manually, you have to create the according Feature Class first.

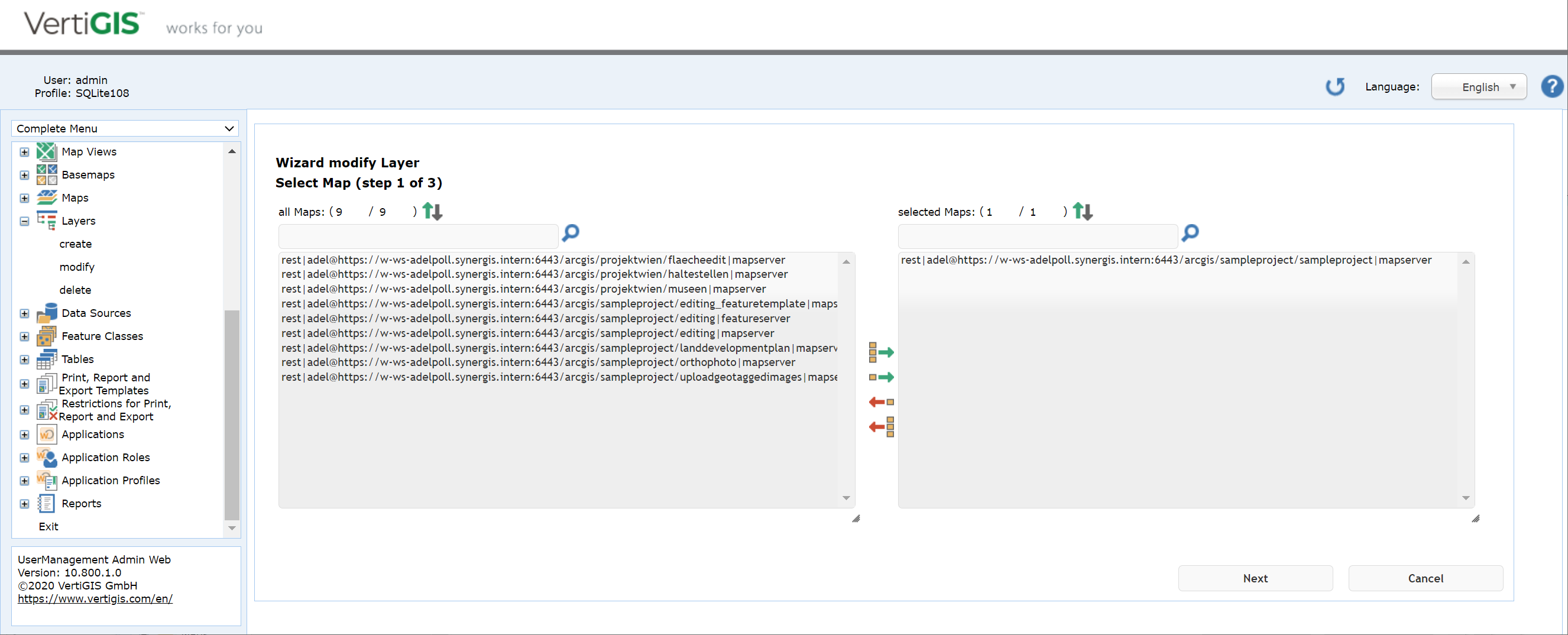

When modifying an existing layer, first select a service.



Modify a layer - step 1

Modify a layer - step 1

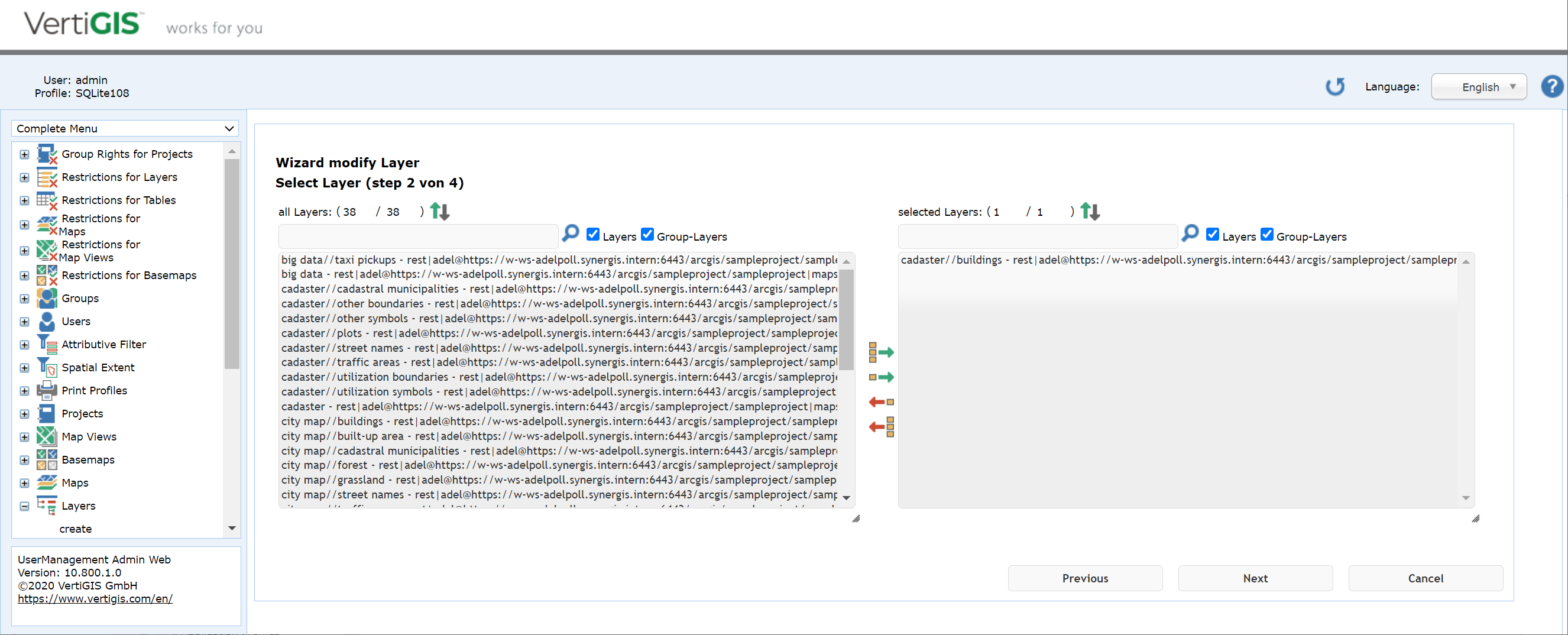

In the next step select the layer of interest by moving it to the right side.



Modify a layer - step 2

Modify a layer - step 2

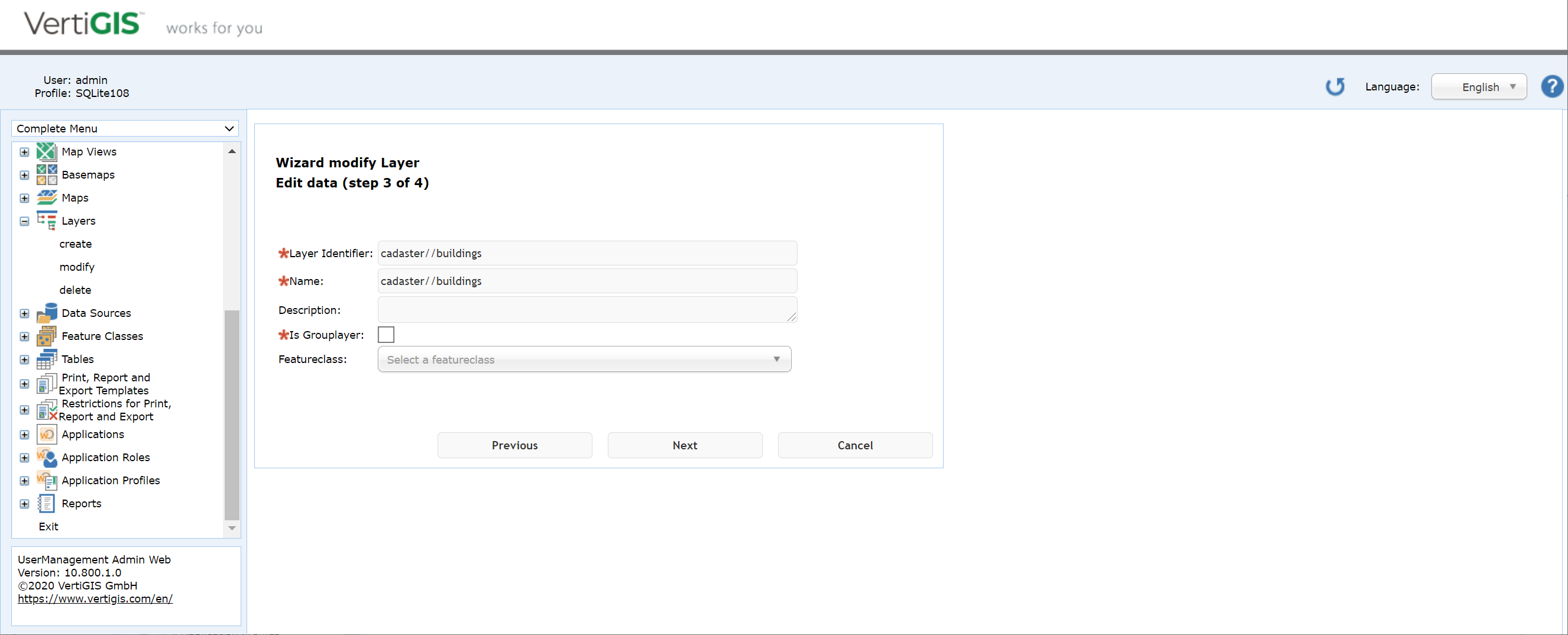

Step three shows you several details of the layer information saved in the UMDB.



Modify a layer - step 3

Modify a layer - step 3



Property

Description

Index

Index of the layer.

icon_comment

This field is mandatory.

Name

Name of the layer.

icon_comment

This field is mandatory.

Description

Optionally, provide some description for this layer.

Feature Class

Feature class reference for this layer.

Layer properties

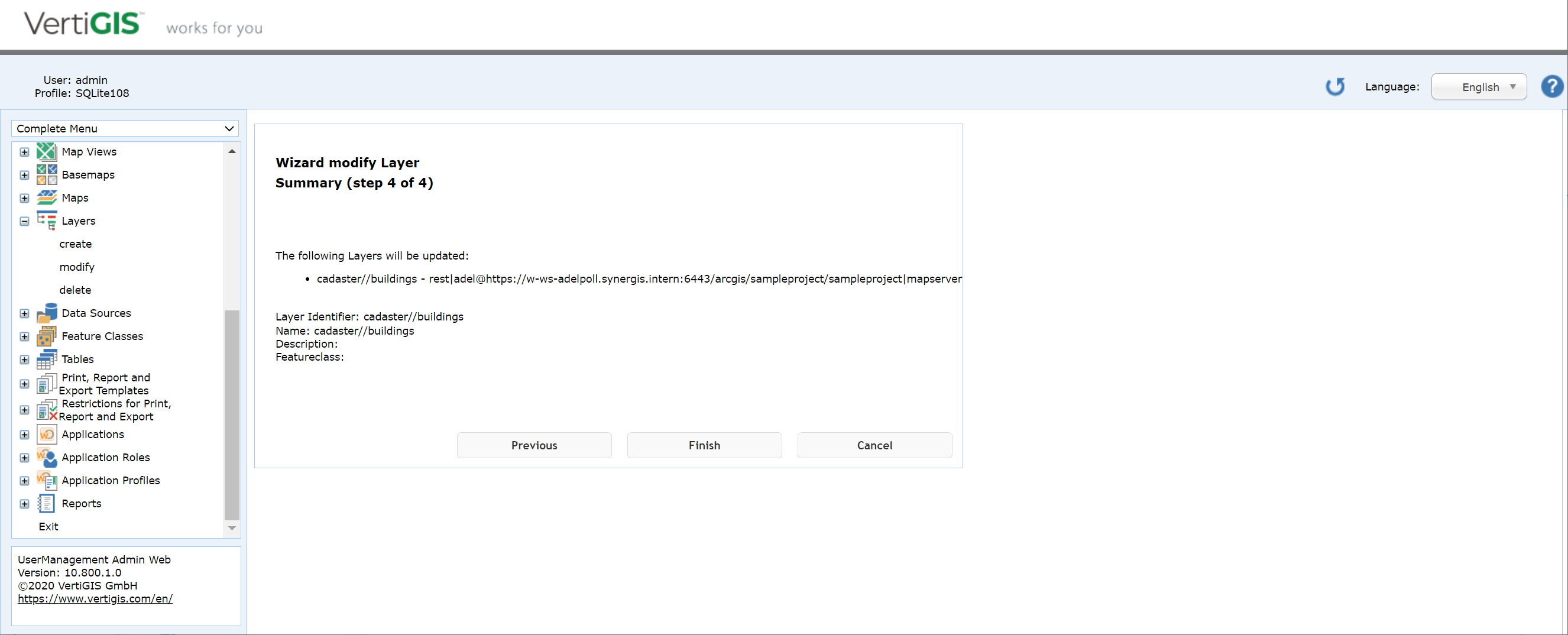

In the final step you get a resume. Click the Finish button to store your edits.



Modify a layer - step 4

Modify a layer - step 4
