Use the Feature Classes wizard to create, modify or delete feature class references. Use this wizard especially then, if you want to remove a feature class from your WebOffice usermanagement database that is outdated. Feature classes usually are created automatically in the UMDB when synchronizing the base data via WebOffice author standalone.



icon_comment

A feature class that you want to delete must not be referenced in any Layer in the WebOffice usermanagement database.

Before creating a new feature class in the UMDB manually, you have to create the according Data Source first.



When modifying an existing feature class, first select one.

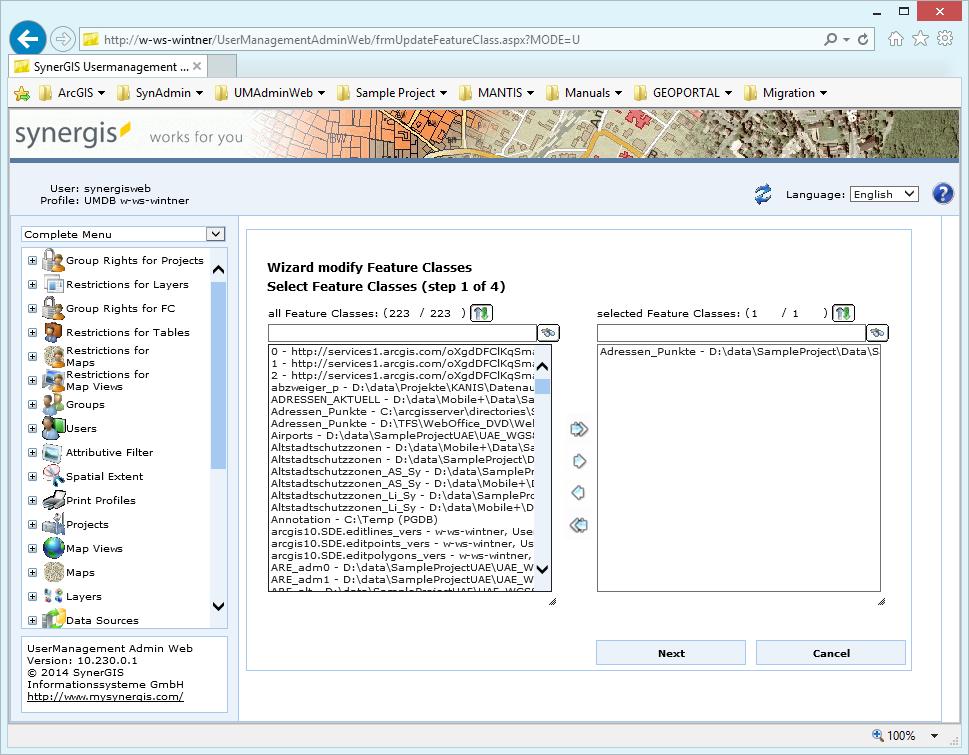

Modify a feature class - step 1

Modify a feature class - step 1



In the next step you will get details about the selected feature class.

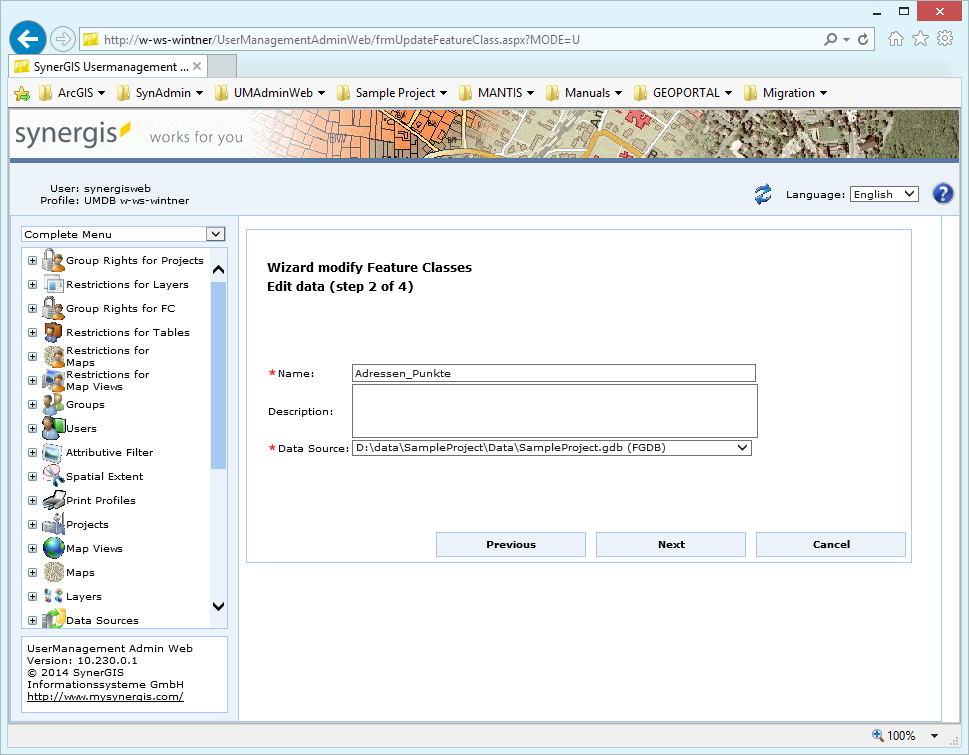

Modify a feature class - step 2

Modify a feature class - step 2



Property

Description

Name

Specify the name of the feature class.

icon_comment

This field is mandatory.

Description

Optionally, provide some description for this feature class.

Data Source

Select a valid data source.

icon_comment

This field is mandatory.

Feature Class properties



Within the third step, it is possible to define attribute fields of the feature class.



icon_comment

This step is optional, the feature class may be created without specific attribute fields being added.



Modify a feature class - step 3

Modify a feature class - step 3

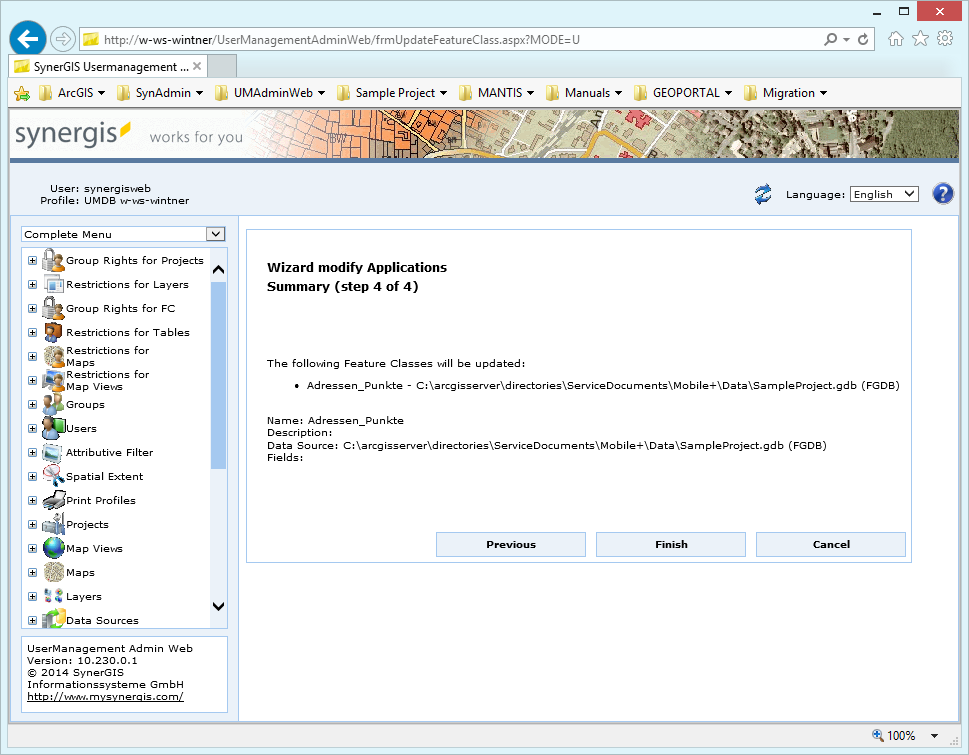

In the final step you get a resume. Click the Finish button to store your edits.



Modify a feature class - step 3

Modify a feature class - step 3
