Use the Data Sources wizard to create, modify or delete data source references. Use this wizard especially then, if you want to remove a data source from your WebOffice usermanagement database that is outdated. Data sources usually are created automatically in the UMDB when synchronizing the base data via WebOffice author standalone.



icon_comment

A data source that you want to delete must not be referenced in any Feature Classes in the WebOffice usermanagement database.



When modifying an existing data source, first select one.

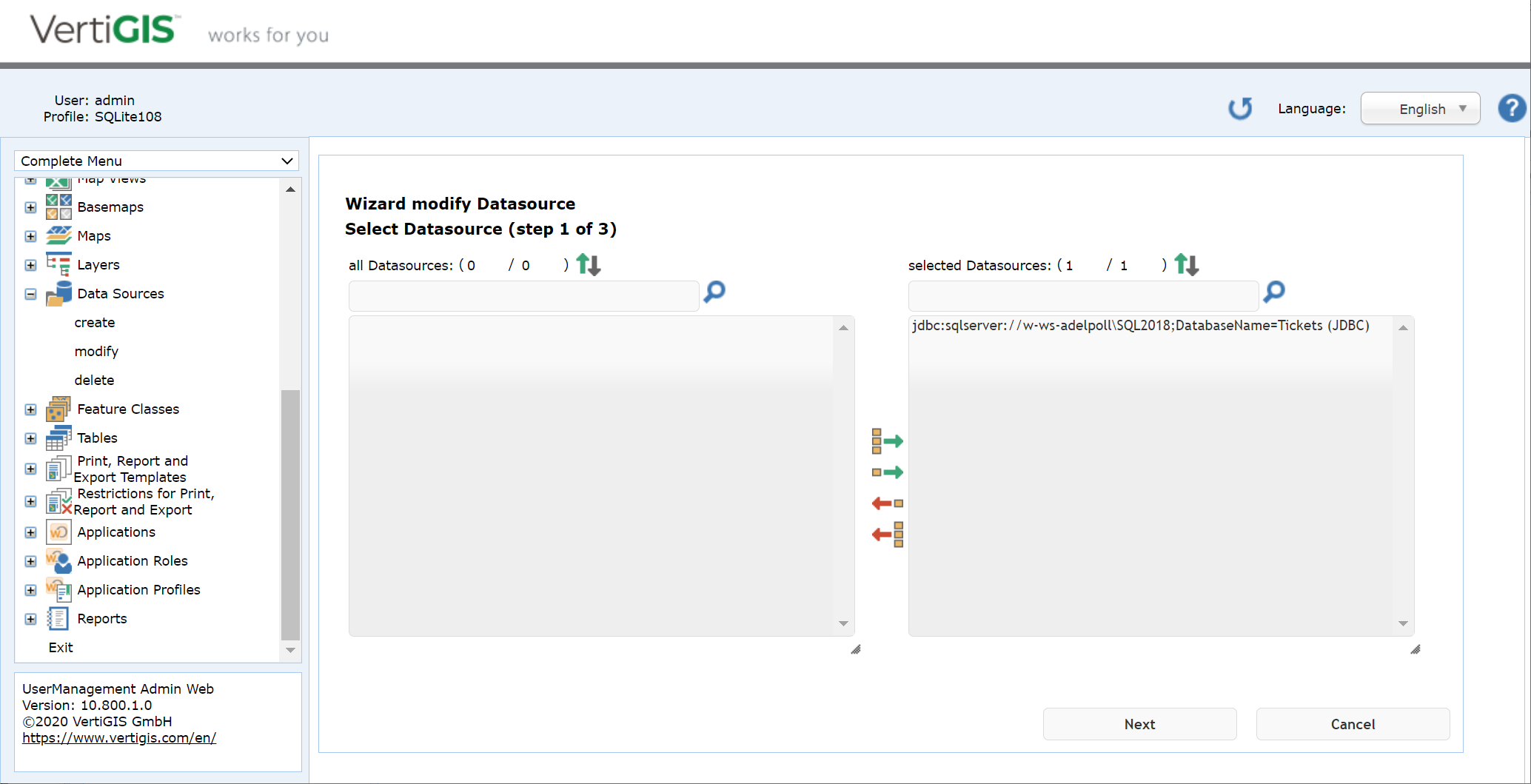

Modify a data source - step 1

Modify a data source - step 1



In the next step you will get details about the type, name and file path of the selected data source.

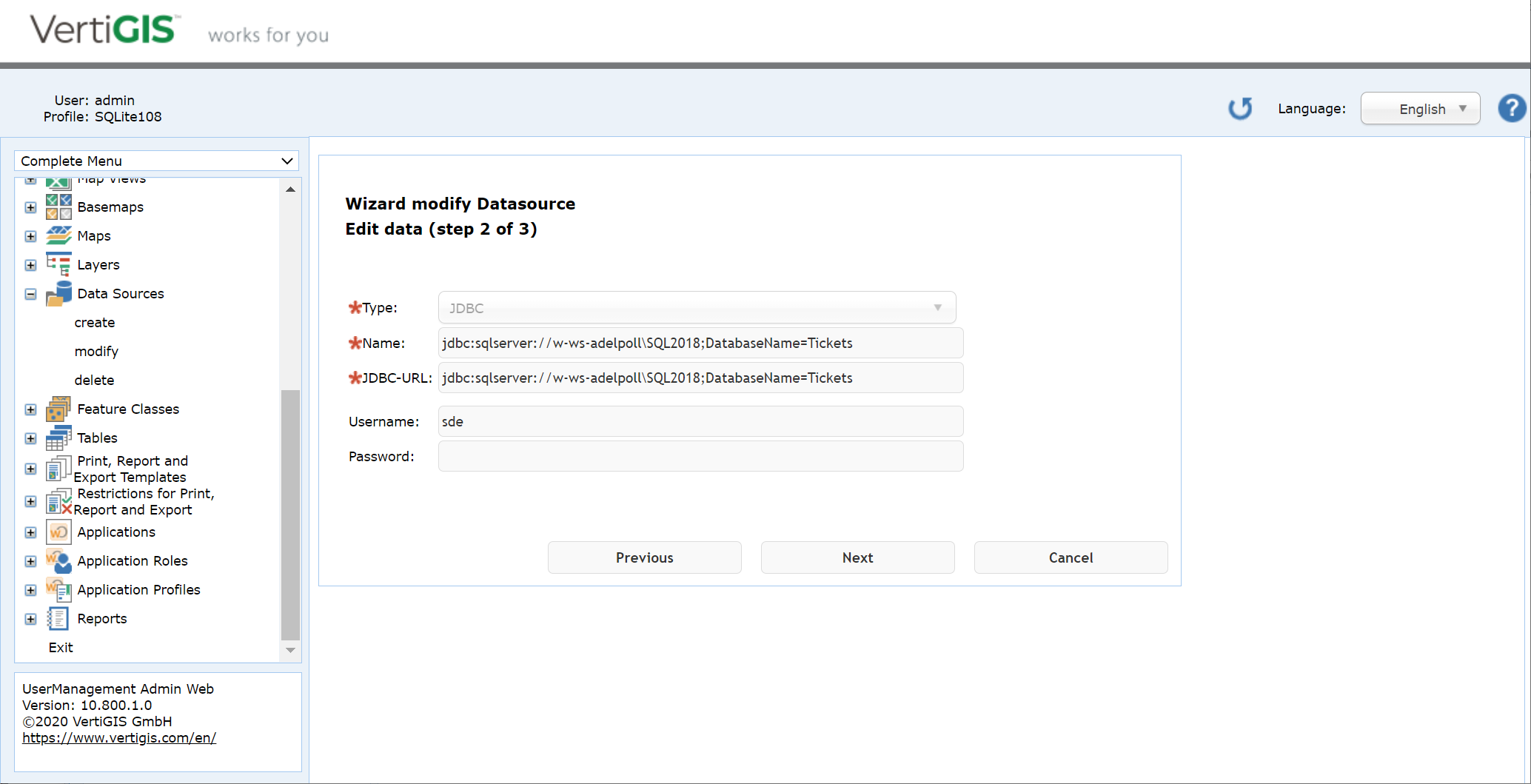

Modify a data source - step 2

Modify a data source - step 2



Property

Description

Type

When creating a new data source manually, the data source type has to be specified. Select one of the following:

FGDB

JDBC

PGDB

SDE

Shape

icon_comment

This field is mandatory.

Name

Name of the data source.

icon_comment

When created automatically during base data synchronization, the data source name refers to the file path.

This field is mandatory.

File

Provide the file path to the data.

icon_comment

This field is mandatory.

Data source properties



icon_comment

The further properties vary depending on the data type.



In the final step you get a resume. Click the Finish button to store your edits.

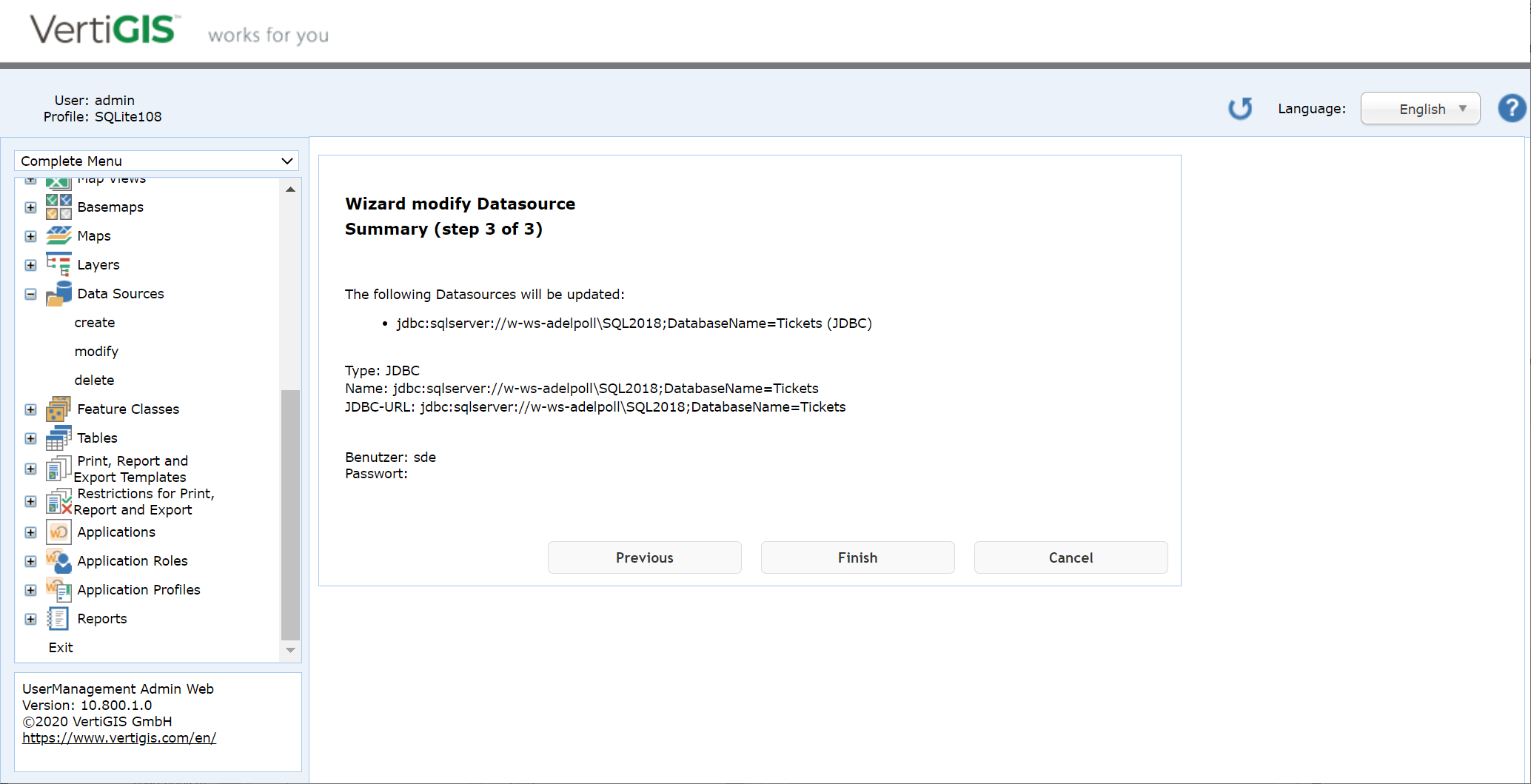

Modify a data source - step 3

Modify a data source - step 3
