Results from queries or identifying (Identify) are shown either above the lower segment of the toolbar (larger displays) or in a new tab (smaller displays).

According on the number of results (one or more), a list with details (single object) or an object overview (multi objects) will appear.



Overview of all found results:

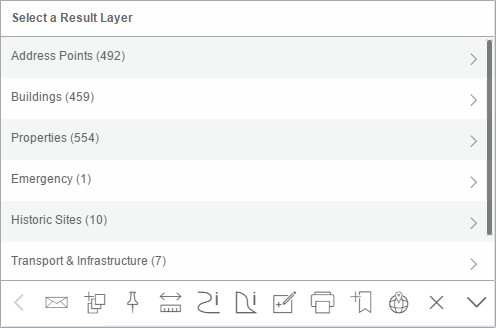

Result list in the WebOffice mobile client - tablet mode

Result list in the WebOffice mobile client - tablet mode



Note: If the parameter Multi Feature Selection allowed in project configuration is set to Yes, the result list gives you the possibility to show all results on the map with only one click.

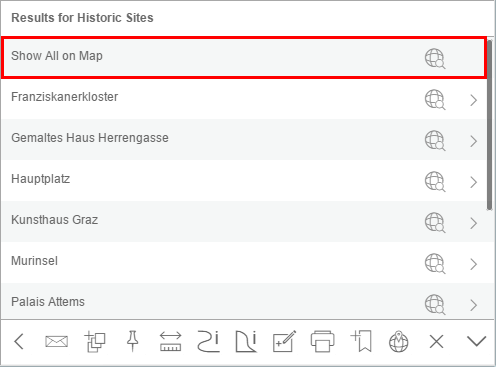

Show all results on the map with only one click - tablet mode

Show all results on the map with only one click - tablet mode



Detail result of a single object:

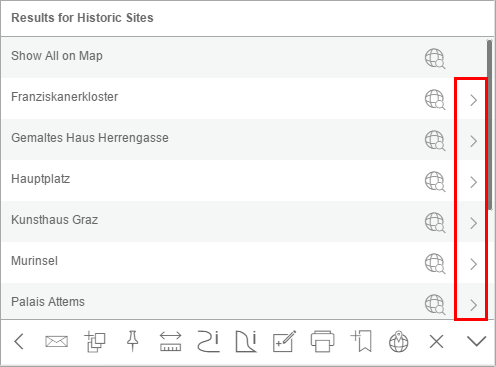

Call detail view of a result - tablet mode

Call detail view of a result - tablet mode

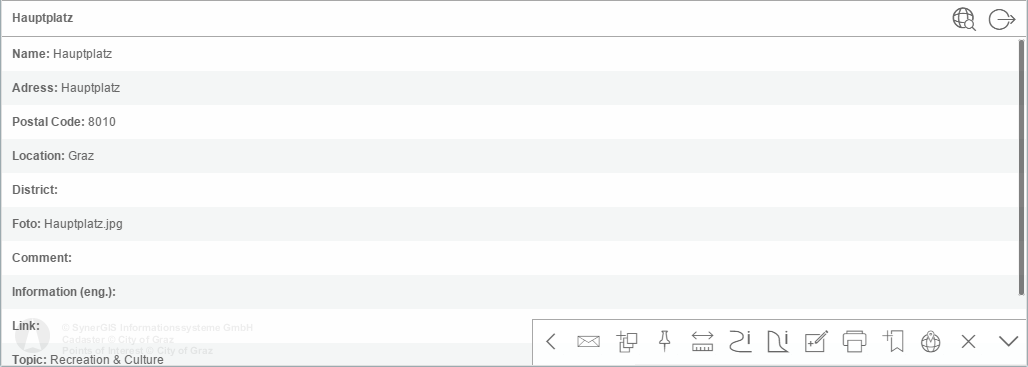

Detail view of an object in the WebOffice mobile client - tablet mode

Detail view of an object in the WebOffice mobile client - tablet mode



The detail view can provide additional functions:



Function

Description

mobile_Results5

Integration of external applications (Integration of one ore more (web)-applications). More details on how to configure external applications please find in chapter Integration of external Applications. Matching icons for the mobile client you will find in client_mobile/images/samples (e.g..: client_mobile/images/samples/extapp_02.png)

mobile_Results6

Zooms to the object in the map. This function is also available in the result list.

mobile_Results7

Vicinity search: easy and quick hit of neighboring objects of one or more objects. More details on how to configure Vicinity search please find in chapter Neighbour Search.

mobile_Results8

Opens an ePaper report in a new browser tab.

mobile_Results9

Opens a result list of a table which is related to the feature class through an ArcMap- or WebOffice-Relate.

Detailed information about the configuration of WebOffice Relates can be found in chapter Relate (1:n) Relation with other Database Table.

Note: For ArcMap-Relates the name of the relation and a unique identifier (OID) are displayed.

mobile_Results11

Edit feature

Note: See chapter Edit Feature for details about feature editing in the WebOffice mobile client.

mobile_Results10

Object assignment

Note: See chapter Assign Feature for details about object assignment in the WebOffice mobile client.
