This How To chapter describes the use of WebOffice 10.9 R4 with ArcGIS Enterprise (Portal for ArcGIS) in a federated server scenario with a Single Sign On (SSO) authentication.







In this case, the following initial scenario must be given for a correct configuration:

•WebOffice 10.9 R4 with ArcGIS Enterprise in federated server operation (i.e. a server site has been added to Portal for ArcGIS)

▪See Section 1

•The federated server is configured with the Active Directory (AD)-Identity Store (i.e. users and groups come from the Microsoft Windows Active Directory).

•ArcGIS Web Adaptor for IIS (Portal): Portal with Integrated Windows Authentication is activated.

▪See Section 2

•Optionally: Automatic portal user creation is activated (i.e. when the portal page is called for the first time, the portal account is automatically read and created from the Active Directory Identity Store due to the integrated Windows Authentication)

▪See Section 3

•The corresponding security certificates from the portal server must be imported into the Java Truststore, ArcGIS Server Truststore (Server Admin Directory) and Portal Truststore (Portal Admin Directory) on the server where the WebOffice 10.9 R4 application is located.

•The map services are hosted on a federated server

•The map services (if they are secured services) are only accessible to registered portal users of the federated server (provided that the user is a member of a portal group that is authorized to use the map services).

•When using Integrated Windows Authentication (IWA) at the same time, only one WebOffice application may be set up within a Tomcat environment.





The following steps must be carried out in this scenario to ensure a functioning operation with Single Sign On authentication of WebOffice with ArcGIS Enterprise (Portal for ArcGIS):



1. ArcGIS Enterprise as a Federated Server

When you add a server site to your portal, the server connects to the portal. A server that has been added to your portal is called a federated server.





In this example, a server site has been added to Portal for ArcGIS to a federated server.



2. Configuration of Integrated Windows Authentication in the Internet Information Services (IIS) Manager

Access to the portal can be secured using Integrated Windows Authentication (IWA). When using IWA, logon names are managed via Microsoft Windows Active Directory. Users do not have to log in and out of the portal website. Instead, users are logged on to the portal with the same account they use to log on to Windows.

To use the Integrated Windows Authentication, you must use ArcGIS Web Adaptor (IIS) provided for the Microsoft IIS web server.

For Portal Web Adaptor for IIS Integrated Windows Authentication is enabled on the federated server in the IIS Manager. This is necessary for Single Sign On authentication.





In IIS Manager, Windows authentication must be enabled for the Portal Web Adaptor.







3. Activate user once on the Portal or creating new users on the Portal



Open your portal website. The URL has the format https://webadaptorhost.domain.com/webadaptorname/home.

After accessing the URL, check whether you are prompted to enter your ArcGIS Enterprise account credentials or whether you are automatically logged in. If you are not logged on automatically, verify that the Windows account that you used to log on to the computer has been added to the portal.

Integrated Windows Authentication (IWA) automatically creates a user account in the portal the first time the user calls the portal URL. The prerequisite is that you manage members via the enterprise identity store of your organization and the user is a member of your organization.





4. Further settings in the Portal for ArcGIS

The map services you want to consume must be hosted on the federated server.

The logged-in user must be a member of the group in the portal that is authorized to consume the corresponding map services.





To check your permissions, open the URL of the rest interface in the browser. The URL has the format https://webadaptorhost.domain.com/webadaptorname/rest/services.

If your user account was successfully created in the portal using Integrated Windows Authentication, and if you are a member of a group that contains map services hosted on the federated server, you should be logged on automatically after the URL is called, and the services for which your user is authorized are listed:





Adding a new application

Next, a new application (Web Map Application) must be created in the portal for your WebOffice 10.9 R4 application.

This portal app will later control automatic user authentication in the background when calling the WebOffice 10.9 R4 project that consumes map services from the federated server. This allows a user to call a WebOffice 10.9 R4 project without having to specify a specific service user plus password for the map services from the federated server in the WebOffice 10.9 R4 project configuration.





To begin, check that you are logged in and have permissions to create content.

In My Content, click Add Item, and then click An Application.

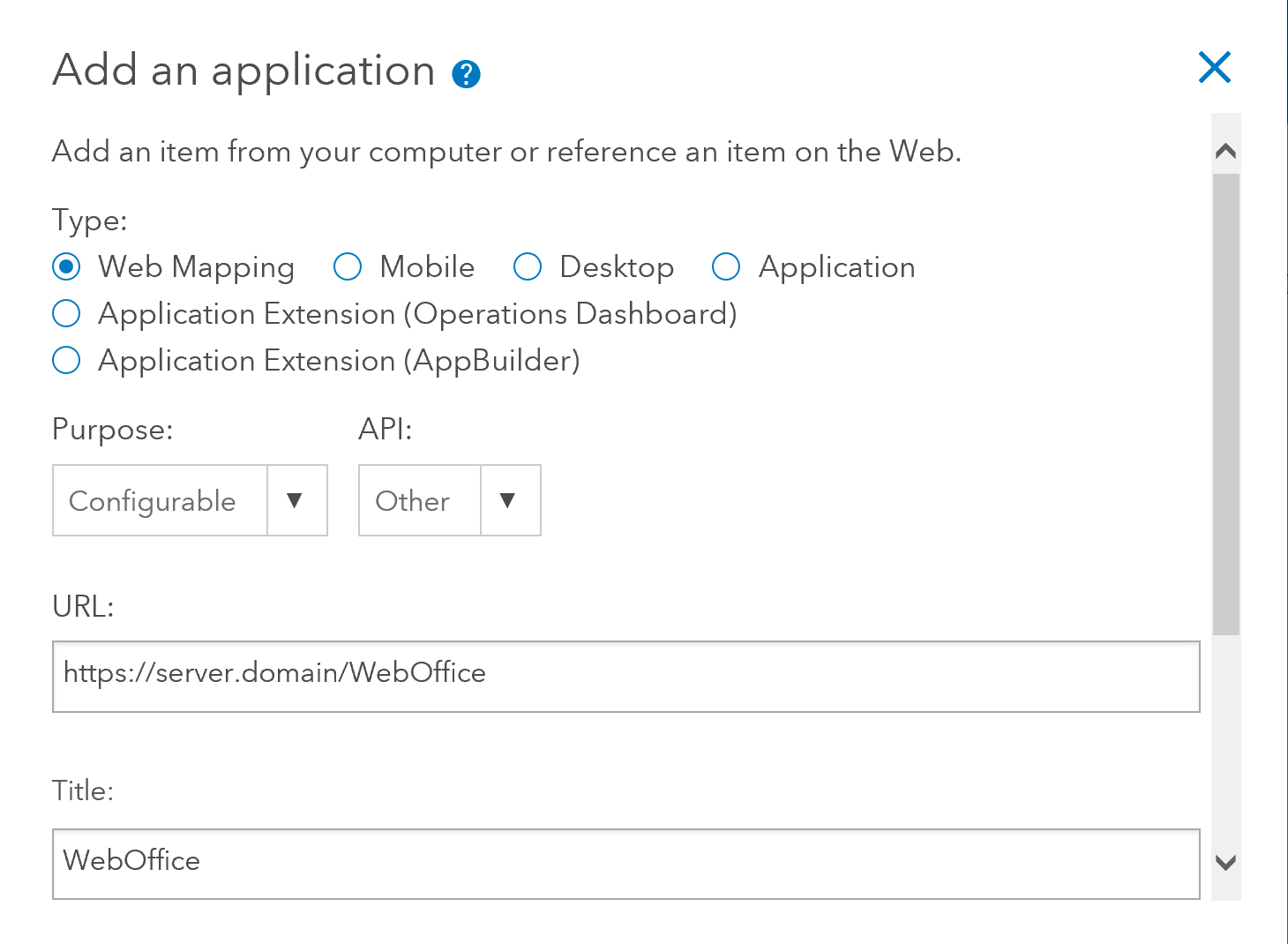

The following table lists the parameters that you must select or assign for this necessary configuration, as shown in the previous graphic.





Click Add Item.

After you have added your application, the page of the newly created application with the Overview and Settings areas opens automatically.



Registration of the application

The next step is to register the newly created application. To do this, switch to the Settings tab for the General Settings of the Web Mapping Application.



At the bottom of this page is the App Registration section. Click Register to register the application.



The App Type is Browser and the Redirect URI must be the URL of the WebOffice 10.9 R4 application.

Specify the address in the format https://<server>/<WebOffice-Application>.

Then click on Add and Register.





Displaying App Registration Information

The App Registration section now lists parameters required to configure authentication in the WebOffice 10.9 R4 Application Configuration.

You can display the following details:

•App ID

•App Secret

•App Type

•Redirect URI's





Click Show Secret: This key and the App ID are then copied and pasted into the WebOffice 10.9 R4 application configuration.





Your portal application with redirection to your WebOffice 10.9 R4 application is successfully created and registered. Continue for the next steps in WebOffice author.



5. Adjustments in the WebOffice Application Configuration

Open the Application Configuration in WebOffice author.

First it is necessary to add the user account of the portal user, who is tomcat domain user, with role type administrator to the List of ArcGIS for Server Publisher Users and to enter the server URL to the portal page.





A new subnode must be configured at the WebOffice node: List of ArcGIS-Enterprise OAuth Authorization bindings







The parameters of this subnode must be filled with the information of the Web Mapping Application previously created in the portal.









Note that you specify the token service URL for OAuth2 token service endpoint that is entered in the REST interface in the Info section (example URL: https://myserver.domain.com/arcgis/rest/info) of the ArcGIS Server.





Then save the WebOffice 10.9 R4 Application Configuration and reload the WebOffice 10.9 R4 application.





6. Adjustments in the WebOffice Project Configuration

In the respective project configurations, the ArcGIS server map service connections in the Map Collection must be adapted accordingly to the https URL of the ArcGIS federated server.



In a ArcGIS federated server scenario it is not possible to use the WebOffice author standalone in a WebOffice 10.9 R4 project configuration to assign user credentials for an ArcGIS Server map service connection.







The necessary configurations are now completed.



7. Usage

After configuration, testing takes place in the case of use when calling up a WebOffice project that consumes map services from a federated server.

If the WebOffice 10.9 R4 project is called in the browser, the following authorization message appears in the browser:



This must be approved in order to access the map services from the federated server and thus open the WebOffice 10.9 R4 project.



8. Adding the app to the App Launcher

If you want to hide this request message for authorization, proceed as follows:

•In portal, the Web App must be added to the App Launcher

•As a result, members from the portal are no longer prompted for approval in the dialog box when a WebOffice 10.9 R4 project is started.



In your portal, open Organization > Edit Settings > General.

Navigate to the app launcher section on the page and click Add App.





Select the app to your WebOffice application you just created from the Select App drop-down list on the Registered App tab. This list shows only apps currently registered in the portal.





Enter a label for the app and click Next. The App Launcher shows an icon to display the respective app. Set the display to a maximum of four characters or upload a graphic to display the app.

In the apps added here, members are not prompted to enter in the Request Permissions dialog box.

The apps added are displayed to members with access to the app element in the app launcher on the portal page.





With this configuration, the Portal App launcher automatically redirects to the registered WebOffice 10.9 R4 application when a project call is made.

•Click on the app in the app launcher to redirect to the WebOffice 10.9 R4 Landing Page, where the WebOffice 10.9 R4 project can be started

•If the URL for the WebOffice 10.9 R4 project is entered directly in the browser, the WebOffice 10.9 R4 project is entered directly.

•In both cases, the dialog box is suppressed and the approval for the user happens automatically in the background.





Conclusion:

The WebOffice 10.9 R4 project consumes map services hosted on a federated server without a service user and password configured in the  WebOffice 10.9 R4 project configuration for the corresponding map services.

Due to the integrated Windows authentication and the corresponding configurations in Portal for ArcGIS and  WebOffice 10.9 R4 Application Configuration, a user (prerequisite is, that he is a member of the Windows Active Directory and Portal for ArcGIS and has corresponding group permissions) successfully access the  WebOffice 10.9 R4 project without problems regarding license violation and without further login intermediate pages and consume the map services hosted by the portal group in the  WebOffice 10.9 R4 project.
