This custom tool allows the user to display the 3D measurement functionality as a custom tool in the WebOffice core client toolbar. This function was designed so that the standard WebOffice measuring tool for Measure Point, Measure Distance and Measure Area with 3D profile measurement is started automatically after each finished geometry.



icon_cross-reference

For 3D measuring at least an elevation layer hast to be configured. See chapter Height Info Raster Layers ff. for details.

Project requirements:

configured WebOffice 10.9 R3 Measure Tool of the given type

configured 3D Measure possibilities of the given type

Configuration:

Configure the custom tool ToolMeasure3D.jsp from the directory C:\Tomcat\webapps\<WebOffice application>\pub\custom_tools\measure3D as described:



(1) Web Integration - Custom tool

Configure a Web integration - custom tool with the following parameters:

URL of external page:        pub/custom_tools/measure3D/ToolMeasure3D.jsp?type=point|line|polygon|empty

JavaScript function:        callFromWO

Tool icon:                 pub/images/customtool/point3D.png|distance3D.png|area3D.png

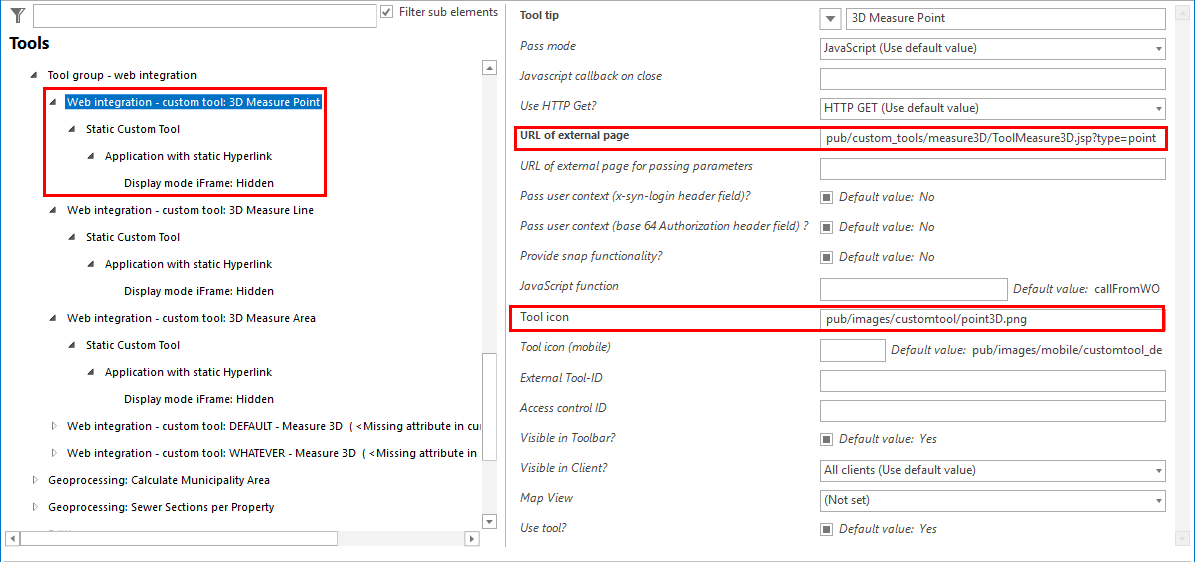

Configuration of a custom tool for 3D profile measuring type point

Configuration of a custom tool for 3D profile measuring type point



(2) Static Custom Tool

Configure a Static Custom Tool.

Keep all other default settings in the Application with static hyperlink sub-node.



(3) Display mode IFrame

Configure for iFrame display mode the window type Hidden.



Usage in WebOffice core client:

Custom tools can be added to the Ribbons in WebOffice core client, depending on the geometry type. After starting the tool and setting the desired geometry, the dialog window with the measurement result data of the 3D profile object opens automatically.

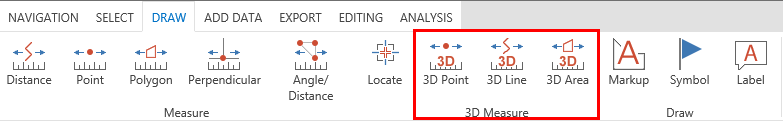

3D measure custom tools in ribbon tool bar of WebOffice core client

3D measure custom tools in ribbon tool bar of WebOffice core client
