Click w to start measuring a line in the WebOffice flex client. Depending on your WebOffice 10.9 SP1 project configuration the tool form will appear differently:

Measure with predefined styles

Measure with style dialogue



Start your drawing by clicking into the map, finish with a double click or by clicking ^. If you click k while drawing, any valid unfinished measurements (any line with at least two vertices) will be finished. Click Clear to remove any existing drawings. Click Send Email to open your Mail client and send a link with the current drawings.



Measure with Predefined Styles

A tool dialog will open that lets you choose the predefined markup style for your drawing. Additionally, decide whether to display measurements in the map or just the drawing.

Note: Predefined markup styles will define the stroke color, fill color, text color, text background color, line width and text size.

Note: VertiGIS recommends to favor this option instead of the style dialogue since it is easier for the user and reduces user interface complexity.

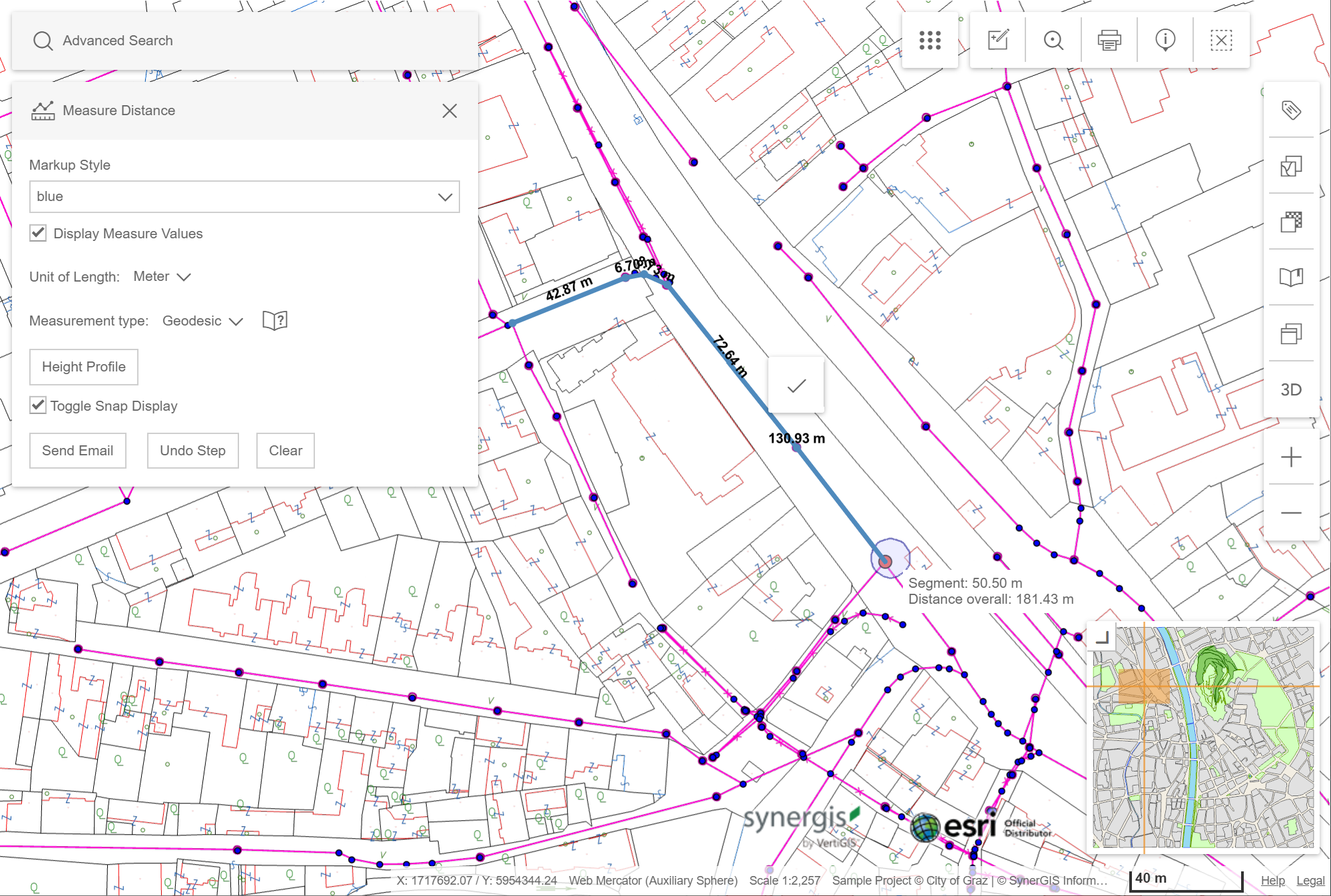

Measure Line with predefined markup style in the WebOffice flex client

Measure Line with predefined markup style in the WebOffice flex client



Menu Item

Description

Markup Style

Set the Markup Style

Display Measure Values

Specify if measurements are displayed in the map

Unit of Length

Set the Unit of Length (Meter, Foot, Inch)

Measurement type

Set the Measurement type (Geodesic, Planar)

Height Profile

Calculates the height profile of the measured distance

Toggle Snap Display

activates / deactivates snapping

Note: In WebOffice flex Client the first snap profile configured in the project configuration will be used.

Send Email

Sends an email of the current map including distances

Undo Step

Takes back the last geometry change of the active measurement

Clear

Deletes all drawings

Measure distance tool form properties



Measure with Style Dialogue

A tool dialog will open that lets you specify Line width and color. Additionally, decide whether to display measurements in the map or just the drawing.

Note: With the style dialogue only default text style without text background can be used.



Measure Line with style dialogue in the WebOffice flex client

Measure Line with style dialogue in the WebOffice flex client



Menu Item

Description

Stroke Color

Adjust the color of the line

Line Width

Set the width of the line

Display Measure Values

Specify if measurements are displayed in the map

Unit of Length

Set the Unit of Length (Meter, Foot, Inch)

Measurement type

Set the Measurement type (Geodesic, Planar)

Height Profile

Calculates the height profile of the measured distance

Toggle Snap Display

activates / deactivates snapping

Note: In WebOffice flex Client the first snap profile configured in the project configuration will be used.

Send Email

Sends an email of the current map including distances

Undo Step

Takes back the last geometry change of the active measurement

Clear

Deletes all drawings

Measure distance tool form properties





During an active measuring process, the vertexes that have already been set can be moved by touching and dragging.



Moving of a vertex of an active measurement in the WebOffice flex

Moving of a vertex of an active measurement in the WebOffice flex



Vertexes can be inserted or deleted during an active measurement. This requires a right click on the desired vertex.

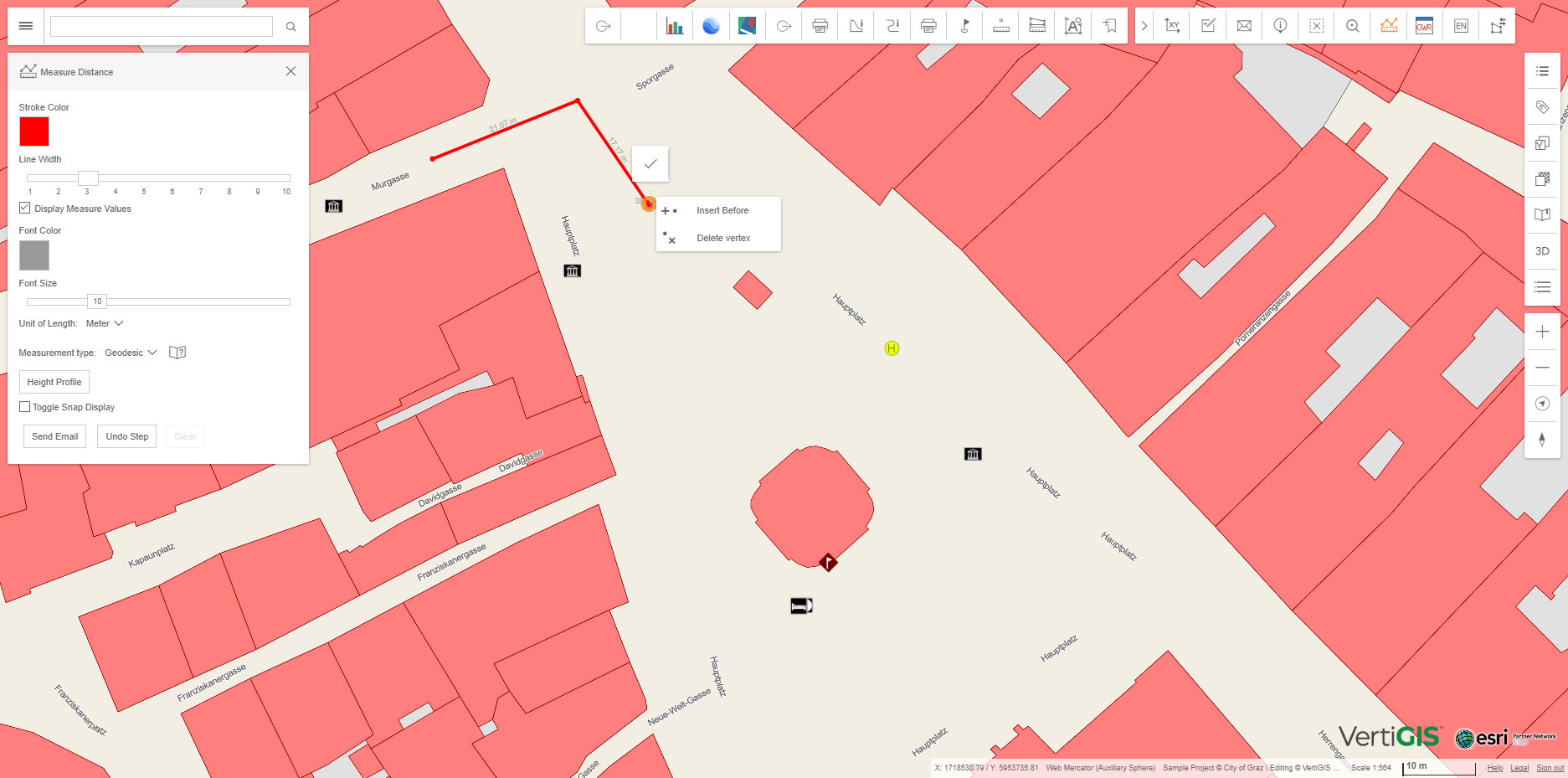

Insert or delete a vertex of an active measurement in the WebOffice flex client

Insert or delete a vertex of an active measurement in the WebOffice flex client



Note: See chapter Measure Distance Determination for information on tool configuration in WebOffice author standalone.

Note: See chapter Markup Style for information on markup style configuration in WebOffice author standalone.
