WebOffice Access Statistics

WebOffice 10 R3 automatically logs access statistic information into a file WebOffice.csv located in <WebOffice application>\WEB-INF\work

The statistics file gets stored on daily basis because a lot of information may get logged.

An additional field "HOUR" for analysis of peak load (system dimensioning) is available.

The access statistics can be displayed in the synadmin page. Statistics can be split up project specific, user specific and request type specific. Logged request types are: Project start, map display, print outputs, result display and distinct user login per day. Access statistics reports and diagrams can be generated directly in the synadmin web page or with table calculation applications.

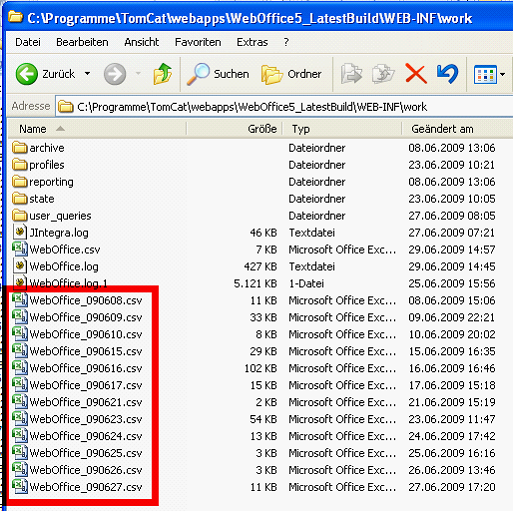

WebOffice.csv - WebOffice 10 R3 statistics file

Using e.g. Microsoft Excel and Pivot charts you can easily and quickly generate statistics diagrams.

Below you find some sample statistics diagrams.

Statistics diagram analyzing hour peak load

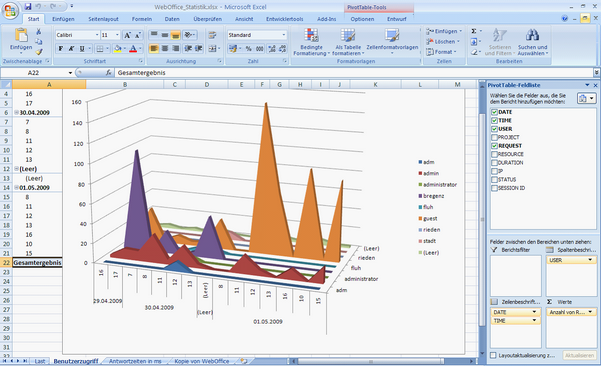

Statistics diagram analyzing access of named users

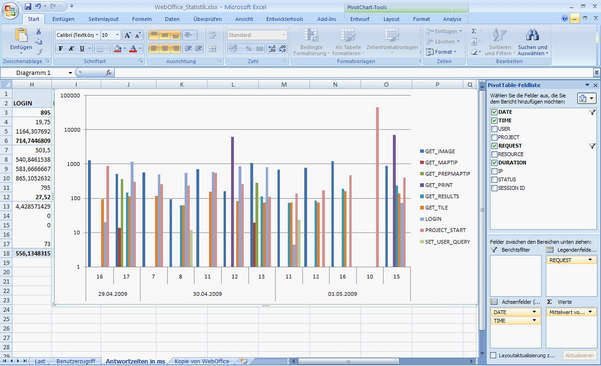

Statistics diagram with average request response time in milliseconds

Furthermore in the column "RESOURCE" of the WebOffice.csv file the selected map view gets logged whenever an image request is performed. If the user changes the table of content and therefore activates the <User Defined> View no entry will be logged until a new pre-defined map view is selected. In this way it is possible to calculate the percentage of pre-defined map views in comparison with user defined views of a project using Microsoft Excel.
