Navigation:  Introduction to WebOffice map widget > WebOffice map widget test container > WebOffice map widget test container Structure > WebOffice map widget Parameters > Tools > Select Area

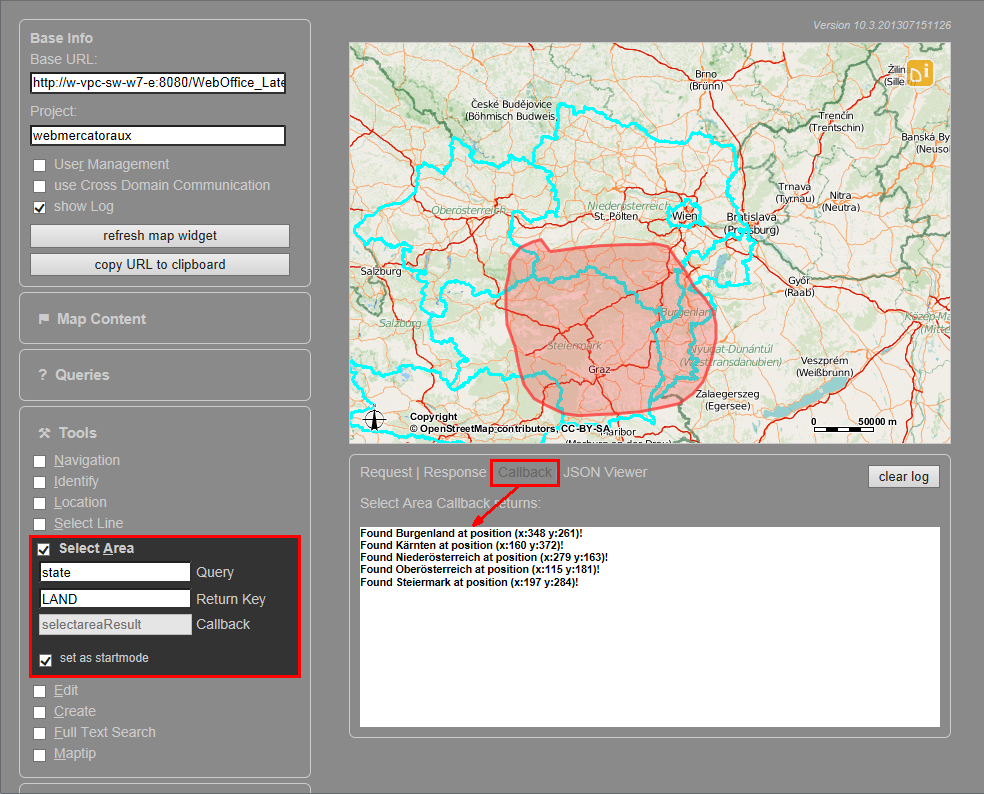

In order to select objects by drawing an area it's necessary to set these parameters:



Query: External Layer ID of the WebOffice 10 R3 query layer.

Return Key: Specifies the field to be returned in the response (it is possible to use more return keys separated by semicolon ';').

Callback Function: Specifies a call back function.



Optional:

set as starmode: checking this option will initially activate the tool after refreshing the map widget.



Note: The callback in the WebOffice map widget test container opens an alert with the return key of the selected object.
