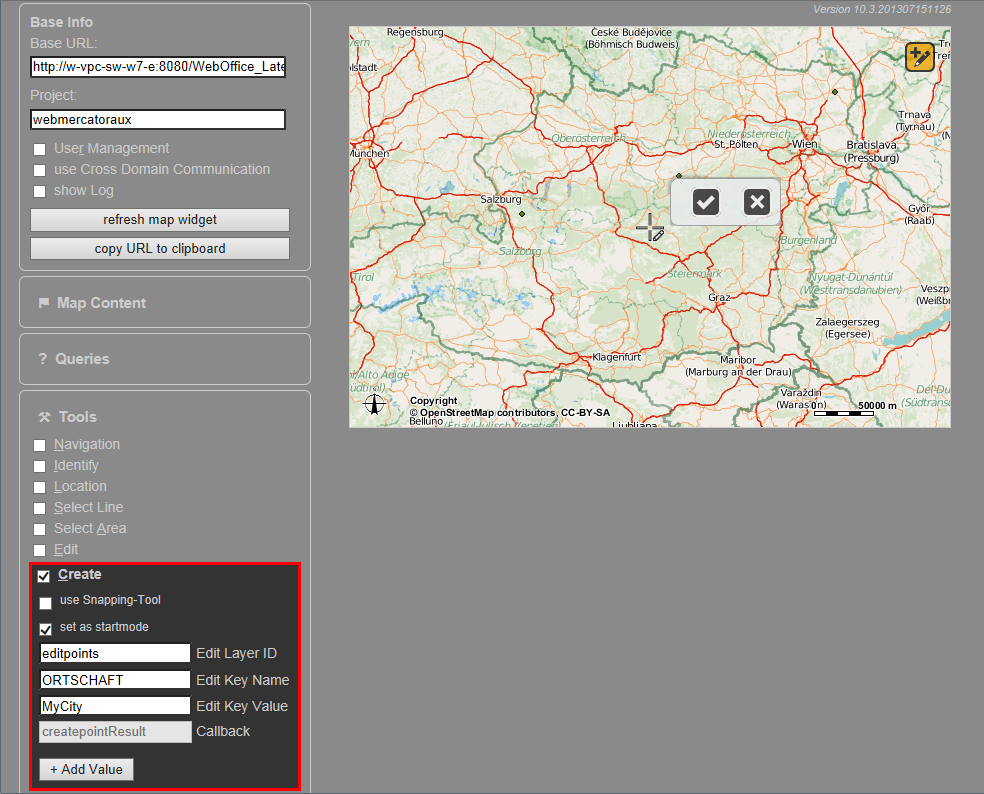

In order to create objects it's necessary to set these parameters:



Callback Function: Specifies a call back function.

Edit Layer ID: External Layer ID of the WebOffice 10 R3 edit layer.

Edit Key Name: Name of the unique key field to be used to store the object key needed for relating the 3rd party database object with the GIS object.

Edit Key Value: Unique object key value that has to be created in the geodatabase.



Optional:

use Snapping-Tool: when checking this option, snapping functionality will be available if configured in the project configuration.

set as starmode: checking this option will initially activate the tool after refreshing the map widget.





Note: When pressing the buttons "Add Value"/"Remove Value" the edit action is extended/reduced with additional parameters.
