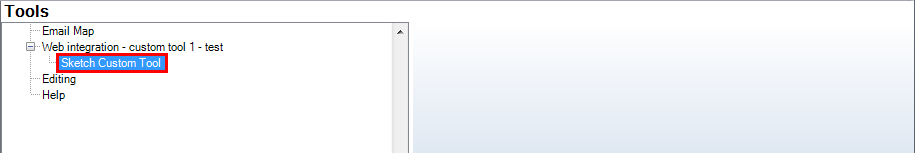

The Sketch Custom Tool provides an interface for client side drawing with/without construction. Functions included in the custom tool are:

•content height:
sets the height for the content of the custom tool

•callback:
sets a javascript function that gets called when the user clicks the commit button in the drawing form

•show/hide tool form

•start draw:
start the drawing functionality

osupports points, lines and polygons

osupports a predefined array of vertices

•draw state:
gets the current state of drawing and returns a javascript object with the following properties:

ogeometrytype (point, line or polygon)

ogeometry (the vertices of the geometry as an array of [x,y] arrays in geo coordinates

opixelgeometry (the vertices of the geometry as an array of [x,y] arrays in pixel coordinates

ofinished (boolean; true signifies the user has finished geometry editing)

oconstruction (boolean; true if the tool is in construction mode)



Note: When using a sketch custom tool, a new tool form will be opened. Other tools cannot be either activated or used.





Note: For more information, please see the lowermost part of the file scriptAPI.txt, located in C:\Tomcat\webapps\<WebOffice Application>\pub\custom_tools.
