Project switching Index |

|
Project switching Index |
|
The Project switching index specifies to which projects a user may switch to from a specific project he is currently using.

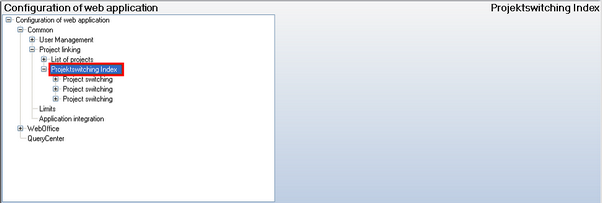

Project switching index configuration
One Project switching node contains a list of Destination project elements. This list specifies all possible switch targets from the project specified in the Project switching node, e.g. from project 'Geonis Server Huttwil Demo' it is possible to switch to projects 'Demonstration project' as well as 'Querycenter Demo'.

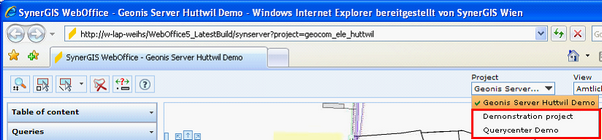

User able to switch to bregenz_combined_views (Demonstration project) or querycenter_demo (QueryCenter Demo) project from geocom_ele_huttwil (GEONIS Server Huttwil Demo) project

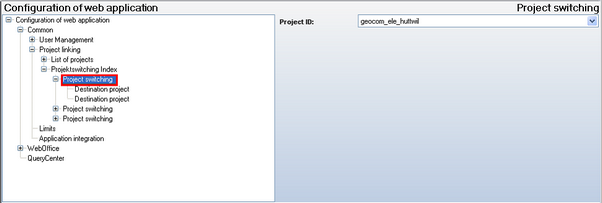

Project switching configuration
Property |
Description |
Project ID |
Unique ID of the project. Note: the Project ID is equal to the project configuration file name (without file extension). |
Project switching configuration
The Destination project element specifies the way how a specific project will be called when switching to it.

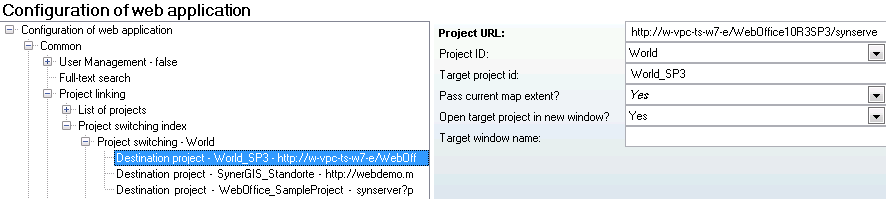

Destination project configuration
Property |
Description |
Project URL |
URL of destination project to be called. Part of the URL may be static parameters, e.g. the following URL's are correct when calling WebOffice projects: http://myWebOfficeServer.com/WebOffice/synserver?project=myproject respectively synserver?project=myproject or http://myWebOfficeServer.com/WebOffice/synserver?project=myproject&layerid=1&keyname=KGGNR&keyvalue= |
Project ID |
Unique project id of the project. Necessary for correct order in user interface. |
Target project id |
Target project id. Necessary only if target project resides in another web application or on another server. |
Pass current map extent? |
Specifies whether to pass the current map extent to the destination project or not. Note: Using this option (Yes) is useful only if both projects (current and destination project) have the same geographic reference system. Note: Makes only sense ('yes' if both projects (current and opened project) have corresponding geo-referencing, as well as the same coordinate system with an official EPSG code. It is thus avoidable to end up in a different map extend by suddenly changing the currently applied map. |
Open target project in new window? |
Specifies whether to open up the target project in a new browser window. Note: Is only admissible, if the project is up and running in another web-application as the project, which is about to be opened. |
Target window name |
Target window name. Used only if the target project gets opened in a new browser window. |
Destination project configuration
