WebOffice Application Configuration > Common

Using the Project linking configuration it is possible to provide functionality in the WebOffice 10 R3 client to switch from one WebOffice 10 R3 project to another on the fly.

The current map extent gets passed, therefore using project switching it is possible to view different aspects of one specific location.

The Project linking configuration is based on the

•List of projects and

•The Project switching Index (the Index specifies for each WebOffice 10 R3 project to which other projects the user is able to switch to).

Project linking configuration

Property

Description

Map choice as tab control?

Provide tab control for switching from one map (project) to another (Yes) or provide drop down list in toolbar (No) of WebOffice client:

•Yes

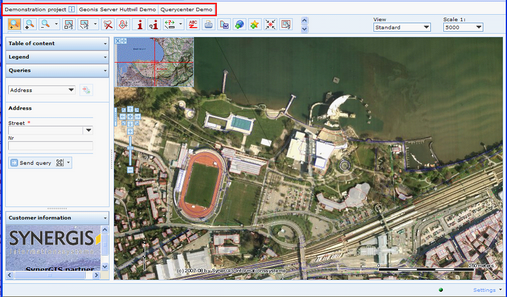

Project switching control - projects displayed as tab riders in WebOffice 10 R3 client

Project switching control – tab riders

•No

Project switching control - projects displayed as list box in WebOffice 10 R3 client

Project switching control – list box

All projects available as switch targets?

Provide all projects of the WebOffice Application in the project choice control (Yes) or only the projects explicitly configured in Project switching index (No).

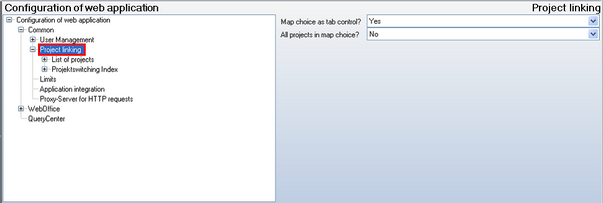

Project linking configuration

Project Linking
