OGC WMS Map Service |

|
OGC WMS Map Service |
|
For using the OGC service in WebOffice the service must be OGC compliant (http://www.opengeospatial.org/compliance).
Note: In case that problems occur when trying to consume an OGC WMS service (WebOffice acts as WMS client), WebOffice will only support OGC WMS services which ware OGC compliant. OGC compliance can be proven by the WMS service provider by successfully running the "OGC TEAM Engine" (Test, Evaluation and Measurement Engine) as part of the "OGC Compliance and Interoperability Testing Initiative (CITE)". See these links for more details:
http://cite.opengeospatial.org/teamengine/
http://cite.opengeospatial.org/test_engine/wms/1.3.0/
When adding a WMS service to a WebOffice 10 R3 project be sure that the projection of the WMS service fits the projection of the main map service.

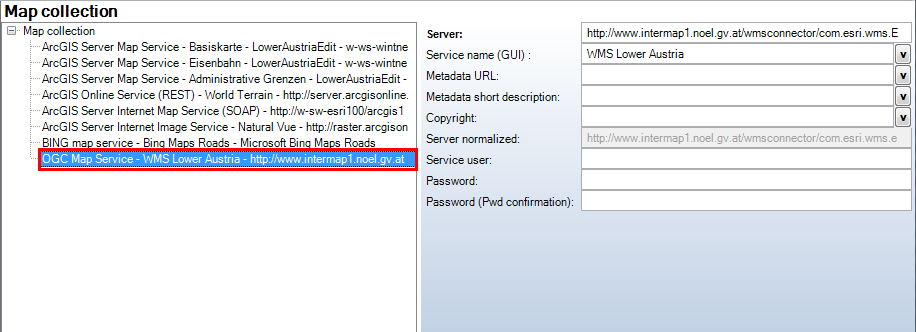

OGC WMS Map Service - WebOffice category
Property |
Description |
Server |
Complete WMS Service URL. |
Service name (GUI) |
Service name of Map Service displayed in the WebOffice client. |
Metadata URL |
Configure a reference to a metadata document (must be available via HTTP) as URL. You may configure the unique Metadata document identifier (UUID) of a Catalog Service (CSW 2.0) here. For this you must configure the SOAP interface of the Catalog Services using Metadata display. |
Metadata short description |
Metadata short description shown as Tooltip. |
Copyright |
Service specific copyright text to be added to the configured project copyright if the map service contributes to the map. This information is only displayed on the print/plot. Note: The service specific copyright will only be displayed if the map element Copyright is configured. Note: Detailed information about the use of this attributes can be found in chapters Print Format and WebOffice ePaper template. |
Server normalized |
The normalized WMS Service URL without any WMS parameters (will be filled automatically). |
Service user |
Username of User accessing ArcGIS Server service. Must be member of "agsusers" ("GIS Server Users") group on ArcGIS Server machine. Hint: If a domain user is used for accessing the service, then the windows domain needs to be provided in the format "domain\user". If no domain is configured then authentification is done locally. |
Password |
Password of User accessing ArcGIS Sever service. |
OGC WMS Map Service - WebOffice category
Note: If your application does not have direct access to the internet, be sure to configure your proxy settings in WebOffice application configuration for proper OGC WMS functionality. See chapter Proxy-Server for HTTP Requests.
