Geolocators |

|
Geolocators |
|
Geolocators provide a simple one line address search comparable to Google or Microsoft Bing address searches. One line inputs (e.g. Technologiestrasse 10, 1120 Vienna) will be geocoded and shown in the map.
Address search using free available geolocator services (e.g. Esri World geolocator) gives the opportunity to provide address search with high accuracy without the need of own address data.
Important Note: SynerGIS Informationssysteme GmbH implements the support for Esri World Geolocator to the best of one's knowledge. Nonetheless, SynerGIS Informationssysteme GmbH does not have any influence on possible changes by Esri and, therefore, can not take any warranty for this function.
Geolocators - Category General
Geolocators Configuration
Properties |
Description |
Display Name (GUI) |
Name of the table in the user interface. |
Use Full extent limits? |
Specifies if the project full extent shall be used as spatial filter in the Geolocator query. Using the full extent as spatial filter is recommended to optimize the precision of the Geolocator query results. |
Geographic Transformation Code/String |
Geographic transformation code from WGS84 to the map coordinate system. Can be reviewed in ArcGIS_Desktop_Installation_Folder\Documentation\geographic_transformations.pdf. If a custom transformation is used, the transformation string with parameters can be used. Copy and paste from the .gtf file is recommended. Hint: If a geotransformation is already defined on the dataframe of the main map service then the geotansformation configured here will not be applied. |
Country |
Specifies on which country is an address to be searched. The country is identified with 3 letters according to the "ISO 3166 3-letter" encoding ('DEU' for germany, 'AUT' for Austria, 'CHE' for Switzerland). For further country codes, see e.g. http://en.wikipedia.org/wiki/ISO_3166-1_alpha-3 Note: Use the "|" symbol for separating several countries (e.g.AUT|DEU|CHE) The default value "*" allows a search on all countries. |
Reference Scale |
Scale to be used for displaying search results (especially single hits). If "0" is provided, the value defined on project level ('Project') is used. |
Dynamic selection display? |
Specifies if map selection display gets rendered using dynamic animated selection symbols. Note: Dynamic selection display only works if a Dynamic Selection is configured on project level. |
Geolocator configuration
Depending on the WebOffice 10 R3 geolocator configuration, a query will appear in the search form and is either listed in a selected category or the group "Other Queries".

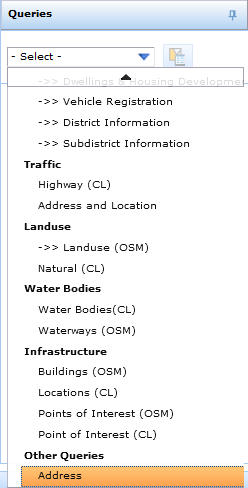

Geolocator- Query in the category 'Other Queries'
Geolocator - Queries in WebOffice 10 R3 HTML Client - Query Form

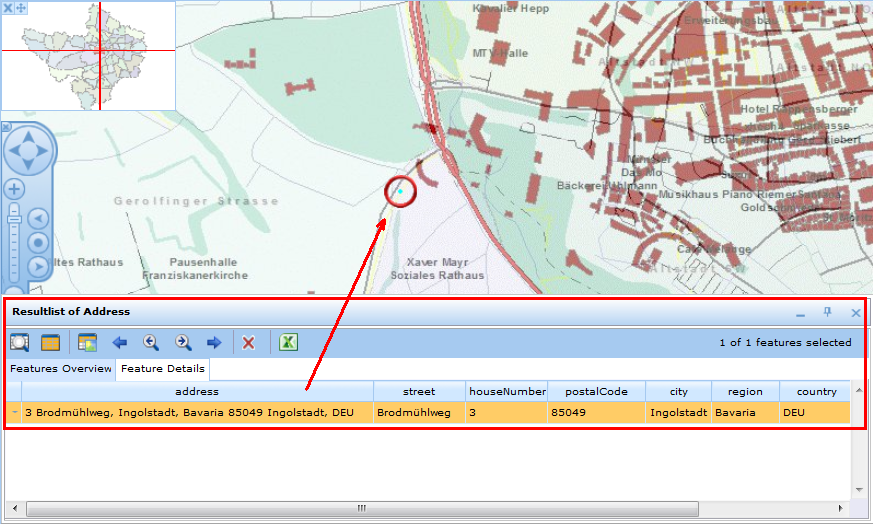

A Geolocator query result in WebOffice html client
Note: The Geolocator represents the results in WGS84. If you realize some mismatch/offset in the Geolocator result in WebOffice 10 R3 client, you will have to define the proper transformation to WGS84 on the main map service in ArcMap. After that restart the map service.
Configuration of the transformation to the Geolocator on the main map service
