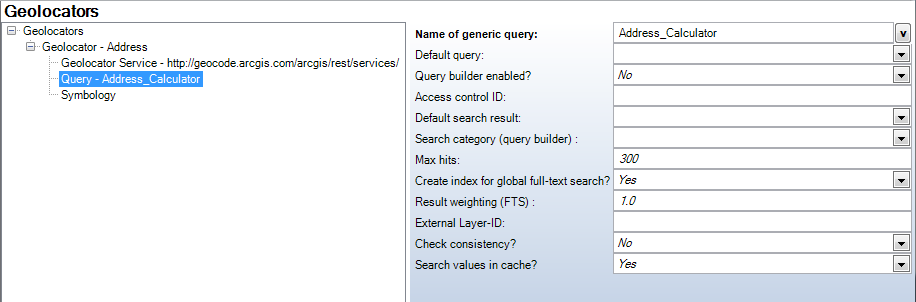

Define Query

Properties

Description

Name of generic query

Name of generic query

Default - Query

Default search Provides the option to do a define a default-search-query.

Query builder enabled?

Provide query builder?

Defines, whether the query-generator is provided, that the user can generate case by case queries.

Note: All search field must be indexed (database index)!

Access control ID

Access control ID needed for access control based on User Managment module.

If an ID is configured here (e.g. 'QUERYBUILDER_OWNER') and WebOffice User Mmanagement module is used then the user role is checked whether it provides the necessary application right or not (according to the example the application right would be 'QUERYBUILDER_OWNER'). If the necessary application right is not available then the query builder will not be available in WebOffice 10 R3 for the corresponding layer/table.

Default search result

Default search result for query builder

Search category

Display group if Query builder is enabled

Note: Neglecting to define a specific Search category in WebOffice 10 R3 will put the actual Query into the "Other Queries" category.

Max hits

Set the maximum count of hits shown in the query result.

Create index for global full-text search?

Specifies whether this search configruation shall be considered for the creation of the global full-text search index.

Hint: Full-text search is currently available for Layers, but not for Tables.

Result weighting (FTS)

Defines the weighting of features of this layer, when they appear as results of a full-text search.

The result-score that is calculated for each result of a full-text search is multiplied with the weighting factor.Specifies whether this search configuration shall be considered for the creation of the full-text search index.

Compared to features of other layers, features with a high weighting will therefore be displayed higher up in the result list, while features with a low weighting are placed near the end of the result list.

Only values > 0.0 are allowed for the weighting factor. The default value is 1.0 (no weighting). Examples of meaningful values are 0.5, 1.0, 2.5 or 5.0.

Hint: Full-text search is currently available for Layers, but not for Tables.

External Layer-ID

Layer ID used to relate external search calls to the map service layer.

Check consistency?

Specifies whether to check the count of passed object keys with the count of found object keys when using external parameterized calls to WebOffice (URL Call Interface). If the two counts are not conform, the passed but not found object keys will be listed in a notification in the client.

Search values in cache?

Could the lists of possible values be cached? If 'false', the search form value lists are to be built for each user session. If 'true', then WebOffice 10 R3 can cache the values of all search fields, which do not depend on user values (not in any hierarchy).
