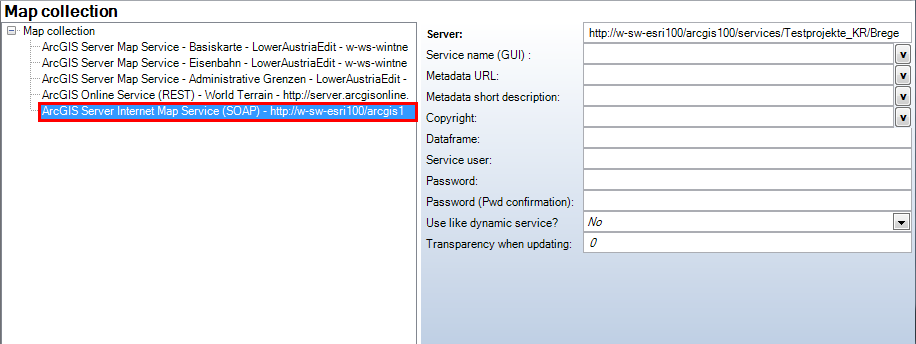

ArcGIS Server Internet Service

Property

Description

Server

Host name of the ArcGIS Server.

Service name (GUI)

Service name of Map Service displayed in the WebOffice client.

Metadata URL

Configure a reference to a metadata document (must be available via HTTP) as URL.

You may configure the unique metadata document identifier (UUID) of a Catalog Service (CSW 2.0) here. For this you must configure the SOAP interface of the Catalog Services using metadata display.

Metadata short description

Metadata short description shown as Tooltip.

Copyright

Service specific copyright text to be added to the configured project copyright if the map service contributes to the map. This information is only displayed on the print/plot.

Note: The service specific copyright will only be displayed if the map element Copyright is configured.

Note: Detailed information about the use of this attributes can be found in chapters Print Format and WebOffice ePaper template.

Dataframe

Specifies the data frame to be used.

Note: This property is optional especially for using services based on a mxd with one data frame only. If using an ArcGIS Server Internet Service based on a mxd with multiple data frames, the data frame has to be configured explicitly or the default data frame will be used. This may cause unexpected behaviour especially in a MSD/MXD hybrid scenario. See chapter Support for Map Hybrid Mode – linking MXD and MSD service fo togetherr details.

Service user

Username of user accessing the ArcGIS Server service.

Note: This property is optional.

Password

Password of user accessing the ArcGIS Server Internet service.

Note: This property is optional.

Use like dynamic service?

Specify if the service (no matter whether dynamic or cached) is used like a dynamic map service.

Hints:

-It may be useful to ignore the tiling scheme of a map service in order to use scales  that are not included in the tiling scheme.

-Gets ignored for GeoProcessing (GP) Services.

Transparency when updating

Specifies the transparency for the tiles of the 'old' map image if the map tiles of the 'old' map image get replaced by the map tiles of the 'new' map image in the context of a map update operation.

If the map cache contains transparent tiles then the value '85' is recommended, in all other cases the default setting ('0') is appropriate.
