ArcGIS for Server Service (REST) |

|
ArcGIS for Server Service (REST) |
|
With an ArcGIS for Server service (REST) local ArcGIS for Server services (on premise) can be embedded into the project. Currently WebOffice 10 R3 only supports the display of these services.
Note: WebOffice 10 R3 as well supports ArcGIS for Server 10 (REST) services with token based protection. The configuration operates with user login and password as any common ArcGIS for Server service (REST). After the login the token will be dissolved automatically and the service will be displayed.

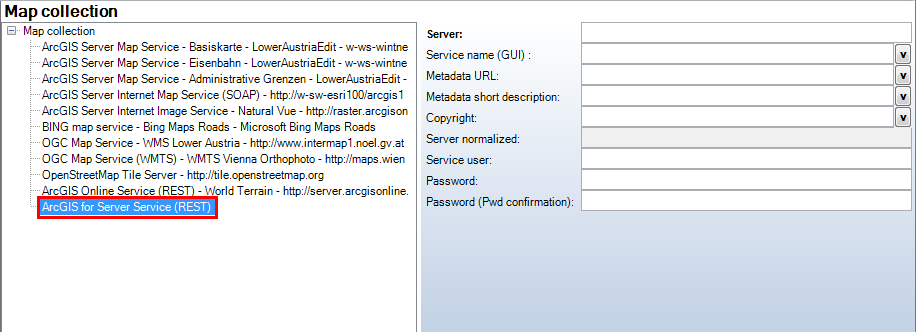

ArcGIS for Server service (REST) - map collection
Property |
Description |
Server |
Specifies URL of ArcGIS for Server map service (on premise). Example: http://>myserver</ArcGIS/rest/services/>myService</MapServer |
Service name (GUI) |
Service name of Map Service displayed in the GUI |
Metadata URL |
Configure a reference to a metadata document (must be available via HTTP) as URL. You may configure the unique Metadata document identifier (UUID) of a Catalog Service (CSW 2.0) here. For this you must configure the SOAP interface of the Catalog Services using "Metadata display". |
Metadata short description |
Allows a short description of the medadata. Word wrap can be accomplished with a "\n". |
Copyright |
Service specific copyright text to be added to the configured project copyright if the map service contributes to the map. This information is only displayed on the print/plot. Note: The service specific copyright will only be displayed if the map element Copyright is configured. Note: Detailed information about the use of this attributes can be found in chapters Print Format and WebOffice ePaper template. |
Server normalized |
Normalized server URL |
Service user |
User login for accessing the ArcGIS for Server service (ArcGIS service user). |
Password |
Password of user accessing ArcGIS for Server service |
Password (Pwd confirmation) |
Password confirmation |
Note: The indication of the MapServer Endpoint URL has to be provided. The operations Map, Query and Data must be activated.
