ArcGIS Server Vector Tile Service

Since WebOffice 10.9 R5 it is possible to integrate Vector Tile Services into the clients WebOffice core and WebOffice flex and into the map widget. In contrast to cached Map Services Vector Tile Services are not based on raster technology, but on vectors. Therefore they are calculated faster and need less disk space.

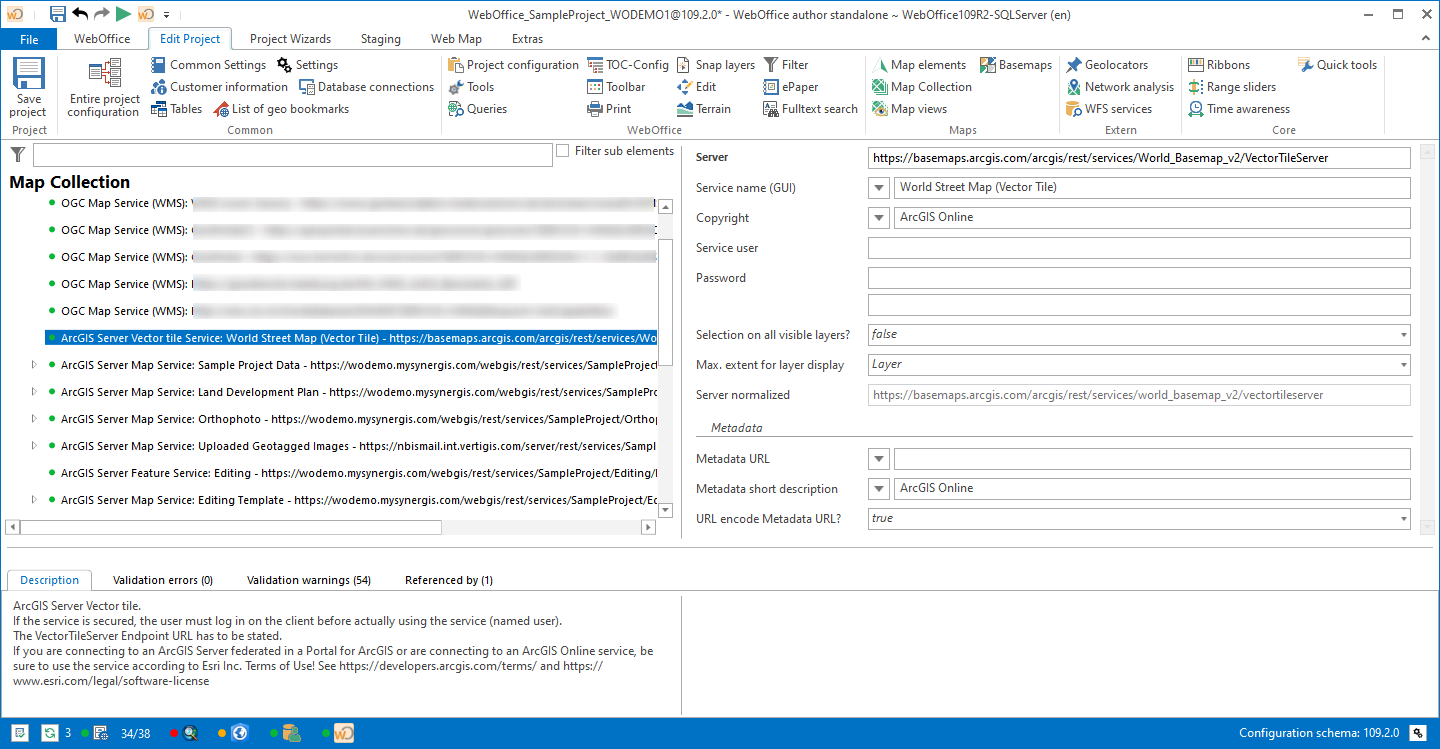

ArcGIS Vector Tile Service

ArcGIS Vector Tile Service



You can either use your own Vector Tile Services or the ESRI Vector Basemaps in WebOffice 10.9 R5.



icon_cross-reference

You will find an introduction for publishing Vector Tile Services in ArcGIS online help.

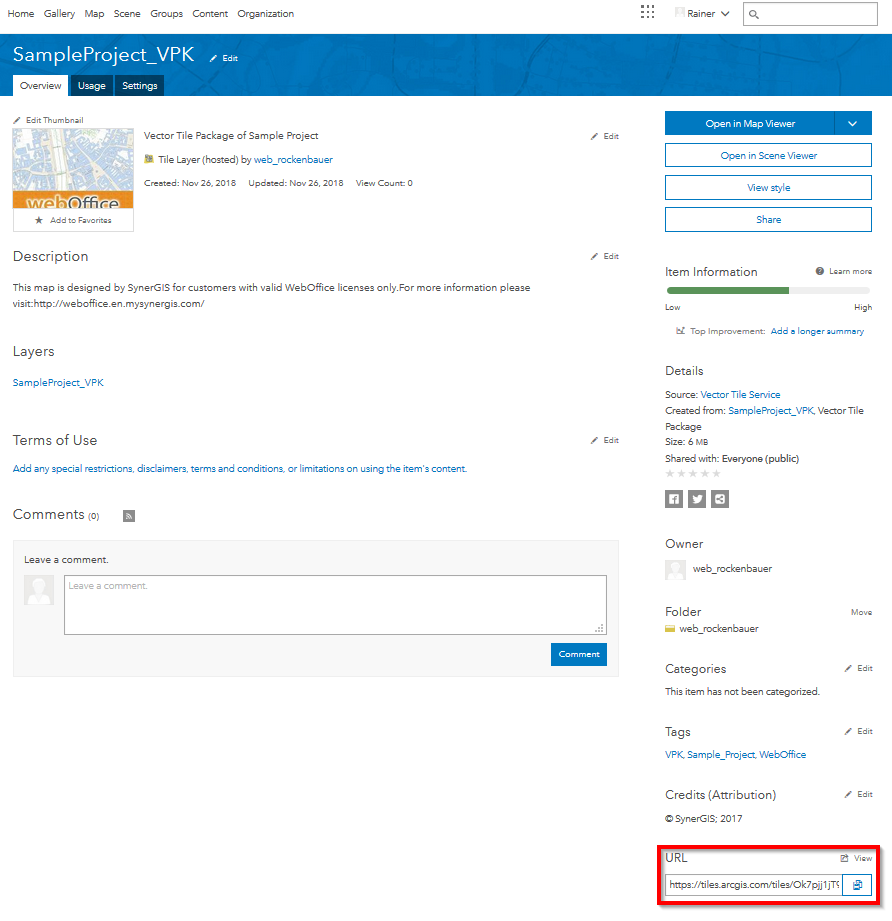

First of all open the distinct Vector Tile Service and copy the URL (see Screenshot below).



icon_comment

The ESRI Vector Basemaps (e.g. World Street Map, World Topographic Map, Light Gray Canvas) are no vector tile services of their own but styles on the service World_Basemap_v2. Enter the URL of the vector tile service as server and hand over the desired style with the property Style URL.



woas_ArcGIS_Vector_Tile_Service_2

Usage of the URL for WebOffice



Property

Description

Server



ArcGIS Server vector tile service.

If the service is secured, the user must log on to the client before using the service (named user).

The Vector Tile Server Endpoint URL must be specified.

icon_comment

If you connect to an ArcGIS server or use an ArcGIS online service, make sure that you do not violate Esri Inc. rights of use!

Service name (GUI)

Service name of Map Service displayed in the GUI

Metadata URL

Configure a reference to a meta data document (must be available via HTTP) as URL.

icon_comment

You may configure the unique Metadata document identifier (UUID) of a Catalog Service (CSW 2.0) here. In this case you must configure the SOAP interface of the Catalog Services in Metadata Display.

Metadata short description

Provide a short description for the meta data (line breaks with \n).

Copyright

Service related copyright information that is displayed on the client and on the print.

icon_comment

The service-related copyright information is only displayed if the map element Copyright is configured.

icon_cross-reference

For more information on how to use this attribute, see Template (File Name) and WebOffice ePaper Template (File Name).

Style URL

URL of a custom style definition (root.json) for the vector tile service. Without this setting the default style of the service is used (…/VectorTileServer/resources/styles/root.json).

An absolute http(s) URL is allowed, e.g. the style resource of a portal item (https://www.arcgis.com/sharing/rest/content/items/[item id]/resources/styles/root.json), or a path relative to the service URL. Credentials or tokens must not be part of the URL, an invalid URL is ignored with a warning in the log.

icon_comment

To use the same service with several styles (e.g. one style per basemap view, or a label style on top of imagery), create one service definition per style with the same server URL.

icon_comment

Secured services: the token of the service is used for the style too if the style is located on the same host or in ArcGIS Online. A style on a federated ArcGIS Enterprise portal is requested without token.

The style applies to the clients WebOffice core and WebOffice flex, to the map widget and to printing with VertiGIS Printing.

Service user

User login for accessing the ArcGIS Online service (ArcGIS service user).

Password

Password of user accessing ArcGIS Online service.

Selection on all visible layers?

When using the option All visible Layers in the Client all Layers visible in the current scale and set to visible are taken into consideration.

A Layer configuration is not required, the ArcMap Layer Properties get used instead (Layer Name, visible Fields, Field order).

Max. extent for layer display

With query layers, the map area cannot be defined manually because it is always calculated automatically. Furthermore, the map area can also change dynamically by capturing additional features afterwards.

By selecting the value Service or Project it can be guaranteed that in WebOffice also newly captured objects are displayed outside the previous display area.

Server normalized

Normalized server URL
