Layers
Use the Layers wizard to create, modify or delete layers. Use this wizard especially then, if you want to remove a layer from your WebOffice usermanagement database that is outdated. Layers usually are created automatically in the UMDB when synchronizing the base data via WebOffice author standalone.
|
•When deleting a layer from the WebOffice usermanagement database, all group permissions for this layer will also be deleted automatically. •Before creating a new layer in the UMDB manually, you have to create the according Service first. •Before creating a new layer in the UMDB manually, you have to create the according Feature Class first. |

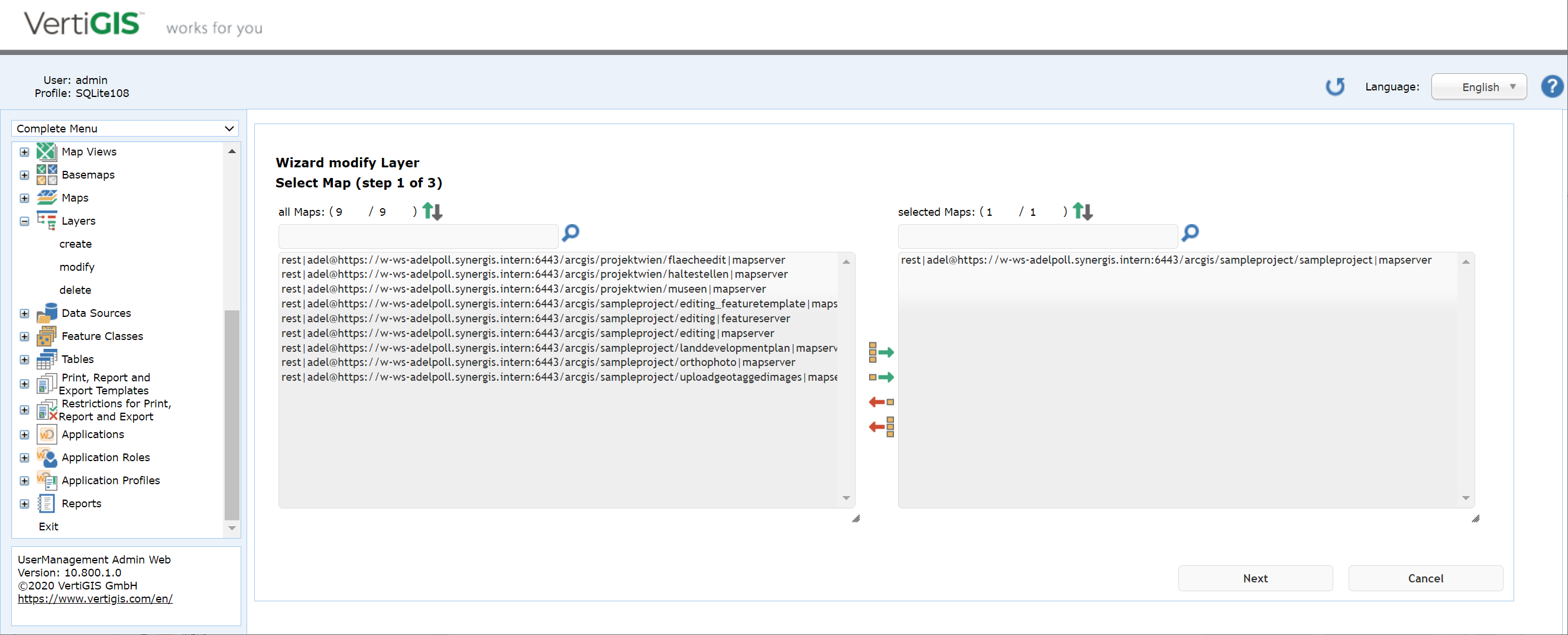

When modifying an existing layer, first select a service.
Modify a layer - step 1

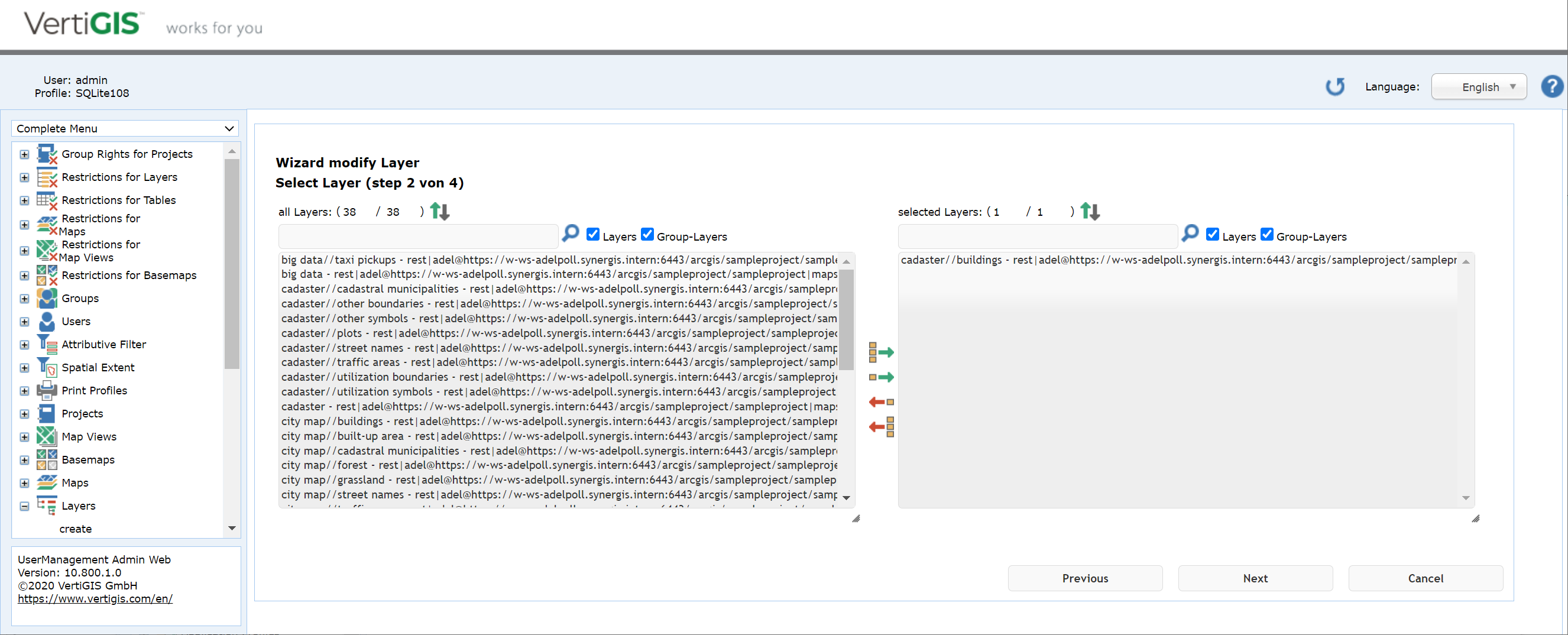

In the next step select the layer of interest by moving it to the right side.
Modify a layer - step 2

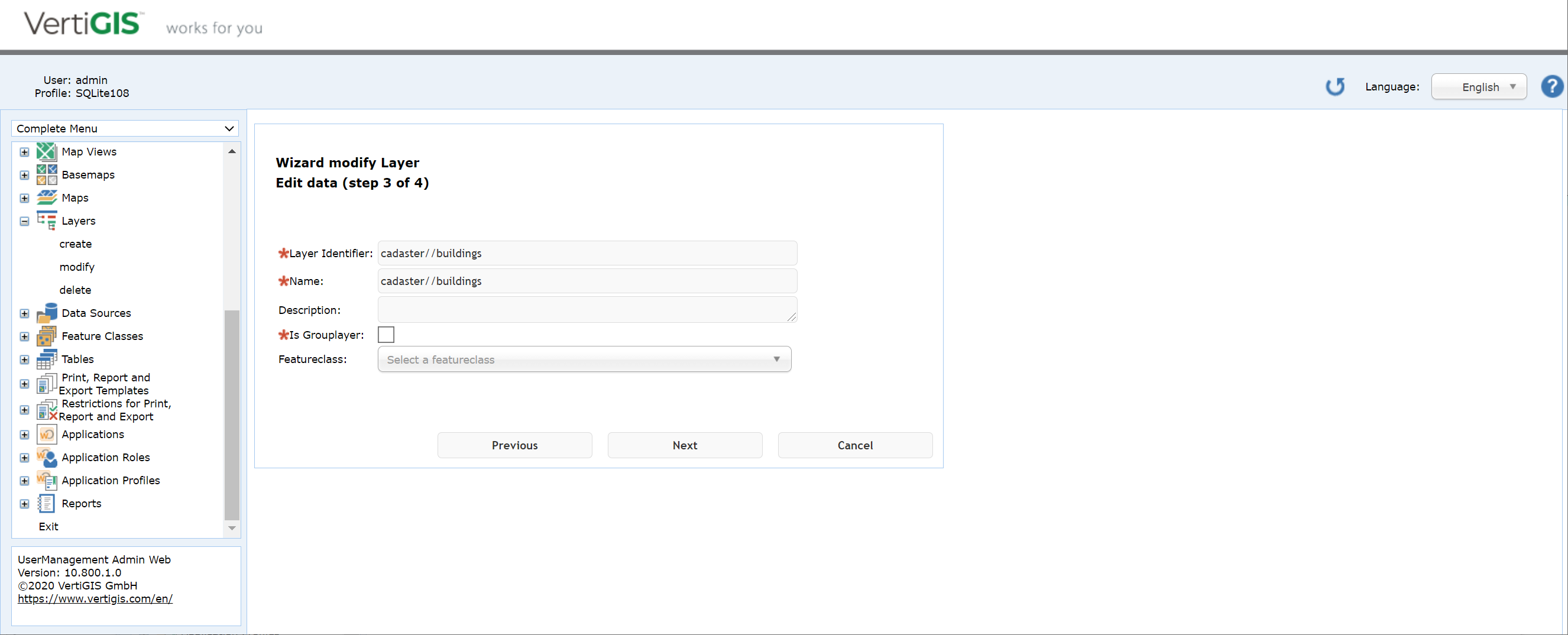

Step three shows you several details of the layer information saved in the UMDB.
Modify a layer - step 3
Property |
Description |
||
|---|---|---|---|
Index |
Index of the layer.
|
||
Name |
Name of the layer.
|
||
Description |
Optionally, provide some description for this layer. |
||
Feature Class |
Feature class reference for this layer. |
Layer properties

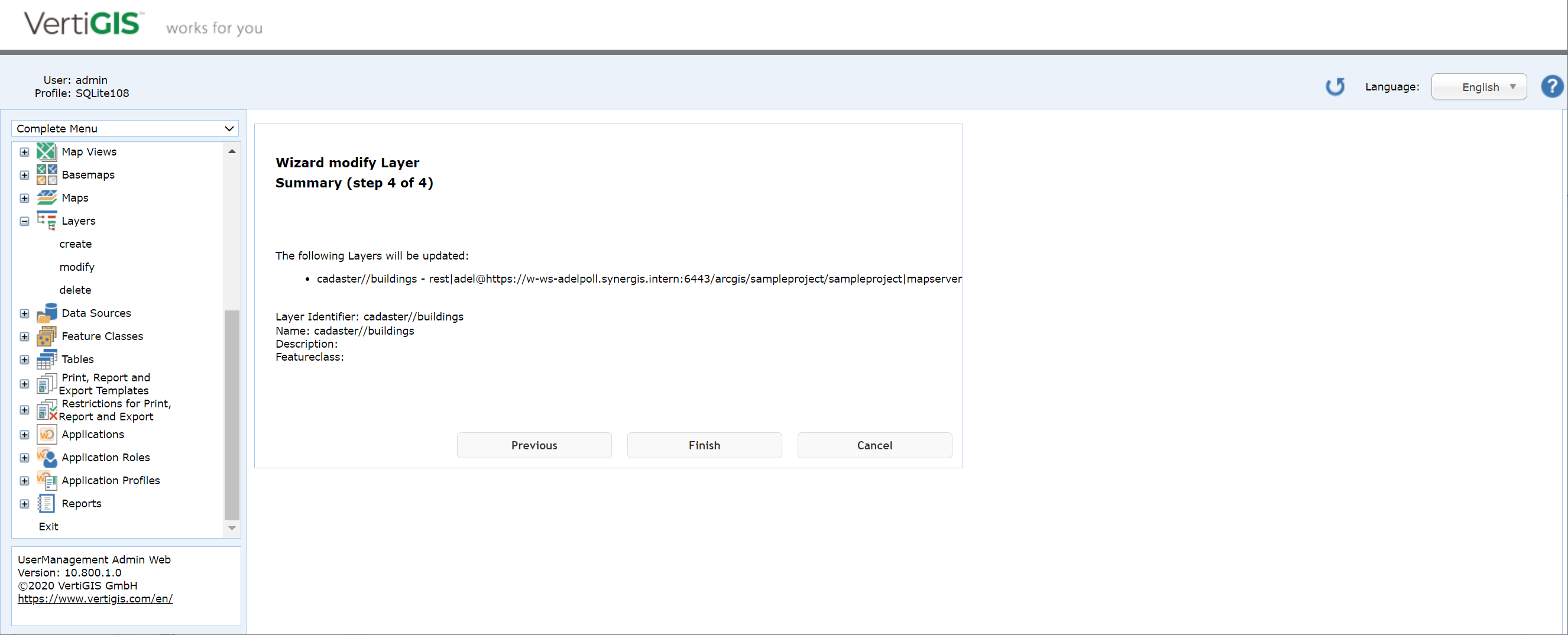

In the final step you get a resume. Click the Finish button to store your edits.
Modify a layer - step 4
