Feature Classes
Use the Feature Classes wizard to create, modify or delete feature class references. Use this wizard especially then, if you want to remove a feature class from your WebOffice usermanagement database that is outdated. Feature classes usually are created automatically in the UMDB when synchronizing the base data via WebOffice author standalone.
|
•A feature class that you want to delete must not be referenced in any Layer in the WebOffice usermanagement database. •Before creating a new feature class in the UMDB manually, you have to create the according Data Source first. |
When modifying an existing feature class, first select one.

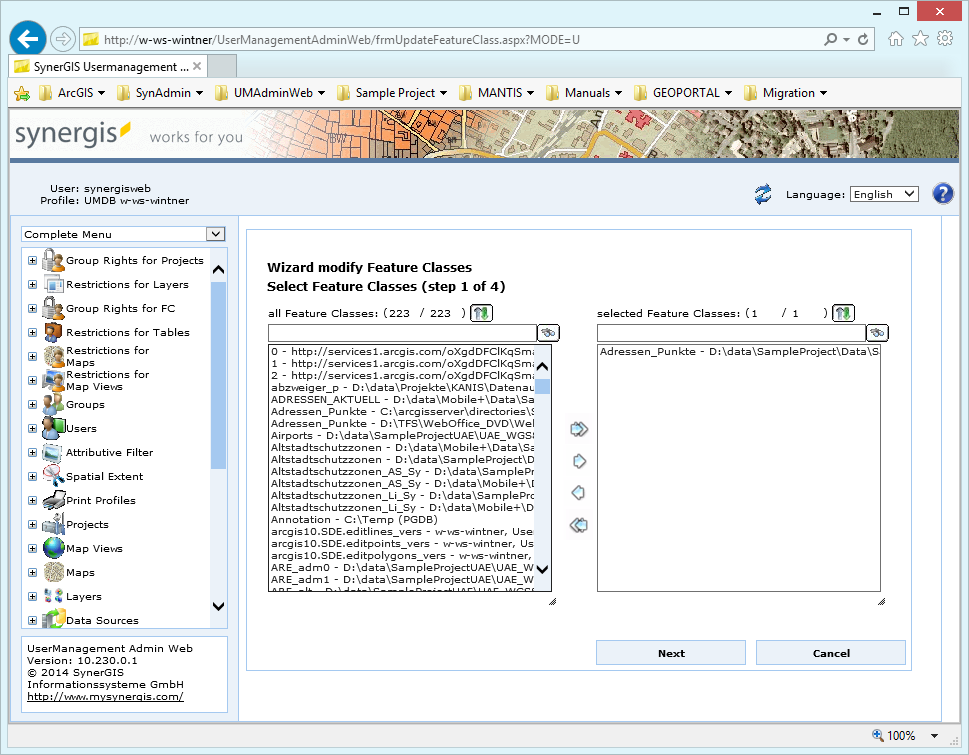

Modify a feature class - step 1
In the next step you will get details about the selected feature class.

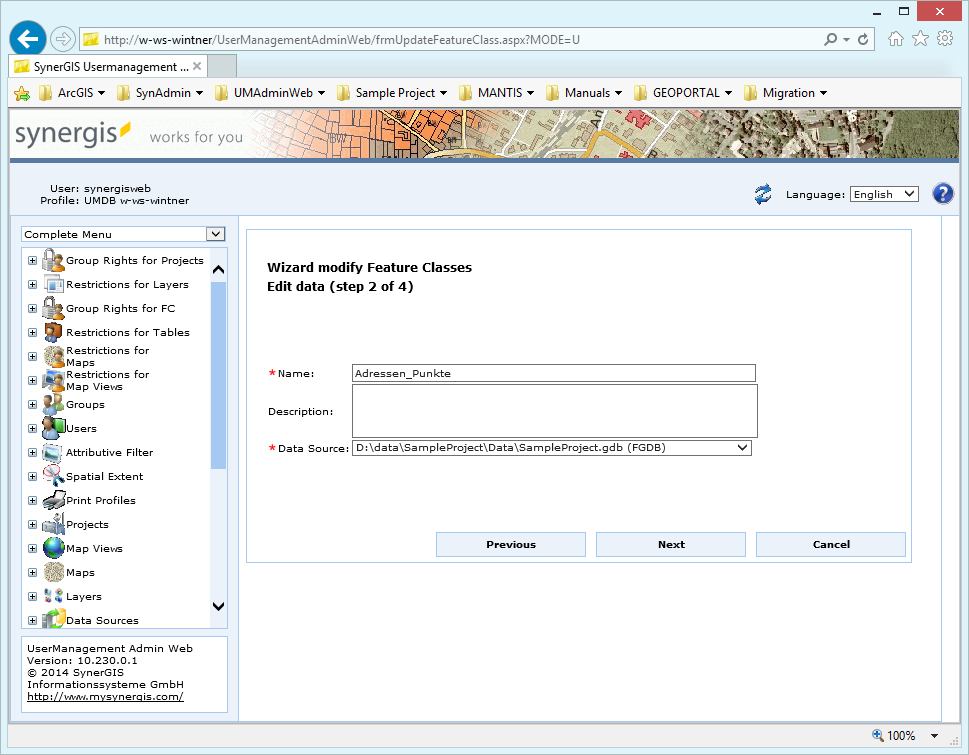

Modify a feature class - step 2
Property |
Description |
||
|---|---|---|---|
Name |
Specify the name of the feature class.
|
||
Description |
Optionally, provide some description for this feature class. |
||
Data Source |
Select a valid data source.
|
Feature Class properties
Within the third step, it is possible to define attribute fields of the feature class.
|
This step is optional, the feature class may be created without specific attribute fields being added. |

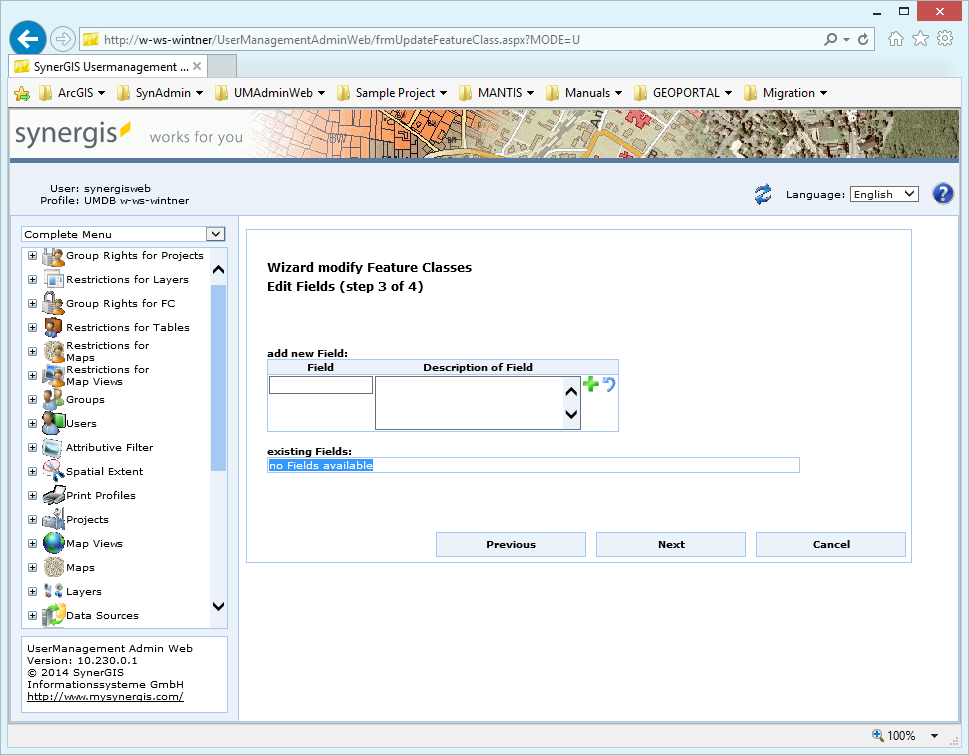

Modify a feature class - step 3
In the final step you get a resume. Click the Finish button to store your edits.
Modify a feature class - step 3
