WebOffice author standalone > Edit project Menu > WebOffice Category > Tools > Tool Group Measure/Markup

The Measure Point tool is configured by default to provide measure functionality. Optionally, you can enable 3D measuring if your project includes height info raster layers.

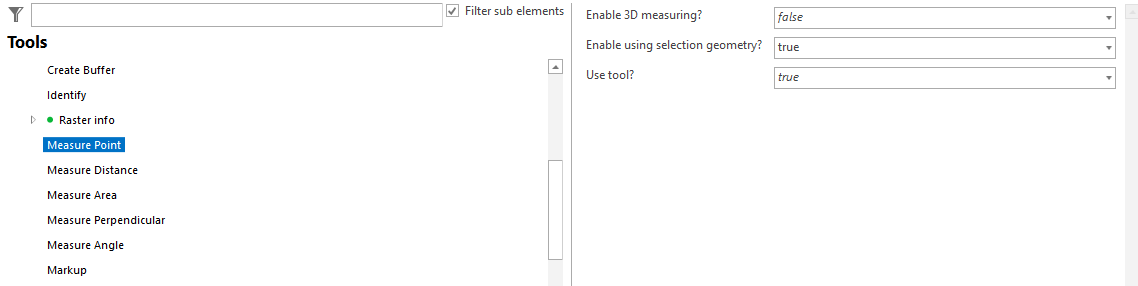

Measure - Point tool configuration

Property	Description
Enable 3D measuring	3D measuring based up on raster data. Note: For 3D measuring at least an elevation layer hast to be configured. See chapter Height Info Raster Layers ff. for details.
Enable using selection geometry?	Allows use of selection geometry as input for measurements.
Use tool?	Specify whether this tool is available in the WebOffice 10.8 SP2 clients (true) or not (false).

Measure - Point tool properties

Note: See chapter Snap Layers for details about the configuration of snap layers in WebOffice author standalone.

Note: See chapter Measure Units for details about the configuration of length and area units in WebOffice author standalone.

Note: See chapter Draw and Measure Point for the tool appearance in the WebOffice core client.
