Map Views

Previous pageReturn to chapter overviewNext page

A map that consists of up to 200 layers is quite complex and hard to understand for casual non expert users. A map collection increases complexity even more. Therefore WebOffice 10.8 SP2 provides the concept of predefined map views which makes switching between different visibility settings of layers, layer groups and services much easier for the user.

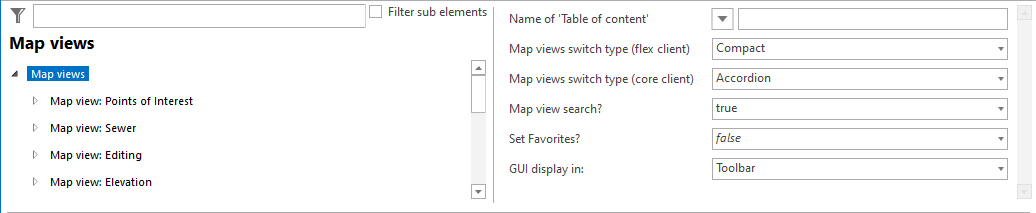

Map views configuration

Map views configuration







Properties

Description

Name of 'Table of content'

The default map view displayed by WebOffice when the project is opened, is specified in the 'TOC of Map collection'. For being able to later on switch back to this map view, a name shown in the map views list box of the WebOffice Client should be configured. Useful names are e.g. 'Standard' or 'Initial View'.

Map views switch type
(flex client)

Map views switch type

-Compact: Choose this option if you have more than 5 map views,

-Expandable: Choose this option if you have less or equal than 5 map views.

Note: The expandable option is not supported by the WebOffice flex client.

-Preview: Choose this option if you want to display the preview of the map views.

Map views switch type
(core client)

Map views switch type

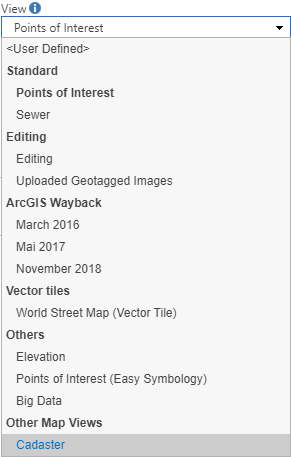

-Value list: Map views will be shown in a select list. This option is recommended, if you have few map views configured.

core_function_project_center10

WebOffice core - Value List

-Accordion: Map views will be shown in an accordion list. This option is recommended, if you have a lot of map views configured.

WebOffice core - Accordion

WebOffice core - Accordion

Map view search?

Specifies if map views can be searched.

Set Favorites?

Specifies if favorites of repmodels can be set. The favorites are then stored in the user profile.

GUI display in:

Defines where the control for switching the map view is located in the user interface.

Map views properties





Note: See also the chapter Map Views and Basemaps for a better understanding the concept of map views.
