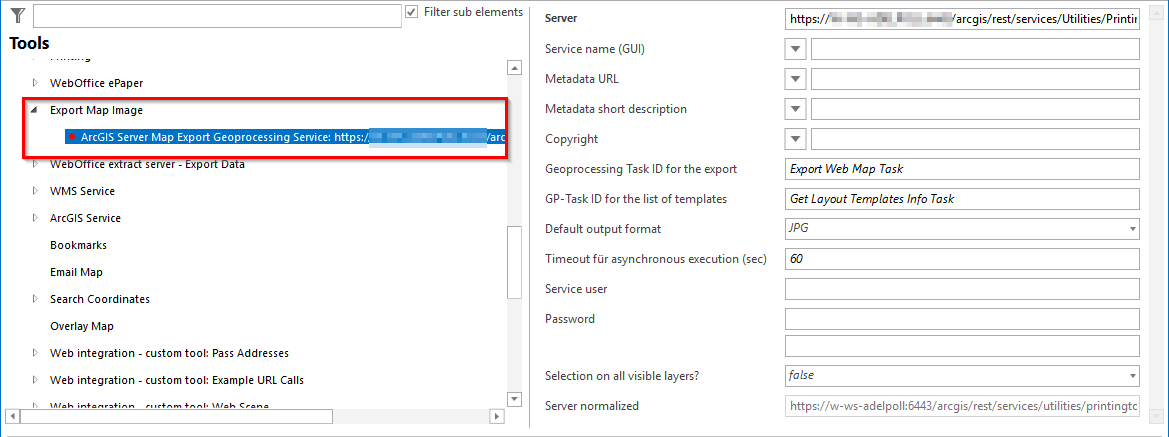

ArcGIS Server Map Export Geoprocessing Service

Property

Description

Server

Specifies URL of ArcGIS Server Mapservice (ArcGIS Online or on premise).

Example ArcGIS Online Map Service:

https://services.arcgisonline.com/arcgis/rest/services/World_Imagery/MapServer

If you are connecting to an ArcGIS Server federated in a Portal for ArcGIS or are connecting to an ArcGIS Online service, be sure to use the service according to Esri Inc. Terms of Use! See https://developers.arcgis.com/terms/ and https://www.esri.com/legal/software-license

Example ArcGIS Server Map Service:

http://<myserver.domain.com><port>/arcgis/rest/services/<myService>/MapServer

Note: A map service may only be used once in a map collection. I.e. you have to configure a single map service as overview map for example.

Service name (GUI)

Service name of Map Service displayed in the GUI.

Metadata URL

Configure a reference to a metadata document (htm, html, pdf, jpg, etc.) as a URL.

The document must be available via HTTP, but may be given as a local (e.g. "pub/images/logo_vertigis.gif") or a global (e.g. "https://www.vertigis.com") address.

Metadata short description

Metadata short description

Copyright

Service specific copyright

Geoprocessing Task ID for the export

ID (Name) of Task to be executed for the export.

Note: In the standard installation, this task is called "Export Web Map Task" and it can be found in the Service "Utilities/PrintingTools"

GP-Task ID for the list of templates

ID (Name) of Task to be executed for the list of templates.

Note: In the standard installation, this task is called "Get Layout Templates Info Task" and it can be found in the Service "Utilities/PrintingTools"

Default output format

Default image format for exports.

Timeout for asynchronous execution (sec)

Specifies how long the client waits for results of the asynchronous executed task. If the task was executed successfully during this time, the result will be processed immediately if possible.

If the maximum time has elapsed, the client will be available again. With setting the value to "0" the client will not wait for any results.

Service user

User login for accessing the ArcGIS Server service (ArcGIS service user).

If you are connecting to an ArcGIS Server federated in a Portal for ArcGIS or are connecting to an ArcGIS Online service, be sure to use the service according to Esri Inc. Terms of Use! See https://developers.arcgis.com/terms/ and https://www.esri.com/legal/software-license

Selection on all visible layers?

When using the option 'All visible Layers' in the Client all Layers visible in the current scale and set to visible are taken into consideration.

A Layer configuration is not required, the ArcMap Layer Properties get used instead (Layer Name, visible Fields, Field order). Applies to identify and selection tools.
