After VertiGIS Printing has been set up correctly and published as a Geoprocessing Service, it can be configured in a WebOffice 10.8 SP2 project. The REST URL to the corresponding GP service (Web Tool) must be specified on the 'ESRI Printing' tool.



The reference refers to the folder 'VertiGIS_Utilities' with the respective Tasks for:

VertiGIS PrintTask

Get Layout Templates Info Task

GetIndexInfo

Get Product Info Task



Note:

The naming of the folder structures and task names, etc. must be strictly observed. For more details see the previously mentioned steps of this HowTo. If the service is secured, a service user and password must be specified.

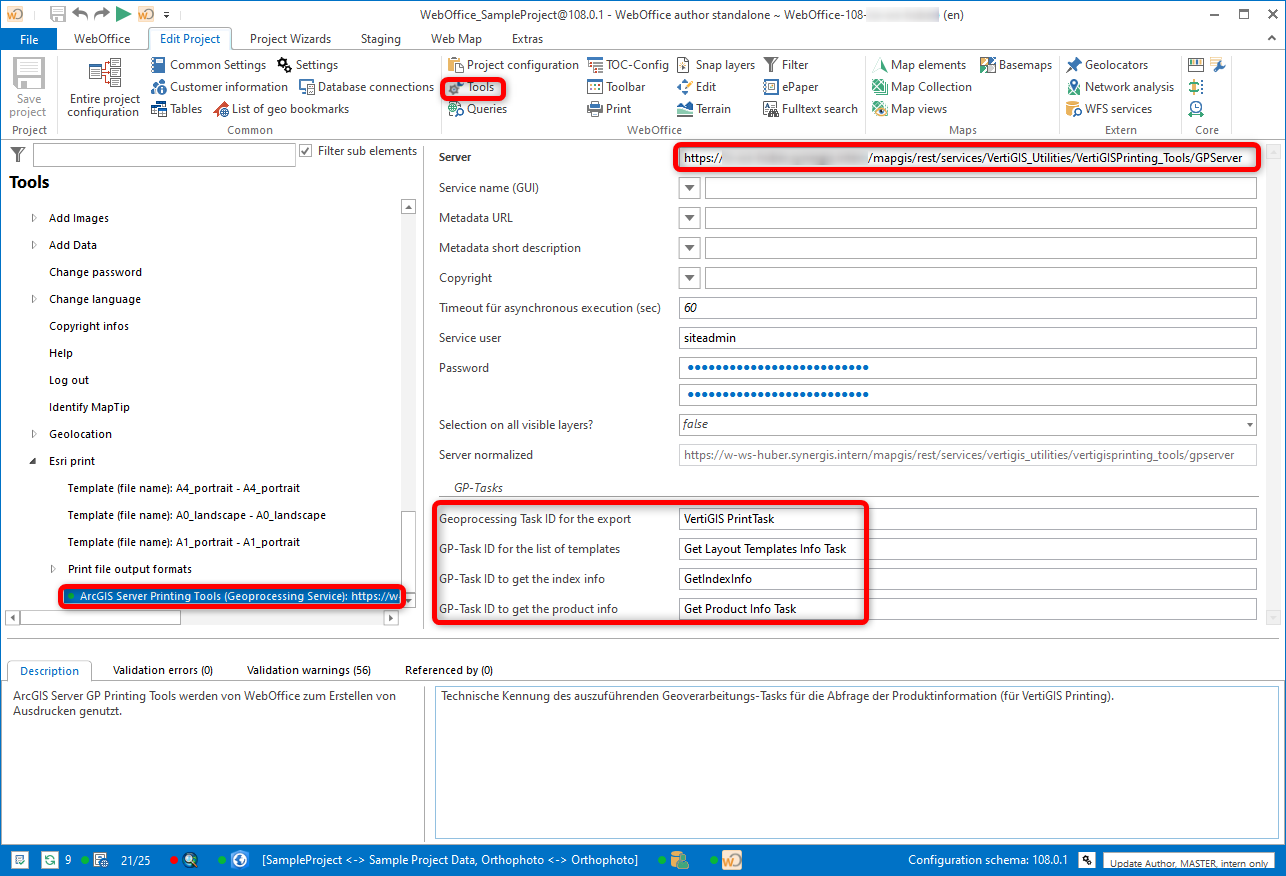

wox_install12



Subsequently, one or more templates can be configured.



Note:

If no Template (filename) is configured, all available print templates will be shown in the client. More details for the configuration of the print templates can be found here: Printing Layout Designer.
